7 Steps Standard Ultrasonic Thickness Calibration Block CS 2-3-5-8-12-20-25mm for NDT Testing

7 Steps Standard Ultrasonic Thickness Calibration Block CS 2-3-5-8-12-20-25mm for NDT Testing
7 Steps Standard Ultrasonic Thickness Calibration Block CS 2-3-5-8-12-20-25mm for NDT Testing 7 Steps Standard Ultrasonic Thickness Calibration Block CS 2-3-5-8-12-20-25mm for NDT Testing

Large Image :  7 Steps Standard Ultrasonic Thickness Calibration Block CS 2-3-5-8-12-20-25mm for NDT Testing

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Carton packing box
Delivery Time: 3-5 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 5sets/Month
Contact Now

7 Steps Standard Ultrasonic Thickness Calibration Block CS 2-3-5-8-12-20-25mm for NDT Testing

Description
Step Thickness Value: 2-3-5-8-12-20-25mm Material: CS(Stainless Steel / Aluminum / Duplex Stainless Steel, Etc.)
Highlight:

Ultrasonic thickness calibration block

,

NDT testing calibration block

,

Standard thickness calibration block 2-25mm

7 Steps Standard Ultrasonic Thickness Calibration Block CS 2-3-5-8-12-20-25mm for NDT Testing


Basic Specification Parameters
Step thickness specifications: 2mm, 3mm, 5mm, 8mm, 12mm, 20mm, 25mm
Model: 7 Step Thickness Block
Material: 1018 carbon steel
Applicable sound waves: Conventional ultrasonic longitudinal waves, compatible with common ultrasonic frequencies ranging from 2MHz to 5MHz
Thickness tolerance: ±0.05mm (industrial calibration grade)
Surface treatment: Precision grinding processing, smooth surface, no rust, no oxide layer
Structural form: Integrated whole forging molding, multi-step integrated design
Acoustic characteristics: Standard sound speed of steel 5900m/s, low sound attenuation, strong detection stability


Step thickness value

 2-3-5-8-12-20-25mm

MATERIAL

1018 Carbon steel(Stainless steel / aluminum / duplex stainless steel, etc.)

Thickness tolerance

±0.05mm

Linear accuracy

≤ ±0.1mm

Applicable temperature range

-10℃ ~ +60℃

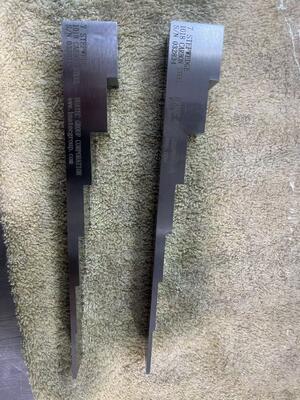

7 Steps Standard Ultrasonic Thickness Calibration Block CS 2-3-5-8-12-20-25mm for NDT Testing 0

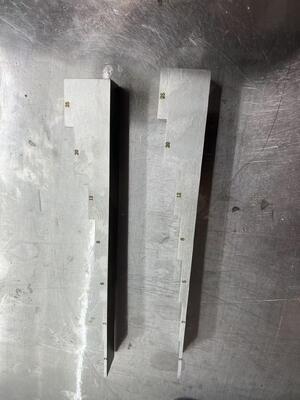

7 Steps Standard Ultrasonic Thickness Calibration Block CS 2-3-5-8-12-20-25mm for NDT Testing 1

7 Steps Standard Ultrasonic Thickness Calibration Block CS 2-3-5-8-12-20-25mm for NDT Testing 2
