HBRV-187.5DX Digital Brinell Rockwell Vickers Hardness Tester

HBRV-187.5DX Digital Brinell Rockwell Vickers Hardness Tester
HBRV-187.5DX Digital Brinell Rockwell Vickers Hardness Tester HBRV-187.5DX Digital Brinell Rockwell Vickers Hardness Tester

Large Image :  HBRV-187.5DX Digital Brinell Rockwell Vickers Hardness Tester

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: HBRV-187.5DX
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Carton packing box
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 10sets/Month
Contact Now

HBRV-187.5DX Digital Brinell Rockwell Vickers Hardness Tester

Description
Power Supply: AC220+5%,50~60Hz Test Force: 5～187.5kgf
Hardness Measurement: Brinell：8～650HBW Rockwell：20～100HR Vickers：8～2900HV Head - Wall Distance: 200mm
Max Height Of Specimen: Rockwell：220mm、 Brinell Vickers：150mm Magnification Of Microscope: Brinell：37.5X、 Vickers：75X
Vickers Scale Hardness Resolution: 0.1HV
Highlight:

touch screen hardness tester

,

digital Brinell Rockwell tester

,

universal hardness tester with warranty

HBRV-187.5DX Touch Screen Senior Digital Brinell, Rockwell, Vickers Universal Hardness Tester
Product Specifications
Attribute Value
Power supply AC220+5%,50~60Hz
Test force 5～187.5kgf
Hardness measurement Brinell：8～650HBW Rockwell：20～100HR Vickers：8～2900HV
Head - wall distance 200mm
Max height of specimen Rockwell：220mm、 Brinell Vickers：150mm
Magnification of microscope Brinell：37.5X、 Vickers：75X
Vickers scale Hardness resolution 0.1HV
Product Description

The HBRV-187.5DX is a senior digital hardness tester featuring Brinell, Rockwell, and Vickers test methods with touch screen operation.

Main Features:
  • Equipped with Brinell, Rockwell, and Vickers test methods
  • Electronic and electric loading with high precision sensor and unique closed-loop control system
  • Eyepiece structure with digital encoder for measuring D1, D2 values with LCD display
  • Automatic hardness scale selection with corresponding test parameter adjustment
  • Automatic test force correction and compensation for improved accuracy
  • Calibration capability using standard hardness blocks or length scales
  • Test force correction via standard dynamometer
  • Hardness value conversion between Brinell, Rockwell, and Vickers scales
  • User-friendly touch screen interface
  • Automatic hardness conversion according to national standard/ASTM
  • Password protection for parameter settings and test information
  • Measurement data export to U-disk in EXCEL format
Technical Specifications
Model HBRV--187.5DX
Test force 5～187.5kgf
Brinell scale HBW1/5,HBW2.5/62.5,HBW1/10,HBW2.5/15.625,HBW1/30,HBW2.5/31.25,HBW2.5/62.5,HBW10/100,HBW5/125,HBW2.5/187.5 (select 10 scales)
Hardness resolution 0.1HBW
Rockwell scale HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK,HRL,HRM,HRP,HRR,HRS,HRV
Hardness resolution 0.1HR
Vickers scale HV5,HV10,HV20,HV30,HV40,HV50,HV60,HV80,HV100,HV120 (select 10 scales)
Hardness resolution 0.1HV
Objective 2.5X,5X(10X,20X optional)
Magnification of microscope Brinell:37.5X, Vickers:75X
Hardness measurement Brinell:8～650HBW Rockwell:20～100HR Vickers:8～2900HV
Data output LCD display,U disk
Max height of specimen Rockwell:220mm, Brinell Vickers:150mm
Head - wall distance 200mm
Dimension 560*260*800mm
Weight About 70Kg
Power AC220V _+_ 5%,50-60Hz
Standard Accessories
Item Quantity Item Quantity
Lighting (internal lighting, external lighting) 1 Test block(HRC high,HRC low HRB ,HBW2.5/187.5,HV30) 5
Rockwell,Vickers diamond indenter Each 1 Ball indenter(φ1.5875,2.5,5mm) 3
Eyepiece(DHV-15X) 1 Objective(2.5X,5X) 2
Sliding test table 1 Large, medium, V-test sets Each 1
U memory disk, touch pen Each 1 Fuse 2A 2
Level 1 Regulating screw 4
Power cable 1 Dust bag 1
Certificate, warranty card 1 Manual 1

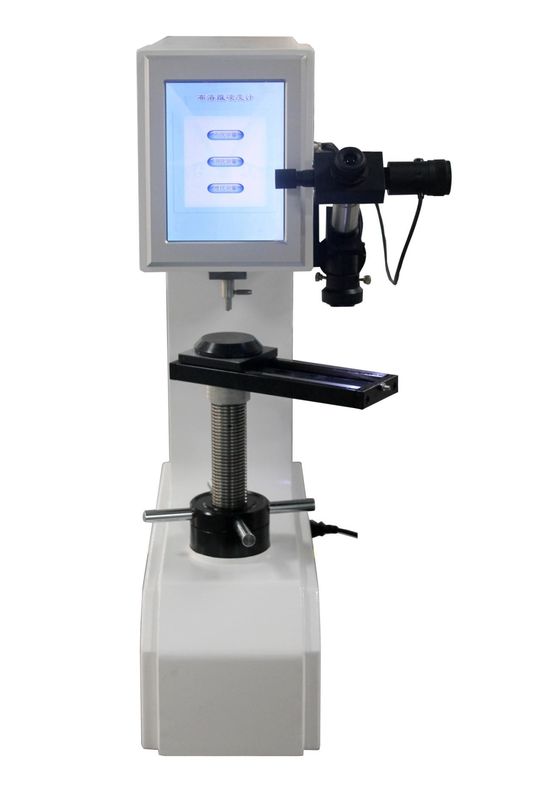

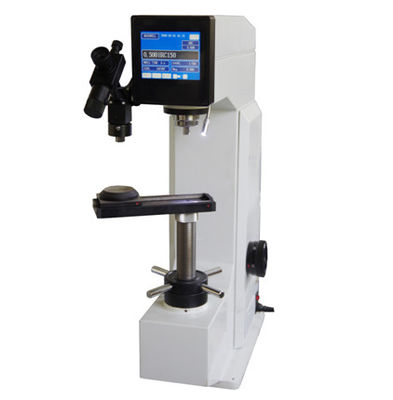

Product Images
HBRV-187.5DX Digital Brinell Rockwell Vickers Hardness Tester 0 HBRV-187.5DX Digital Brinell Rockwell Vickers Hardness Tester 1 HBRV-187.5DX Digital Brinell Rockwell Vickers Hardness Tester 2 HBRV-187.5DX Digital Brinell Rockwell Vickers Hardness Tester 3
