Product Details:
|
| Color:: | Black | Irradiance Spotlight Type: | >10000uw/cm2 |
|---|---|---|---|
| Astigmic Type: | >2500uw/cm2 | Light Source Life:: | 30000H |
| Weight :: | 360g Only Including Batteries | Outline Dimension:: | 47mm*225mm |
| High Light: | magnetic particle inspection equipment,mpi testing machine |
||

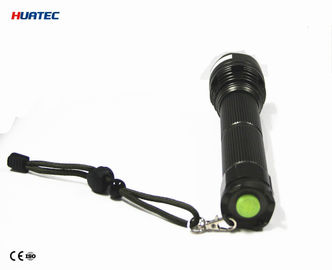

DG-3W Ultraviolet LED UV Torch Light
UV LIGHT Magnetic Strength Meter Lightweight Portable
Handheld Ultraviolet Lamp Magnetic Flaw Detector Testing LED UV Torch Light DG-3W
Characteristic
Irradiance Spotlight type>10000uw/cm2
Astigmic type>2500uw/cm2
Light source life: 30000H
Feature:
3AV power saving of power consumption
30000H life expectancy of light source
Imported light source UVLED
0 UV-B contained
Build in battery,no wiring outside
three minute delay(power saving)//constand lighting,mode can be switched
UV irradiance intensity distribution diagram (380mm)
Technical Parameters
| Itme | parameter |
| Style | torch style |
|
UV(Light)-FLUX Indoor temperature 25℃ |
Spotlight type>10000uw/cm2 Astigmic type>2500uw/cm2 |
| FLUX error | 0-40℃ ±10% |
| Grading feature | Centre grading |
| Power supply | AC100-240V 50/60Hz |
| power | UV LED-3VA |
| wave length |
Indoor temperature 25℃ 365nm±3nm(UVA) |
| Outline dimension | 47mm*225mm |
| battery voltage | 3.7V*2 |
| Charging time | 2-3H |
| Battery cumulative time | UV LED about 8H |
Standard accessories:
1.Main unit 1pc
2.Carrying case 1pc
3.Calibration certificate 1pc
4.Manual 1pc
