Digital Eddy Current Conductivity Meter for conductivity testing of Al and Cu
Products of this series are the first generation of Digital Conductivity Meter designed with eddy phase. These products may be used for distinguishing, grading, and state detecting for non-ferromagnetic metal. These are commonly used in industries of machinery, electric power, aviation, aerospace, nuke, military, etc.
|Working Freq.||60KHz, sine wave||60KHz, sine wave|
|Measurement range for conductivity||7.76 %IACS to 112 %IACS, or 4.5 MS/m to 65 MS/m or resistivity 0.01538 to 0.22222Ω•mm²/m||0.51 %IACS to 112 %IACS, or 0.3 MS/m to 65 MS/m, or resistivity 0.015388 to3.33333Ω•mm²/m|
0.1%IACS(51%IACS to 112%IACS )
|Measuring precision||±1% ( temp range, 0℃ to 40℃) ±0.5%( temp range, 20℃)|
|Lift-off effect||Probe compensation 0.5mm|
|Temp. measurement||0℃ to +50℃(precision 0.5℃)|
|Function of auto compensation||Measured result of conductivity, adjusting to value at temp. 20℃ automatically|
|Normal working environment||Temp. 0℃ to +50℃; relative humidity, 0 to 95%|
|Display||Liquid crystal big screen, back-light designed, multiple items of important parameter displayed simultaneously.|
|Power supply||Equipped with a lithium ion battery of 2200mA/h|
|Probes||One probe of diameter ¢14mm, working freq. 60KHz, for instrument model 103A and 103A1; Probes are interchangeable.|
|Reading memory||Storage for 4000 groups of measured data files.|
|Communication with PC machine||RS 232 interface|
|Weight of host machine||0.5kg (including batteries)|
|Dimension of host machine||220mmx95mmx55mm|
|Shell of instrument||Engineering plastic, high impact-resistance, waterproof shell for this instrument|
|Package and protection||High impact-resistance, waterproof, portable box made of aluminum alloy; inside of it there is instrument, probes, communication cable, operation manual, conductivity blocks, recharger, instrument stand, U- disk (or optical disk).|
|Accessories||2 pieces of standard conductivity blocks for model HEC-103A1; 3 pieces of standard conductivity blocks for model HEC-103A. You can purchase more blocks if you wish.|
Main unit 1pc, probe 14mm diameter 60KHz, communication cable, operation manual, calibration certificate, recharger, instrument stand, U- disk (or optical disk),

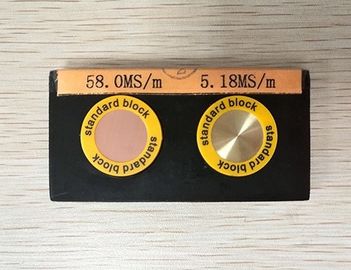

2 pieces of standard conductivity blocks for model HEC-103A1; 3 pieces of standard conductivity blocks for model HEC-103A
Conductivity blocks Leather protective sleeve
The primary indexes comparing of
HEC-103A and HEC-103A1 eddy current conductivity meters
|Measurement range||Lift-off||Working Freq.||Measurement area||Camber measurement||Auto. Compensation||Reading memory||
(full measuring range)
|0.5mm||60KHz||Minimum of 14mm||None||
Two temperature compensation modes
Same or different temperature condition
|Save 4000 sets of data, and can upload to the computer||±0.5% of measurements|
The measurement range of model HEC-103A, 103B, 103B1 is large. Besides copper, copper alloy, aluminum and aluminum alloy, the instrument can also measure titanium, titanium alloy and other low conductivity non-ferrous metal. It is real full measuring range instrument. You needn’t separately buy high or low conductivity instrument, but one our instrument is enough.
Lift-off compensation is a important parameter of eddy current conductivity meter, which means the instrument’s capacity for overcoming the non-conductive layer (as paint, coating, etc.) above the tested material. Model HEC-103A, 103A1, 103B or 103B1 is the same as all top brand same type instrument and the only instrument whose lift-off compensation is up to 0.5mm. Even if there are coating, paint, or other impurity and rough surface above the tested material, you could get the accurate testing data only if the gap is less than 0.5mm.
The currently used working frequencies are 60 KHz and 500 KHz, 60 KHz for aviation industry standard, 500 KHz for detecting sheet metal. Model B is the only instrument, which has a high and a low frequency probes and the high frequency probe is up to 500 KHz. The high frequency probe can be used for super thin workpiece whose thickness is 0.1mm to 0.3mm, so you no longer need to worry about measuring super thin workpieces.
The diameter of eddy current conductivity meter’s probe is usually between 13mm and 14mm, but model HEC-103B standard delivery has such a big probe and a small probe whose diameter is 8mm. The probe is used of electromagnetic shielding technology, that the measured material needn’t be more than twice the size of probe. It can measure the small workpiece with the minimum value of 8mm, so you no longer need to worry about measuring small workpieces.
Model HEC-103B has unique camber modification technology, with the special camber measurement mode and “∧” shape probe cover, the camber material can be measured stably.
Model HEC-103B has continuity measurement function, which can help you sort materials quickly by setting the upper and lower bound warning, in order to maximize efficiency
The other instruments have only virtual temperature compensation mode, which can measure accurately only when the calibration standard block’ temperature is same as the measured material. Model HEC-103B used the advanced technology from Germany. It is the instrument which has the real full-automatic temperature compensation. Even if the block’s temperature is different with the material, it could automatically compensate the standard values.
All models can save 500 set dates. It can be set as auto-saving without affecting the operating speed. You no longer need to take notes but easily view the measurements at any time, that also reduce manual error rate. All models HUATEC except HEC-101 instruments can connect the computer and upload data to the computer to organize and print
Each model’s indicators and functions are different from the other, but the most critical parameter called measurement accuracy of instrument is uncompromising. All models’ accuracy is up to ±0.5% ~ ±1% as the foreign same type instrument, to ensure the most precise measurements.
Every models have three kinds of measurement parameters are “MS/m”, “%IACS” and “ῼ • mm²/m”, one keyboard toggle without manual handling, be wonderfully easy to use.
