Large Screen LCD Eddy Current Inspection Equipment High Accuracy Simple Operation

Large Screen LCD Eddy Current Inspection Equipment High Accuracy Simple Operation
Large Screen LCD Eddy Current Inspection Equipment High Accuracy Simple Operation

Large Image :  Large Screen LCD Eddy Current Inspection Equipment High Accuracy Simple Operation

Product Details:
Place of Origin: Beijing
Brand Name: HUATEC
Certification: ISO CE GOST
Model Number: HEC-108
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard export package
Supply Ability: 500 per month

Large Screen LCD Eddy Current Inspection Equipment High Accuracy Simple Operation

Description
Tesring Range: Resistivity:0.01µΩ•m~2.5µΩ•m,Conductivity:0.4MS/m~100MS/m 0.69%IACS~172%IACS,Resistance:0.1µΩ~150Ω Internal Constant Current Of The Instrument: 16µA Level~10A Level(automatic Selection According To The Measuring Requirement)
Wire/cable Measuring Fixture: Provided 1000mm Standard Test Fixture (Optional HJ-300 / 150 / 240 / 630 / 1200 Test Fixture )or Other Non-standard Test Fixture With Different Size Automatic Temperature Compensation: The Measured Value Will Be Automatically Compensated To The Value At 20℃
Normal Working Environment: Temperature: 0℃~+40℃; Relative Humidity: 0~80% Display: Large Screen LCD,which Can Simultaneously Display Multiple Measurement Parameters With Backlight
Power Supply: 220VAC ± 10%, 50-60Hz; Power 160W Size: 350(W)*260(H)*200(D)
High Light:

eddy current test equipment

,

eddy current inspection equipment

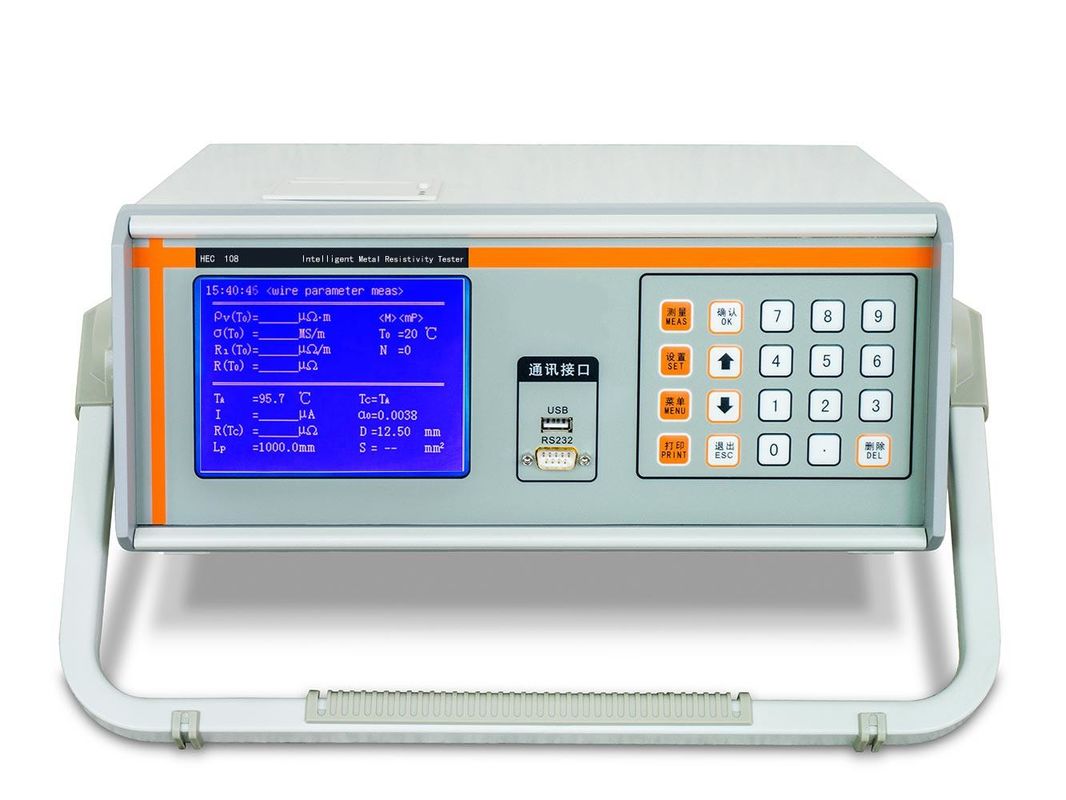

HUATEC HEC-108 Metal Foil Resistivity Resistance and Conductivity Measuring Instrument Conductivity of Metal Testing Equipment







1. Main features of the instrument

  • Measure the conductivity, resistivity, meter resistance and DC resistance of motor, transformer, etc. of the wire, pole and bar with the maximum diameter of 1-45mm.
  • The resolution of the instrument is up to 10-8 Ω (0.01 μ Ω), which ensures the measurement accuracy of the resistance and conductivity of the metal conductor with the maximum diameter up to Ø 45mm (sectional area up to 1589mm2).
  • Configure high-precision (± 0.1 ℃) temperature sensor or test fixture with high-precision conductor temperature sensor, greatly improving the accuracy of temperature automatic compensation in measurement.
  • Combining advanced electronic, singlechip and automatic measurement techniques in one instrument, with superior automatic functions and simple operation.
  • All measured numerical values can be obtained by just one press on the key without any calculation. The instrument is adequate for continuous, fast and accurate measurements.
  • AC power supply design, suitable for field use.
  • With large screen and font. Can display measured values and auxiliary parameters at the same time, including resistivity, conductivity, resistance, temperature, measuring current and temperature compensation coefficient.
  • The functions of automatic constant current selection, automatic current reversal, automatic zero point correction and automatic temperature compensation are maintained for every measurement, to guarantee the accuracy of measured value.
  • Special portable four-terminal measuring fixture is suitable for fast measurements of different materials and the wire/bar with different standards.
  • The build-in data accumulator can record and save 1000 groups of measuring data and parameters. Connecting it to the host computer, the complete report can be generated.
  • Built in data memory can record and save 1000 sets of measurement data and parameters, and connect the upper computer to generate a complete report.

2. HEC-108 Main Parameters

Parameter

Item

Resistivity Conductivity Resistance
Measuring range 0.01µΩ·m~2.5µΩ·m

0.4MS/m~100MS/m

0.69%IACS~172%IACS

0.1µΩ~150Ω
Resolution 104~106µΩ·m 0.01~0.001%IACS 0.01µΩ(I=10A)
Precision ±0.25% ±0.25% 100µΩ~150Ω:±0.15%
Temperature measurement 0℃-55℃,Accuracy of ±0.1℃
Internal constant current of the instrument 16µA level~10A level(automatic selection according to the measuring requirement)
Wire/cable measuring fixture provided 1000mm standard test fixture (Optional HJ-300 / 150 / 240 / 630 / 1200 test fixture )or other non-standard test fixture with different size;
Automatic temperature compensation The measured value will be automatically compensated to the value at 20℃.
Wire/cable measuring items ①Soild conductor resistivity ρv,conductivity σ,resistance R,resistance per unit length Rl,② resistivity, resistance pen unit length (Ω/m),Ω/km (optional model HEC-108B)
Printout data Date, time, temperature correction coefficient α, wire specifications, and all measured values of conductor and wire/cable
Normal working environment Temperature: 0℃~+40℃; relative humidity: 0~80%
Display

large screen LCD,which can simultaneously display multiple

measurement parameters with backlight

Power supply 220VAC ± 10%, 50-60Hz; power 160W
Internal memory Can save 1000 groups of measured data.
PC communication mode RS232 serial port
Host size 350(W)*260(H)*200(D)
Master machine shell Aluminum alloy case
Packaging and protection Master machine, test fixture,charge,communication cables, correction resistance, operation manual and a CD-ROM,Flush bonding printer, charger four-terminal resistance test clamp, temperature sensor ,and etc.





























































































Optional fixture:

HJ-300 fixture: for Dia.0.1mm-10mm wire or rod.

HJ-150 fixture: for Dia.0.4mm-10mm wire or rod, multi corn cable, the maximum cross-sectional area of the material can be memorized, the maximum cross-sectional area of the material can be memorized

HJ-240 fixture: for Dia.0.1mm-18mm wire or rod, multi corn cable, the maximum cross-sectional area of the material can be memorized

HJ-630 fixture: for Dia.0.1mm-28mm wire or rod, multi corn cable, the maximum cross-sectional area of the material can be memorized

HJ-1200 fixture: for Dia.0.1mm-39mm wire or rod, multi corn cable, the maximum cross-sectional area of the material can be memorized

HJ-1500B fixture: for Dia.0.1mm-44mm wire or rod, multi corn cable, the maximum cross-sectional area of the material can be memorized

Calibration standard resistance:1mΩ, 10mΩ, 100mΩ, 1Ω, 1mΩ, 10Ω, 100Ω



Large Screen LCD Eddy Current Inspection Equipment High Accuracy Simple Operation 0



Note: all workpiece to be tested, request the length not less than one meter.
