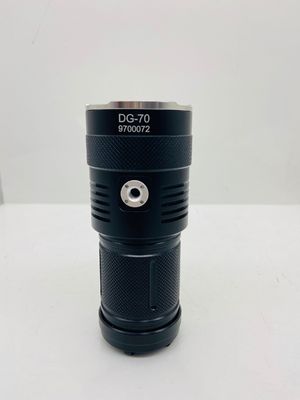

HUATEC Pocket LED 9W 5H Portable Uv Lamp

HUATEC Portable UV Lamp Pocket lamp type LED Ultraviolet Torch Lamp

1· Introduction

DG-70 pocket lamp type LED Ultraviolet Lamp is professional portable UV Lamp researched and developed by our company. A complete range of specifications of UV Lamp can meet different requirements. The series possesses ultra-high brightness, long working hours and stable quality etc., and it conforms the National Pressure-bearing Equipment NDT Standard (NB/T 47013-2015).

2. Main Application

21. Fluorescence Penetrate Testing
21. Fluorescence Magnetic Particle Flaw Detection
21. Fluorescence Leak Detection

Other Application

21. Oil Stain, Blot Testing
21. Special Gas, Oil and Gas Pipeline Testing
21. Fluorescence Reflection Detection for Special Materials
21. Criminal Investigation and Legal Medical Expert Survey
21. Paper Money Authentication, Jewel Appreciation
21. Agriculture, Foodstuff, Medical Treatment and other relevant industries.

3. Characteristic and Performance

21. HUATEC DG-70 adopts high-power 365nm Ultraviolet band LED Lamp

Beads produced by Japanese NICHIA company, 100% free from UV-B and UV-C element, spectrum is pure.

21. The lifetime of Lamp Beads reach up to 20000 hours, efficient,energy conservation and environmental protection.
21. Quick Start, can reach the maximum illuminance as soon as switch on.
21. Ultra-low power consumption,high efficiency.Stand-by time is far more than likewise products.
21. Cold light source makes cold operation, outputs the illuminance lasted and steadily.
21. Optical filter is black vitaglass.
21. High strength aviation aluminum alloy shell with anodize surface.
21. Enhance thermal design, can be used continuous for long time.
21. Configure dedicated high speed charger for each lamp.
21. Anti magnetic field interference function makes it possible to work in the strong magnetic field.
21. Dust prevention and waterproof standards reach IEC 60529- IP66 grade, suit to different environments, more safety and reliable.

4. Technical Parameters

Mode Parameters		DG-70
Lamp Beads		NICHIA 365nm Ultraviolet band LED Lamp Beads
Lamp Bead Amount		3
Input Voltage		3.7-4.2V
Output Power		9W
Intensity of Ultraviolet Ray at 38cm Distance		≥20000 uW/cm2
Irradiated Area at 38cm Distance		￠80mm
Diameter of Light Inlet Window		￠50
Battery Model		ICR 18650
Battery Capacity		2600mAh
Number of Battery		4
Charging Time		≥5H
Working Hours		≥5H
Battery Life		More than 500 time for fully charge and discharge
Outline Dimension	A	￠60 mm
	B	￠50 mm
	L	143 mm
Weight(including Battery)		610g

Diagram of Outline Dimension

5. Configuration List
