Portable Handy Yoke Flaw Detector Magnetic Particle Testing Equipment

Portable Handy Yoke Flaw Detector Magnetic Particle Testing Equipment
Portable Handy Yoke Flaw Detector Magnetic Particle Testing Equipment Portable Handy Yoke Flaw Detector Magnetic Particle Testing Equipment Portable Handy Yoke Flaw Detector Magnetic Particle Testing Equipment Portable Handy Yoke Flaw Detector Magnetic Particle Testing Equipment

Large Image :  Portable Handy Yoke Flaw Detector Magnetic Particle Testing Equipment

Product Details:
Place of Origin: China
Brand Name: Huatec
Certification: ISO,CE
Model Number: HCDX-220AC/HCDX-220DC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: in standard export carton
Delivery Time: 1-3 working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500 set per month

Portable Handy Yoke Flaw Detector Magnetic Particle Testing Equipment

Description
Product Name: Handy Yoke Flaw Detector Model: HCDX-220AC/HCDX-220DC
Power Source: 220V 50Hz Testing Time: 100sec On 100sec Off
Pole Distance: 0~200mm Yoke Weight: 5 Kgs
Standard: ASTM E1444-05
High Light:

handy yoke flaw detector

,

handy Magnetic Particle Testing Equipment

,

200mm Magnetic Particle Testing Equipment



Portable handheld equipment for magnetic particle inspection

HCDX-220AC/HCDX-220DC Handy yoke flaw detector



Product overview

Portable handheld equipment for magnetic particle inspection



Magnetic particle flaw detector has the characteristics of compact structure, reasonable layout, compact size, light weight, easy to carry and so on. It is suitable for magnetic particle inspection of surface and near surface defects of all kinds of iron and steel structural parts, boilers, pressure vessels, pressure pipelines and various types of welded ferromagnetic materials in electric power, metallurgy, petrochemical, machinery and other industries. The flaw detector can be directly connected to AC power, or alternatively equipped with AC magnetized power supply and DC magnetized power supply, efficient and light. It is especially suitable for welding seam inspection of ship hull, welding seam inspection of steel structure in high altitude and internal operation of pressure vessel.



The instrument meets the requirements of JB/T7411-2012 "Technical Conditions of Electromagnetic Yoke Flaw Detector" standard.

Standard Practice for Magnetic Particle Testing——ASTM E1444-05

Portable Handy Yoke Flaw Detector Magnetic Particle Testing Equipment 0

Product features

1, Compact size, handy and light weight, robust construction is safe for operator

2. One-piece forming, comfortable hand feel.

3. Two power supply modes can be selected freely: single-phase AC power supply (straight plug mode); DC magnetization power supply (dc battery pack)

4.Strong and rugged construction for continuous inspection

Technical Parameters

Model/Item

HCDX-220AC



HCDX-220DC



Power / 220V50Hz 12V
Power source 220V 50Hz 220V 50Hz
Rechargeable Battery / MF12—7.2AH
Working current AC1.4A

AC1.4A

DC1.7A

Charging time / 8~15h
Battery working time / 6hours up
Testing time 100 seconds on 100 seconds off 100sec on 100sec off
Pole distance 0-200mm 0~200mm
Lifting capacity A C >5.5kg >5.5kg
D C / >26kg
Yoke weight Probe 3.1kg 3.1kg
Battery pack / 2.9kg
Size (㎜) Probe 208×52×146 208×52×146
Battery pack / 160×70×100
Charger / 75×50×40

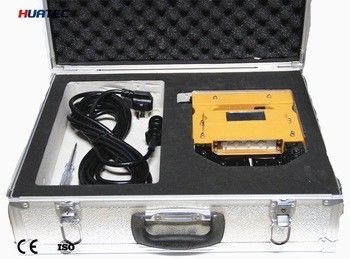

Standard delivery

HCDX-220AC

Electromagnet yoke

Power cord

Carrying case

Portable Handy Yoke Flaw Detector Magnetic Particle Testing Equipment 1

HCDX-220DC

Electromagnet yoke

Power cord

Battery pack

Battery charger

Battery DC connection cable

Battery bag

Carrying case

Portable Handy Yoke Flaw Detector Magnetic Particle Testing Equipment 2







Optional accessories

White light lamp and UV lamp

Portable Handy Yoke Flaw Detector Magnetic Particle Testing Equipment 3Portable Handy Yoke Flaw Detector Magnetic Particle Testing Equipment 4

Portable Handy Yoke Flaw Detector Magnetic Particle Testing Equipment 5
