Product Details:
|
| Pressure Test Spring Material: | Spring Steel | Test Head Material: | Tungsten Carbide |
|---|---|---|---|
| Test Head Diameter: | 0.5mm (Opel, Optional) | Spring Pressure Range: | 0~3N (marked In Blue) |
| High Light: | ce non destructive testing equipment,huatec non destructive testing equipment,huatec pen type hardness tester |
||

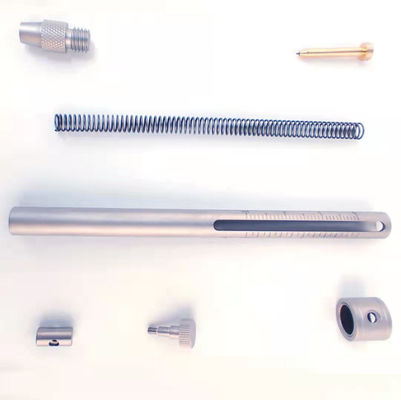

HUATEC Hardness tester pen HT-6580NT
Application:
Used to accurately measure and record the hardness of various materials (such as coatings, plastic, wood or metal surface hardness) * The measured surface can be flat or curved. * Not limited by area size. * Easy to operate, stable performance. * Easy to carry and other characteristics.
Principle:
The spring compression deformation, the force generated by the load on a known diameter of the test head, with the test head to mark the coating surface to be tested to chec k whether the coa ting surf a ce i s damaged, the test results in Newton.
Specifications:
| Pressure test spring material | Spring steel |
| Test head material | Tungsten carbide |
|
Test head diameter |
0.5mm (Opel, optional) |
| 0.75mm (Bosch, standard) | |
| 1.0mm(optional) (conforming to IS01518 and DEF) | |
|
Spring pressure range |
0~3N (marked in blue) |
| 0~10N (marked in red) | |
| 0~20N(yellow mark) | |
| 0~40N (white mark), (optional) |
HUATEC has always been adhering to the first concept of customer-oriented, the products we sell will be carefully checked before shipping and then delivered to your hands.If you have any product requirements, you can contact me.Looking forward to your order.
