Industrial Hd-150 Metallographic Specimen Cutting Machine

Industrial Hd-150 Metallographic Specimen Cutting Machine
Industrial Hd-150 Metallographic Specimen Cutting Machine Industrial Hd-150 Metallographic Specimen Cutting Machine Industrial Hd-150 Metallographic Specimen Cutting Machine

Large Image :  Industrial Hd-150 Metallographic Specimen Cutting Machine

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HD-150
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard export package
Delivery Time: 1-4working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500Pcs

Industrial Hd-150 Metallographic Specimen Cutting Machine

Description
Grinding Wheel (12.7mm,hole): 150mm Ultra-thin Cutting Disc Motor Power: 125W
Speed Range: 200-1500 R/min Input Voltage: Single Phase 220V,50/60Hz
Overall Dimension: 405Lx 405W X 330H Mm Precision Cutting: Precision Can Reach 0.01mm
High Light:

hd-150 metallographic specimen cutting machine

,

industrial metallographic specimen cutting machine

,

huatec metallographic cutter

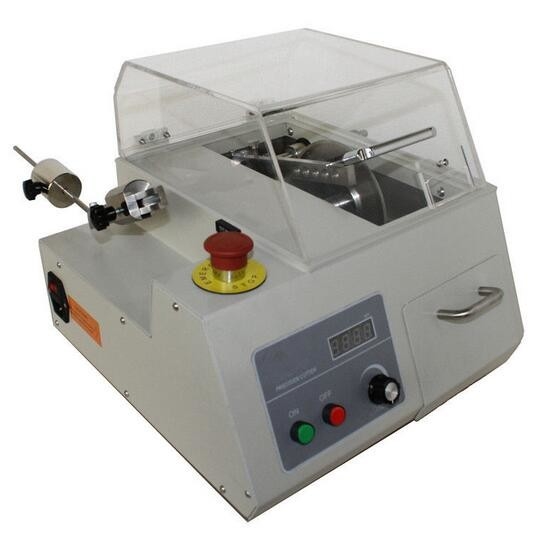

Metallographic Specimen Cutting Machine Industrial cutting machine HD-150

HC-150 Metallographic Specimen Cutting Machine

HC-150 Cutting Machine can be used to cut non-metallic material, circuit board, semiconductor, super hard material etc. Cutting precision 0.01mm. The machine equipped with many jigs, able to cut samples with irregular shape. It is an ideal precision cutting machine for the scientific research institutes and industrial enterprises.

Product Features

l Closed-loop control, speed precise control. Speed range:200-1500 r /min

l Precision cutting, precision can reach 0.01mm

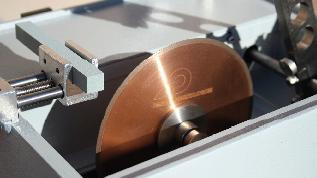

l Cutting disc applied widely, use Ultra-thin diamond grinding wheel we supplied to get better result





Main Technical Specifications

Item Specification Remark
Grinding wheel (12.7mm,hole) 150mm Ultra-thin cutting disc
Speed range 200-1500 r/min customizable
Input voltage single phase 220V,50/60Hz
Motor power 125W
Overall Dimension 405Lx 405W x 330H mm
Weight 30kg

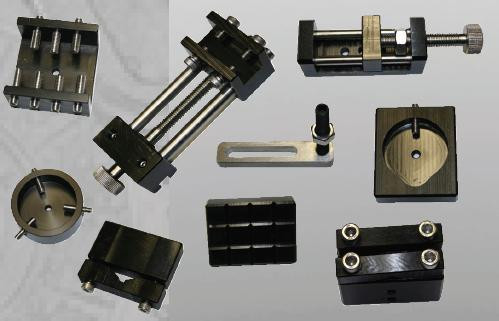

Accessories

Item Quantity Item Quantity
Single head jig 1 32mm inset sample jig 1
Double head jig 1 40mm inset sample jig 1
Irregular sample jig 1 Water drop jig 1
Long sample jig 1 Electroplate diamond grinding wheel(made in China) 1
Instruction 1 Power Cord 1
Warranty Card 1 Certificate, packing list 1EACH



Special Accessories

Item Quantity Item Quantity
Diamond grinding wheel(import) 150 mm
