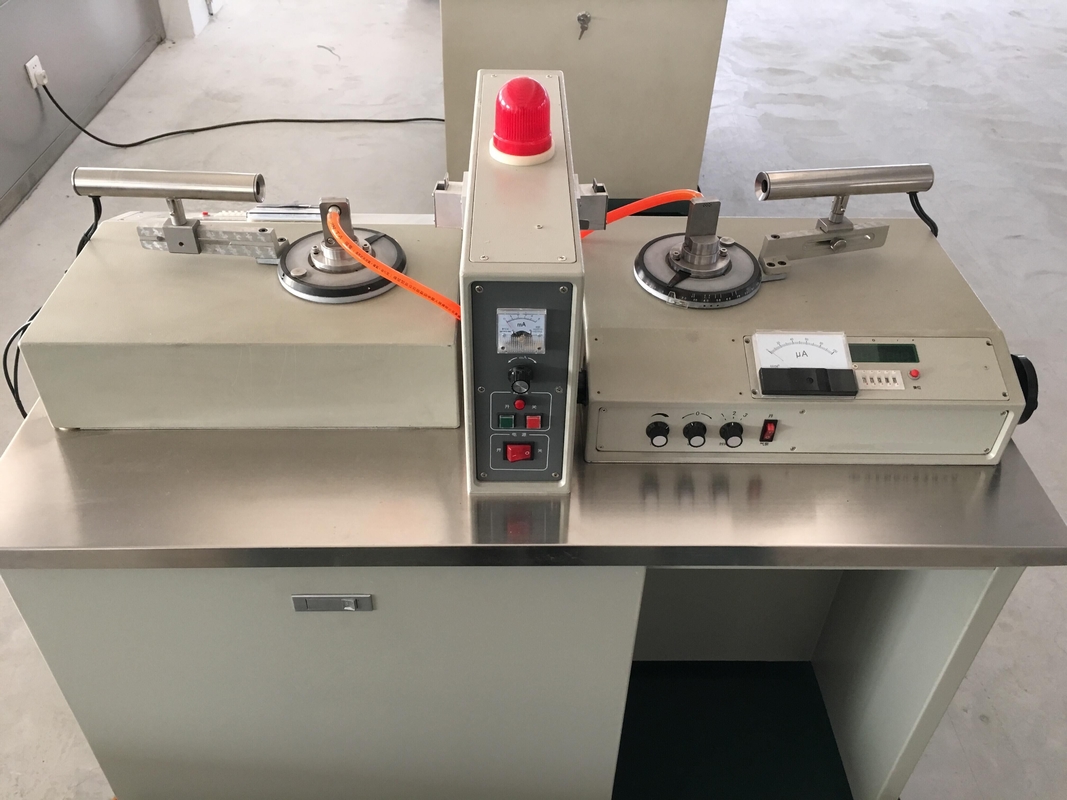

X-ray Crystal Orientation Instrument HYX-2 Model
HYX-2 series X-ray orientation instrument applies with X-ray diffraction principle, combines designing light, mechanical, electricity into one precision unit which can measures surface of nature & man-made crystal(Sapphire, piezoelectric crystal, optical crystal and semiconductor crystal) fast, if matches with cutter it can also use for crystal’s orientation cutting. Now this instrument has been necessary equipment for manufacturing crystal components. It already has been broadly used in researching and manufacturing enterprises of crystal material, especially suitable for research lab, school and company.
X-ray crystal orientation instrument operates simply, don’t need too professional acknowledge or technology, digital displays measuring angle which is easy for observing. Its displayer can be set to zero at any angle that is convenient for reading angle error value of crystal plate. With two working tables for person operates simultaneously, improves using efficiency of equipment. Matches with special integrator which can zoom peak value and tube, HT cable integrator highly increased product reliability. For counting tube voltage it applies with D high voltage module, vacuum absorb sample plate, improves precision and measuring speeds. Our company professionally manufactures X-ray crystal orientation instrument, all HYX series orientation equipment adopts advanced producing artist and components, highly increased product stability and efficiency.
Environment Temperature: 5℃~30℃
Relative humidity: not over 75%; Good grounding device, with grounding resistance not over 4Ω.
Power supply: Single phase AC220V,50Hz, Capacity of 0.5kKW
Power supplying circuit should not has HF & electrical arc obstruction of equipment as electrical welder, HF stove and so on.
YX-2 Technical info:
||Single phase AC220V,50HZ,0.5KW
||Copper target with anode grounding, force air cooling.
||30KVP, switch closed under full voltage
||θ:degree,minute,second; Minimum reading of 10″
||for number displaying can set all random angle value
||Radiation strength chart (µA chart)
||Geiger tube, voltage of DC700~1200V
||0.1,0.4,3 second; 3 levels adjustable
||High voltage interlock,temperature protection
