Product Details:
|
| Range Of Scanning (mm): | Range Of Scanning (mm)：0～1000 | D-delay (s): | D-delay (s)：0～5000 |
|---|---|---|---|
| MTLVEL（m/s）: | MTLVEL：1000～9999 | Frequency Range (MHz): | 0.5~10 |
| Gain Adjustment (dB): | 0～110 | Reject: | 0%～80% Of Screen Height |
| Vertical Linear Error: | Vertical Linear Error Is Not More Than 3% | Standard Communication Interface With PC: | USB |
| High Light: | lightweight ultrasonic flaw detection equipment,usb ultrasonic flaw detection equipment,small volume ultrasonic crack detection equipment |
||

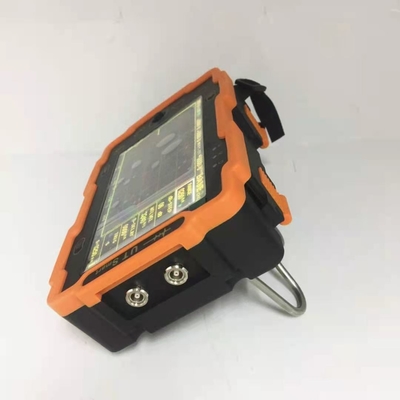

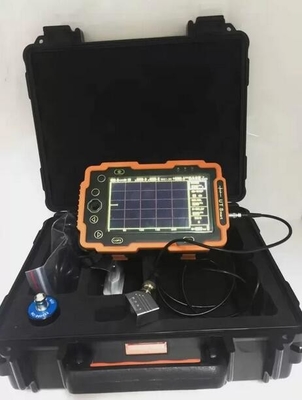

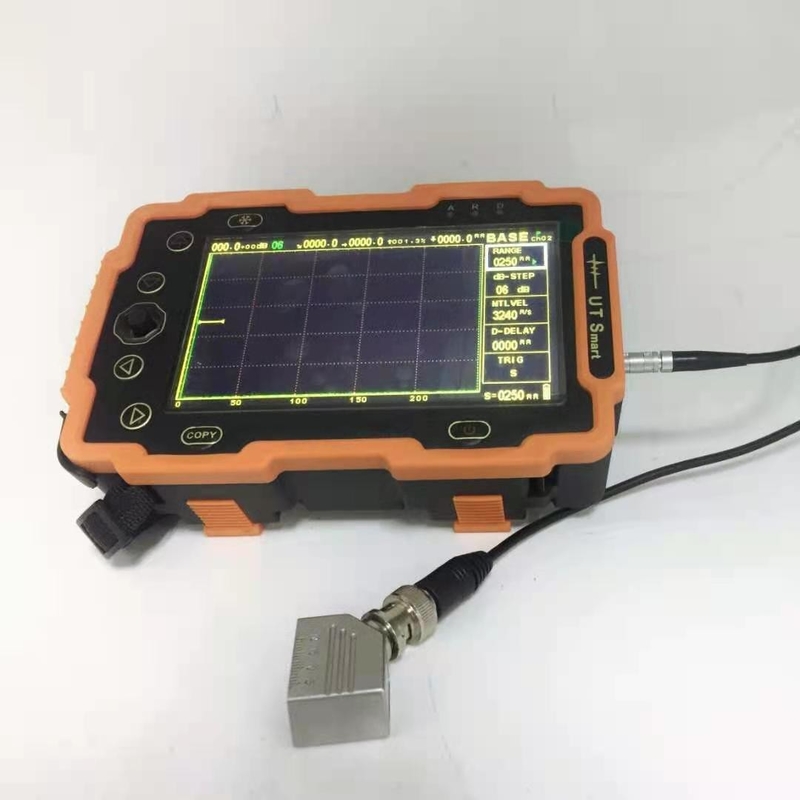

| Designation | Quantity |
| Main unit | 1 |
| 4.2V power adaptor | 1 |
| probe connecting cable | 1 |
| Carrying case | 1 |
| Instruction manual | 1 |
| Straight probe | 1 (Dia 20mm, 2.5MHz) |
| Angle probe | 1 (13×13, 60°, 2.5MHz) |
Measuring Range and Specification:
Range of scanning: 0 mm ~1000 mm
Resolution for scanning: 1mm
Range of gain: 0dB ~110 dB
D-Delay: 0µs~5000µs
Sound speed : 1000 m/s~9999m/s
Operation Environment:
Temperature: -20℃~50℃
Humidity: 20%~90%RH
Free of strong magnetic field and corrosion
Power supply:
Li battery 7.4V 4800mAh
Overall Dimension and Weight:
Overall dimension: 162mm×105mm×40mm
| Item | Technical Data |
| Range of scanning (mm) | Range of scanning (mm):0~1000 |
| D-delay (ms) | D-delay (ms):0~5000 |
| MTLVEL(m/s) | MTLVEL:1000~9999 |
| Working mode | Single probe (receiving and sending), double probe (one for receiving and another for sending), transmission (transmission probe) |
| Frequency Range (MHz) | 0.5~10 |
| Gain adjustment (dB) | 0~110 |
| Reject | 0%~80% of screen height |
| Vertical linear error | Vertical linear error is not more than 3% |
| Horizontal linear error | Not more than 0.1% in the scanning range |
| Sensitivity Leavings | ≥50 dB |
| Dynamic range | ≥36dB |
| Alarm | Three modes, i.e. forbidden wave, loss wave and auto |
| A-Scan display area |
Full screen or local A-Scan display freezing and de-freezing A-Scan filling |
| Data save | 500 A-Scan images (including setting of instrument) |
| Standard communication interface with PC | USB |
| Measuring unit | mm/inch |
| Battery | Li battery 3.6V 3000mAh * 4 |
| Power adaptor | 4.2V DC 220AC |
| Working temperature | -20℃~50℃ |
| Working humidity | 20%~90% |
| Port type | LEMO |
| Overall dimension (mm) | 162×105×42 |
| Weight (kg) | 0.68 (include Li-ion battery) |
