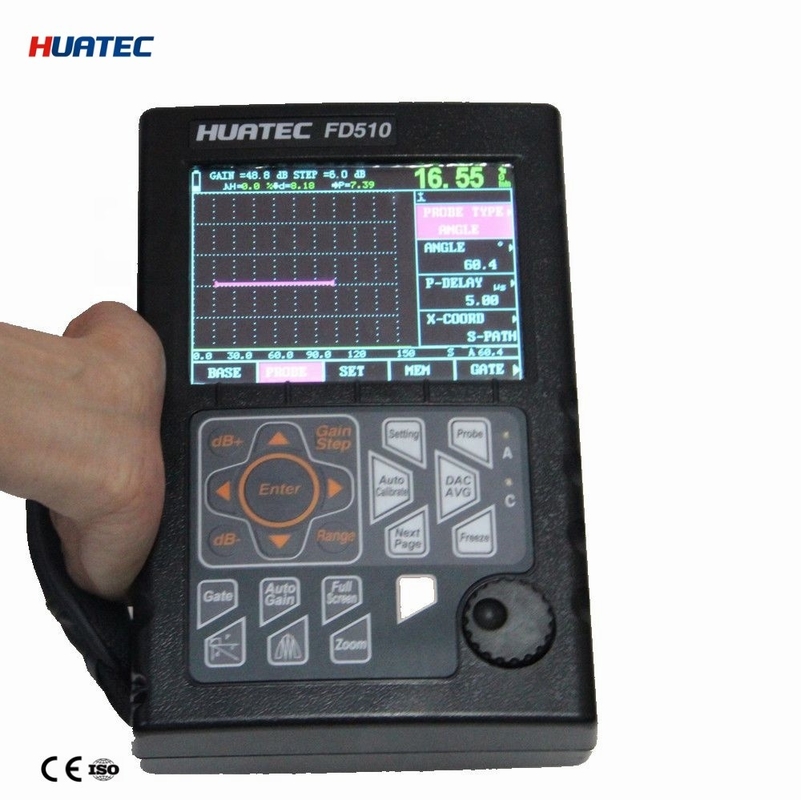

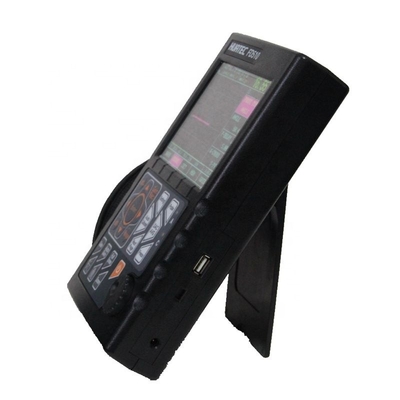

Digital Display Parity Ultrasonic Crack Detection Machine Fd510 Dust Proof

Digital Display Parity Ultrasonic Crack Detection Machine Fd510 Dust Proof
Digital Display Parity Ultrasonic Crack Detection Machine Fd510 Dust Proof Digital Display Parity Ultrasonic Crack Detection Machine Fd510 Dust Proof

Large Image :  Digital Display Parity Ultrasonic Crack Detection Machine Fd510 Dust Proof

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: FD-510
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard export package
Delivery Time: 1-4working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500Pcs

Digital Display Parity Ultrasonic Crack Detection Machine Fd510 Dust Proof

Description
Zero(μs): 0.0 ~ 99.99 Pulse Displacement(μs): -20 ~ +3400
Vertical Linearity Error: ≤3% Measuring Range(mm): 0 ~ 6000
Port Type: BNC(Q9) Sensitivity Leavings: ≥62dB
Horizontal Linearity Error: ≤0.1% Reject: 0~80%
High Light:

digital display ultrasonic crack detection machine

,

dust proof ultrasonic crack detection machine

,

parity digital ultrasonic flaw detector

Digital Ultrasonic Flaw Detector FD510



Main faetures:

1.Automated calibration,Automated gain, 0-110dB gain

2. DAC,AVG,TCG,B scan,AWS

3. High-speed capture and very low noise

4. Solid metal housing,water / oil proof,dust proof

5. high contrast viewing of the waveform from bright

6. Powerful pc software and reports can be export to excel

  • Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,);
  • Automated switch three staff gauge ((Depth d,level p,distance s);
  • Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ;
  • Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be modified and compensated
  • 6dB DAC functions;
  • 100 independence setup, any criterion can be input freely, we can work in the scene without test block;
  • Big memory of 500 A graph
  • Automated gain and gain scan;
  • Peak Hold and Peak Memory;
  • B scan;
  • AWS D1.1
  • Automated make video of test process and play; use upan,the length of video is unlimited.
  • Powerful pc software and reports can be export to excel;
  • Li battery, continue working time up to 9 hours;
  • The embeded software can be online updated;
  • Other assistant function
    • Display freeze;
    • Automated echo degree;
    • Angles and K-value;
    • Lock and unlock function of system parameters;
    • Electronic clock calendar ;
    • Two gates setting and alarm indication;
    • Gate and DAC alarm;
  • Title
Parameter Title Parameter
Measuring Range(mm) 0 ~ 6000 Measurement Mode Single,Dual,Thru
Vertical Linearity Error ≤3% Reject 0~80%
Horizontal Linearity Error ≤0.1% Pulse Displacement(μs) -20 ~ +3400
Sensitivity Leavings ≥62dB Zero(μs) 0.0 ~ 99.99
Dynamic range ≥32dB Port Type BNC(Q9)
Resolving Power ≥36dB Operating Temperature () -20~50
Frequency Range(MHz) 0.5 ~ 15 H×W×D(mm) 240×156×48
Gain(dB) 0 ~ 110 Weight(kg) 1.0(with battery)
Material Velocity(m/s) 1000 ~ 15000



Standard Delivery:

Main unit

2.5MHZ-20 straight probe

4MHZ-8x9mm, 60degree angle probe

4A/9Vpower adapter

Probe connection cable (BNC to BNC)

Probe connection cable (BNC to Lemo 00)

Instruction manual

Carrying case

RS232-USB converter

Additional Accessories:

Data managing software

Data managing cables RS232

Straight probe (5MHZ-20)

Straight probe (2.5MHZ-20)

Straight probe (2.25MHZ-20)

Straight probe (1MHZ-20)

Angle probe (4MHZ-45degree, 8*9mm)

Angle probe (4MHZ-60degree, 8*9mm)

Angle probe (4MHZ-70degree, 8*9mm)

Angle probe (4MHZ-80degree, 8*9mm)

Angle probe (2MHZ-45degree, 8*9mm)

Angle probe (2MHZ-60degree, 8*9mm)

Angle probe (2MHZ-70degree, 8*9mm)

Angle probe (2MHZ-80degree, 8*9mm)

Probe T/R (5MHz-20mm, focus 15mm)

Probe T/R (2.5MHz-20mm, focus 15mm)

Connection cable to probe (BNC-BNC)

Connection cable to probe (BNC-Lemo 00)

Connection cable to probe (BNC-Lemo 01)

Connection cable to probe (Lemo 00-Lemo 01)

Lithium ion battery

Power adapter (4A/9V)

Power Cable

Leather case

Test block V1

Test block V2

Test block DAC, ASME etc.
