Directional Radiation Metal Ndt Ceramic X Ray Tube Xxg-2505

Directional Radiation Metal Ndt Ceramic X Ray Tube Xxg-2505
Directional Radiation Metal Ndt Ceramic X Ray Tube Xxg-2505 Directional Radiation Metal Ndt Ceramic X Ray Tube Xxg-2505

Large Image :  Directional Radiation Metal Ndt Ceramic X Ray Tube Xxg-2505

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: XXG-2505
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard export package
Delivery Time: 1-4working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500Pcs

Directional Radiation Metal Ndt Ceramic X Ray Tube Xxg-2505

Description
Output Voltage (Kv): 150-250 Input (KW): 2.5
Focus Spot (mm): 2.0X2.0 Beam Angle: 40°+5
Max Penetra Tion (mm): 38 Model: XXG-2505
High Light:

directional radiation ceramic x ray tube

,

ndt ceramic x ray tube

,

ndt metal ceramic x ray tube

X Ray flaw detectors

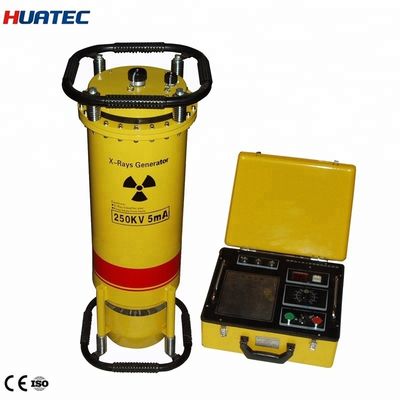

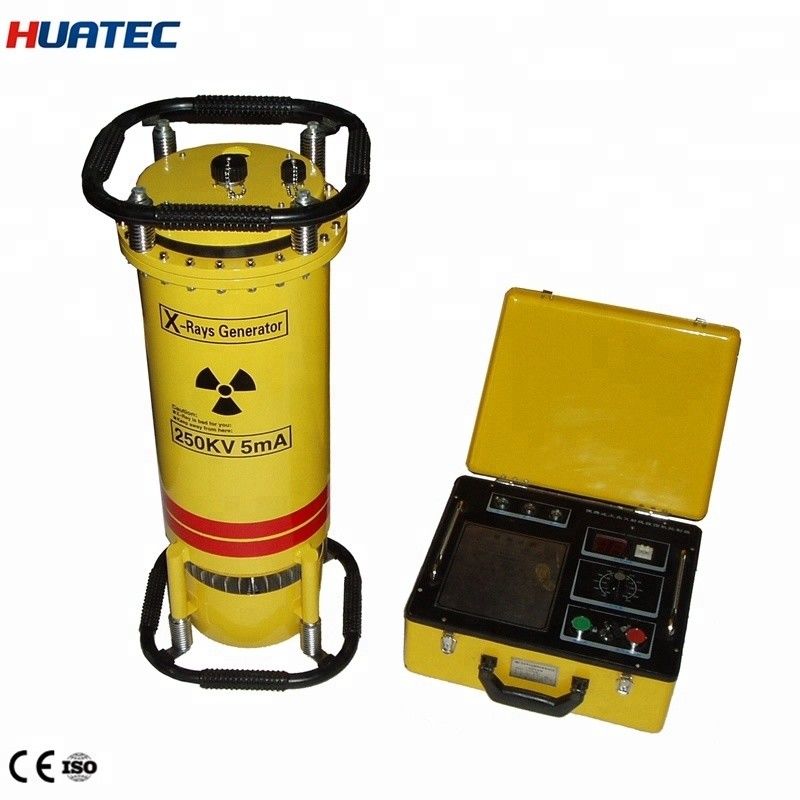

Directional radiation portable X-ray flaw detector XXG-2505 (Ceramic X-ray Tube)



XXG series are ceramic X-ray tube, both can be directional model and Panoramic, it is more durable than the glass tube: shake proof and long working life.



Feature:

●Checking the software and hardware itself after start the machine



●Excellent anti-jamming performance, which can adapt for field operation without power supply, because of the motor supports



●Can adjust exposure parameters with keys ( easy operation.)



●Has the function of Delay time opening HV. Convenient for operator keep away from dangerous field



●Can adjust high voltage slowly for protecting X-ray generator



●Automatically controlling according to 1:1 working and rest operating way, the longest continuous exposure period is 5 minutes.



●Including complete protecting system: over KV, low mA, over mA, over temperature and optical-sound alarming



●Convenient for repairing and maintenance



●Much more Substance for structure designing, much more convenient for local operation





Directional Radiation Metal Ndt Ceramic X Ray Tube Xxg-2505 0

●Time can be changed for±0.3 according to the power supply net to make the exposure more precise



Specification



  Output voltage (Kv) Input (KW) Focus spot (mm) Beam angle

Max penetra tion

(mm)

Weight (KG) Dimensions (mm)
Genera tor Contr oller Generator Controller
XXG-250 150-250 2.5 2.0X2.0 40°+5 38 33.5 11 320x320x7 350x290x1
5       °       45 60











Standard Delivery



DirectionalceramicX-ray tube 1 Pcs
Generator 1 Set
High voltage joins cable 1 Pcs 25 Meters
Controller 1 Set
Power cable 1 Pcs 10 Meters
Grounding cable 1 Pcs 5 Meters
Accessories 1 Set

(Including: alarm lamp,1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen

5 pcs; Wire penetrameter (IQI) 1 set; fuse1 pc)
