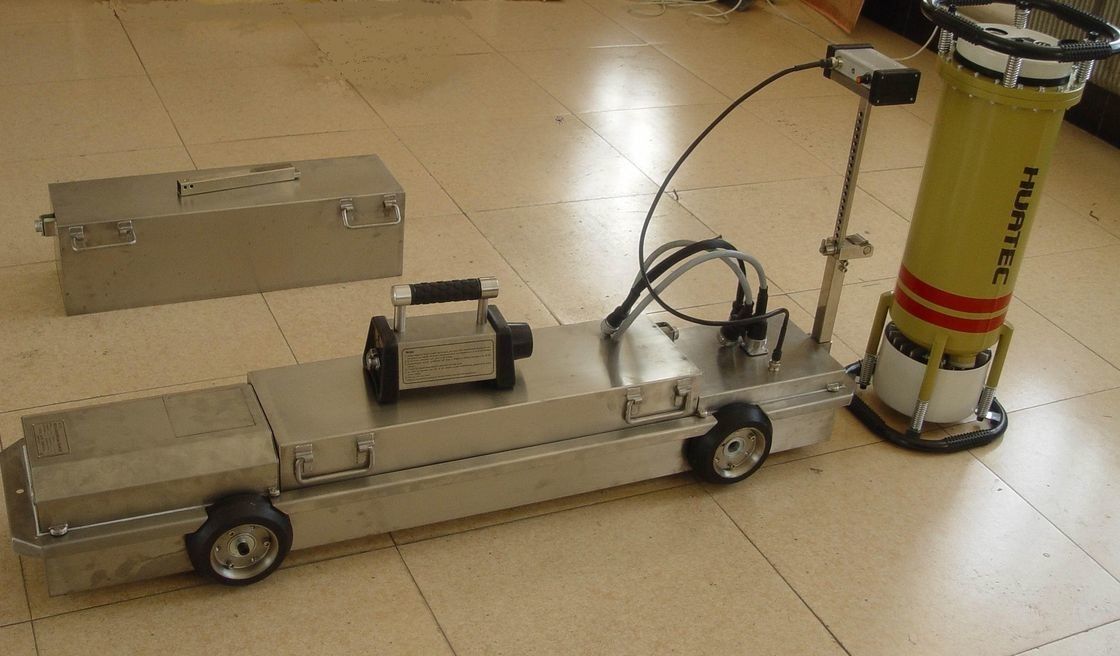

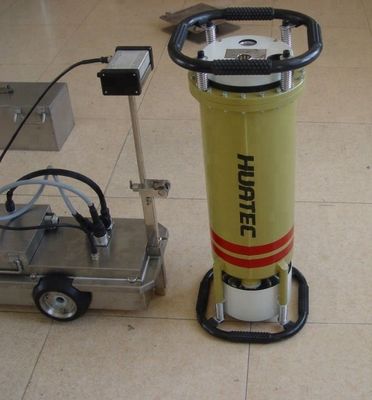

60-160kv Huatec X Ray Flaw Detector Hxpc-100b3x

60-160kv Huatec X Ray Flaw Detector Hxpc-100b3x
60-160kv Huatec X Ray Flaw Detector Hxpc-100b3x 60-160kv Huatec X Ray Flaw Detector Hxpc-100b3x

Large Image :  60-160kv Huatec X Ray Flaw Detector Hxpc-100b3x

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: HXPC-100B3X
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard export package
Delivery Time: 1-4working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500Pcs

60-160kv Huatec X Ray Flaw Detector Hxpc-100b3x

Description
Applicable Pipe Inner Diameter: Φ170-380mm (The Inner Diameter) Cleaning Pipe Optimum Climbing Slope: 12°
Controlling Method: Magnetic Positioning Output Voltage: 60-160kv
Output Current: 3 MA Exposure Time: 0-3 Min
Positioning Accuracy: ±5 Mm Travel Speed: 12 M/min
High Light:

huatec portable x ray flaw detector

,

60kv x ray flaw detector

,

160kv portable x ray flaw detector

HUATEC X-Ray It Has The Characteristics Of High Precision, Strong Penetration And High Stability HXPC-100B3X



Features

  • Unlike controlling the equipments via listening to sounds, manipulators can control the exposure moments and manipulate the X-ray pipeline crawlers to move forward or backward via magnetic orientator.
  • Magnetic locators have the following features: higher positional accuracy, strong penetrability, and higher stability. The magnetic transmitter is equipped with electric display.
  • The X-ray pipeline crawlers can display the voltage of the battery and directly judge the use of the battery.
  • The X-ray pipeline crawlers’ software is written with fault codes. Please refer to the fault code table to detect equipment malfunctions.
  • The X-ray pipeline crawler has smaller size, lighter weight, and it is more convenient for transportation and operation.
  • Equipped with all kinds of protection functions, including encountering water protection, 20 minutes no one operation protection, etc.
  • Users can replace the controller, the circuit board, and other parts easily due to modular design.
  • The generator adopts a small 1605 portable circumferential cone target flaw detector: the controller and the head of the machine are separated, which is more convenient for users to replace, debug, and test. If the generator is equipped with the controller, the whole set can be used as a portable flaw detector.
  • The crawler is equipped with false load, and the time is set for 0.2 minute. The crawler can simulate the real load working, such as exposure, moving forward or backward without connecting pipe head. This function enable users to learn how to locate and determine the fault.
  • The lengthening shaft adopts keyless connection, which is more convenient to replace.
  • The magnetic receiver has 8 gear ranges, which satisfy the requirements of different diameters.



Parameters

Crawler model HXPC-100B3X
Applicable pipe inner diameter Φ170-380mm (The inner diameter)
Cleaning pipe optimum climbing slope 12°
controlling method Magnetic positioning
output voltage 60-160 kv
Output current 3 mA
exposure time 0-3 min
positioning accuracy ±5 mm
Travel speed 12 m/min
Battery voltage / capacity 108V/10AH
Non-exposure walking distance 1km (round trip)
Applicable wall thickness ≤10mm
Crawler Total length (mm)

1870

(car body 1170mm,

generator 600mm,connection 100)

Driving mode Single drive
focal spot size 1.0*3.5
X-ray radiation angle 360°*40°
Operating ambient temperature -20°C to +75°C
storage temperature 0°C to +60°C
Applicable environmental humidity ≤85%
Battery box weight 25Kg,42Kg
Generator weight 8.5kg
Climbing weight ≤30kg
The turning radius of the crawler >15D
Generator type HUATEC XXH-1605 glass tube















































































































Standard delivery

No. Composition content Quantity Comment
1 Crawler (vehicle) 1 pc
2 X-ray generator 1 pc
3 The battery pack 2 cases
4 Battery charger 1 pc
5 Magnetic locator transmitter 1 pc
6 Magnetic positioning receiver 1 pc
7 Magnetic positioning charger 1 pc
8 Lengthening shaft 1 set 6 pc
9 Wheels (big) 1 set 6 pc
10 Wheels (small) 1 set 6 pc
11 Lengthen the plate 1 set 2 pc
12 Tool 1 set
13 Certificate of conformity, manual 1 pc
14 Assembly drawing 1 set
15 Fault comparison table 1 pc



Optional acessories



Lead screen/ Lead letter/ Cassette/ IQI/ Film/ Film viewer/ Densitometer/ Personal radiation dosimeter/ Protective clothing/ Gamma ray alarm lamp
