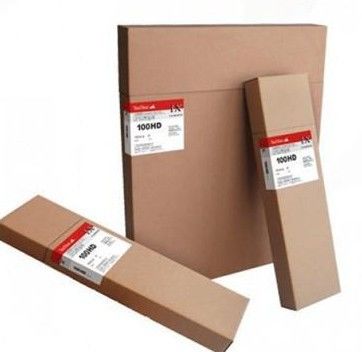

D4 D7 Huatec Industrial Radiographic Film X Ray

D4 D7 Huatec Industrial Radiographic Film X Ray
D4 D7 Huatec Industrial Radiographic Film X Ray D4 D7 Huatec Industrial Radiographic Film X Ray

Large Image :  D4 D7 Huatec Industrial Radiographic Film X Ray

Product Details:
Place of Origin: China
Brand Name: Huatec
Model Number: D4,D7 type
Payment & Shipping Terms:
Minimum Order Quantity: 1 package
Price: USD 90~500 bag roll
Packaging Details: carton
Delivery Time: 3~7 working days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 1000 rolls per month

D4 D7 Huatec Industrial Radiographic Film X Ray

Description
Product Name: D4,D7 HUATEC Industrial Radiographic Film Brand: Huatec
Specification: 356mm×432mm(14in.×17in.)、305mm×381mm(12in.×15in.)... Packaging: Bag Or Roll
High Light:

d4 industrial radiographic film

,

x ray industrial radiographic film

,

d7 industrial x ray film

Different specification of D4,D7 HUATEC industrial radiographic film



Product name and model specification



Model Specification
D4,D4-D,H4,LA400,D5,D5-D,
D7,D7-D,H7,H7-D
356mm×432mm(14in.×17in.),305mm×381mm(12in.×15in.),
260mm×360mm (10in. ×14in.),70mm×300mm,80mm×150mm,
80mm×240mm,80mm×300mm,80mm×360mm, 100mm×356mm,
195mm×275mm,70mm×200m,80mm×100m,80mm×200m

Other specifications and packing capacity can also be provided according to customer requirements.

Features and uses
Industrial X-ray film is a kind of high resolution and high image resolution film which is widely used in
nondestructive flaw detection. The film has high sensitivity, high contrast, high definition,

It can be directly or with lead sensitization screen for X or γ ray exposure. It is suitable for electronic components,
synthetic materials, casting and casting, welding, etc.

NDT testing for shipbuilding, national defense and nuclear industry, aerospace and aviation industry, etc. Using
blue polyester sheet base, two sides coated with emulsion layer, layer and

Protective layer. This film has rich layers, high image resolution and good definition. This film can be processed
at room temperature, also can be processed by high temperature machine.



Features and uses

D4 D7 Huatec Industrial Radiographic Film X Ray 0

Product performance

D4 D7 Huatec Industrial Radiographic Film X Ray 1

Safety lighting and washing processing
The safety operating light in the darkroom of this film is a crimson safety light with a 15W bulb. When the film is
used for unsealing, the lamp distance is generally above 1.2 meters. Cumulative illumination time

No more than 40 minutes. The exposed sample should be flushed within 2h. The washing process is shown in the
table below.

D4 D7 Huatec Industrial Radiographic Film X Ray 2

Main film working curve

                  D7 film aluminum working curve                        D7 film steel working curve

D4 D7 Huatec Industrial Radiographic Film X Ray 3

Storage and shelf life

This film should be stored in a low temperature dry place, the best storage conditions are temperature 10℃ ~
23℃, relative humidity 30% ~ 65%. Should be strictly avoided in high temperature, high

Stored in wet, radioactive and chemical gases, avoid to store in the same room with processing liquid medicine,
and should be used within the validity period, product shelf life of 30 months.



Matters needing attention
1. The film stored at low temperature should be taken out 2 hours in advance before use, and placed at room
temperature for more than 2 hours to ensure the temperature of the film and the use environment

The temperature balance is consistent, and then open the film packaging, in order to avoid the formation of water
vapor on the surface of the film caused by the adhesion between the films and affect the film picture effect,

To ensure the normal use of film.

2. The film should be unsealed, loaded and rinsed under the safety lamp. The film should not be exposed for too

long under the safety lamp

Contaminated film, film should be handled with care to avoid friction. After unsealing, the film should be used
up as soon as possible, and the unused film should be sealed according to the original package.





D4 D7 Huatec Industrial Radiographic Film X Ray 4D4 D7 Huatec Industrial Radiographic Film X Ray 5D4 D7 Huatec Industrial Radiographic Film X Ray 6

D4 D7 Huatec Industrial Radiographic Film X Ray 7
