Fd620 USB Pulse Echo Ultrasonic Flaw Detector With Mobile App Portable

Fd620 USB Pulse Echo Ultrasonic Flaw Detector With Mobile App Portable
Fd620 USB Pulse Echo Ultrasonic Flaw Detector With Mobile App Portable

Large Image :  Fd620 USB Pulse Echo Ultrasonic Flaw Detector With Mobile App Portable

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE
Model Number: FD620
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 4500~5850 per set
Packaging Details: in High quality carton
Delivery Time: 5-10 days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 100 sets per month

Fd620 USB Pulse Echo Ultrasonic Flaw Detector With Mobile App Portable

Description

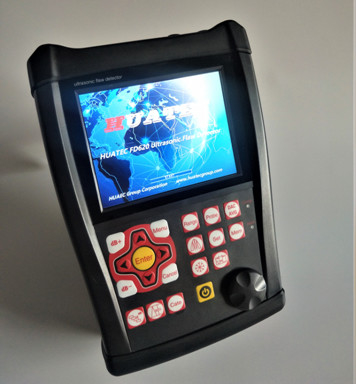

Product Name: Portable Ultrasonic Flaw Detector Model: FD620
All Tools: DAC, AVG, Color Bscan, AWS, Etc Pulse Repetition Frequency: 30-3000Hz,accurate Adjustment
Range: 0-25000 Mm, At Steel Velocity Power Requirements: AC Mains 100-240 VAC, 50-60 Hz
High Light:

usb pulse echo ultrasonic flaw detector

,

portable pulse echo ultrasonic flaw detector

,

usb ultrasonic crack detection

FD620 Ultrasonic Flaw Detector with mobile APP portable ultrasonic flaw detector



★Probe calibration, curve making and other operations are prompted by the dialog box in the whole process, no need to read the manual

★ All tools included what you need: DAC, AVG, color Bscan, AWS, etc.

★Pulse Repetition Frequency: 30-3000Hz,accurate adjustment, high speed scanning, never missing detection

★ High Signal to noise ratio, clear and stable echo, anti-noise design, perfect for tough working conditions

★ 10-digit AD, high speed sampling leads to better echo diagram with all details. Sensitive and can detect even tiny flaws

★ Crystal clear true-color display. Helpful user interface makes the operation much easier.

★ High speed real-time flaw detection video recording. Unlimited USB data storage.

★ Blue tooth connection, the mobile APP generates on-site flaw detection report and realizes printing

★ IP65 standard. Alloy + Silica gel case, water and dust proof, solid and lasts forever. Damping support makes it stands in any angle.

★ Battery lasts 15 hours for one charge. Each battery has own charging control so with two batteries it can work around the clock.



Fd620 USB Pulse Echo Ultrasonic Flaw Detector With Mobile App Portable 0



Fd620 USB Pulse Echo Ultrasonic Flaw Detector With Mobile App Portable 1

Fd620 USB Pulse Echo Ultrasonic Flaw Detector With Mobile App Portable 2

Fd620 USB Pulse Echo Ultrasonic Flaw Detector With Mobile App Portable 3

Fd620 USB Pulse Echo Ultrasonic Flaw Detector With Mobile App Portable 4

Fd620 USB Pulse Echo Ultrasonic Flaw Detector With Mobile App Portable 5

Specifications

Range 0-25000 mm, at steel velocity
Material Velocity 100~20000m/s
Pulse Repetition Frequency 30-3000Hz
Dynamic range ≥38dB
Linearity Horizontal: +/-0.2% FSW, Vertical: 2.5% FSH, Amplifier Accuracy +/-1 dB
Resolving Power >40dB (5P14)
Sensitivity Leavings >62dB
Reject (suppression) 0 to 80% full screen height
Test Modes Pulse echo, dual element and thru-transmission
Probe Types Single Straight, Single Angle, Dual Straight, Dual Angle, Through, Creeping, Surface
Gate Monitors Two independent gates controllable over entire sweep range
Units Inch or millimeter
Power Requirements AC Mains 100-240 VAC, 50-60 Hz
Display Delay -20 to 3400 µs
Probe Delay/Zero Offset 0 to 99.99µs
H×W×D(mm) 260×175×60 (mm)
Weight 1.2kg
Operating Temperature -10℃ to 50℃
Storage Temperature -30℃ to 50℃
Pulse Energy 200V, 300V, 400V, 500V selectable
Rectification Positive half wave, negative half wave, full wave, RF System
Bandwidth (amplifier bandpass 0.2 to 20 MHz
Gate Monitors Two independent gates controllable over entire sweep range
Sensitivity 120 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB
Transducer Connections BNC or LEMO

500 independence setups, any criterion can be input freely, we can work in the scene without test block;

Big memory of 1000 A graph

Internal rechargeable Li-ion battery pack rated 7.2V at 8000 mAh





Functions

Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф).

Flaw sizing: Automatic flaw sizing using AVG/AVG or DAC, speeds reporting of defect acceptance or rejection.

Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity.

Convenient to make and use DAC and AVG to evaluate the echo, the curve can be modified and compensated.

Connecting Memory Disk,the unit can get unlimited memory.

Automated make video of test process and play; use U Disk,the length of video is unlimited.

Color B-scan.

There are 13 built-in international standards in the unit.

Blue tooth connection to mobile device to generate and print detection reports on-site. AWS D1.1.

Curved Surface Correction feature.

Crack Height Measure function.

Magnify gate:Spreading of the gate range over the entire screen width.

Auto-gain function.

Envelope: Simultaneous display of live A-scan at 60 Hz update rate and envelope of A-scan display.

Peak Hold: Compare frozen peak waveforms to live A-Scans to easily interpret test results.

Scan Freeze:Display freeze holds waveform and sound path data.

Alarm:Beep and LED.

Real Time Clock.

Fill echo.

Capture mark.

Echo color within the Gate.



Standard Package

Portable Ultrasonic Flaw Detector FD620     1pc

Straight Beam Transducer (4 MHz, Φ10)     1pc

Angle Beam Transducer (4 MHz, 8 mm×9 mm, 60°)     1pc

Connect Cable for the transducer (BNC-LEMO 00,or optional LEMO 01-LEMO 00)     1pc

Rechargeable Li-Ion Battery Package, 8 amp hour     1pc

Power supply/charger unit     1pc

Operating Manual in English     1pc

App Software      1pc

Strap     1pc
