Anti Noise Pulse Echo Ut Flaw Detector High Speed Scan

Anti Noise Pulse Echo Ut Flaw Detector High Speed Scan
Anti Noise Pulse Echo Ut Flaw Detector High Speed Scan Anti Noise Pulse Echo Ut Flaw Detector High Speed Scan Anti Noise Pulse Echo Ut Flaw Detector High Speed Scan

Large Image :  Anti Noise Pulse Echo Ut Flaw Detector High Speed Scan

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: FD560
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: USD 3800~4940 per set
Packaging Details: in High quality carton
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500PCS

Anti Noise Pulse Echo Ut Flaw Detector High Speed Scan

Description
Range:: 0-10000 Mm ,at Steel Velocity Pulse Repetition Frequency:: 10-2000Hz
Resolving Power:: >40dB (5P14) Reject (suppression):: 0 To 80% Full Screen Height
Dynamic Range:: ≥38dB Sensitivity Leavings:: >68dB
Test Modes:: Pulse Echo, Dual Element And Thru-transmission Display Delay: -20 To 3400 Us
High Light:

anti noise ut flaw detector

,

pulse echo ut flaw detector

,

high speed scan flaw detector

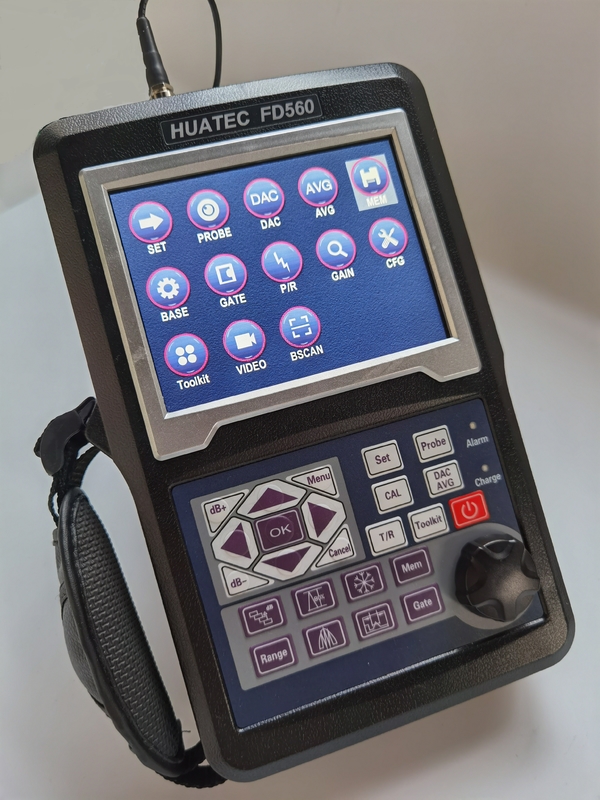

Blue tooth connection to mobile function FD560 Ultrasonic Flaw Detector



1. User friendly dialog interactive helps operations like Calibration, making curves, etc.

2. All tools you need: DAC, AVG, TCG AWS, etc.

3. Pulse Repeatition Frequency: 10-2000Hz precise adjust, high speed scan, no miss out.

4. High Signal to noise ratio, clear and stable echo, anti-noise design, perfect for tough working conditions.

5. 12-digit AD, high speed sampling leads to better echo diagram with all details. Sensitive and can detect even tiny flaws.

6. Can use probe frequency 20M perfectly .

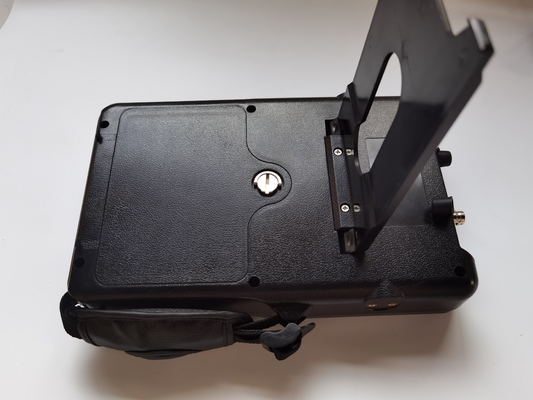

7. IP65 standard. Protective rubber casing. Damping support makes it stands in any angle.

8. Battery lasts 15 hours for one charge.



Specifications



Range 0-10000 mm ,at steel velocity
Material Velocity 100~20000 m/s
Pulse Repetition Frequency 10-2000Hz
Dynamic range ≥38dB
Linearity: Horizontal +/-0.2%, Vertical: 2.0%(Horizontal:+/-0.2% FSW Vertical: 0.25% FSH )
Resolving Power >40dB (5P14)
Sensitivity Leavings >68dB
Reject (suppression) 0 to 80% full screen height
Test Modes Pulse echo, dual element and thru-transmission
Probe Types Single Straight, Single Angle, Dual Straight, Dual Angle,Through,Creeping,Surface
Gate Monitors Two independent gates controllable over entire sweep range
Units Inch or millimeter
Power Requirements AC Mains 100-240 VAC, 50-60 Hz
Display Delay -20 to 3400 µs
Probe Delay/Zero Offset 0 to 99.99µs
H×W×D(mm) 250×165×55 (mm)
Weight 1.2kg
Operating Temperature -10℃ to 50℃
Storage Temperature -30℃ to 50℃
Pulse Energy 70V,100V,200V, 300V, 400V, 500V selectable
Rectification Positive half wave, negative half wave, full wave, RF System
Bandwidth 0.2 to 25 MHz
Gate Monitors Two independent gates controllable over entire sweep range
Sensitivity 120 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB

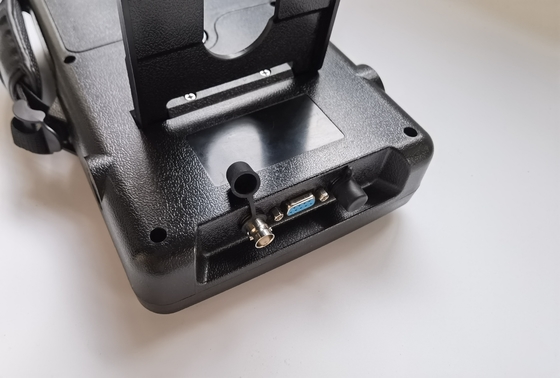

Transducer Connections BNC or LEMO



500 independence setup, any criterion can be input freely, we can work in the scene without test block;
Big memory of 1000 A graph

Internal rechargeable Li-ion battery pack rated 7.2V at 8000 mAh

15 hours nominal operating time depending on display brightness

4 hours typical recharge time



Functions



Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,).

Flaw sizing: Automatic flaw sizing using AVG or DAC/TCG, speeds reporting of defect acceptance or rejection.

Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity . ( V2 and two hole )

Convenient to make and use DAC/TCG and AVG to evaluate the echo, the curve can be modified and compensated.

Connectting U-Disk,the unit can get unlimited memory.

There are 17 standards of in the unit.

Blue tooth connection to mobile device to generate and print detection reports on-site. AWS D1.1.

Curved Surface Correction feature.

Crack Height Measure function.

Magnify gate:spreading of the gate range over the entire screen width.

Auto-gain function.

Envelope: Simultaneous display of live A-scan at 70 Hz update rate and envelope of A-scan

display.

Peak Hold: Compare frozen peak waveforms to live A-Scans to easily interpret test results.

Scan Freeze:Display freeze holds waveform and sound path data.

Alarm:Beep and LED.

Real Time Clock.

Fill echo.

Capture mark.

Echo color within the Gate.
