Product Details:
|
| Product Name: | Probe | Angle: | 45° 60° 70° |
|---|---|---|---|
| Frequency: | 2,4,5MHz | Transducer Element Size: | 8 X 9mm,22 X 20mm,13 X 8mm |
| High Light: | high precision ultrasonic flaw detector probe,metal analysis ultrasonic flaw detector probe,flaw detector ultrasonic probe |
||
High Precision Metal Analysis probe Ultrasonic Probe for Ultrasonic flaw detector optional accessories

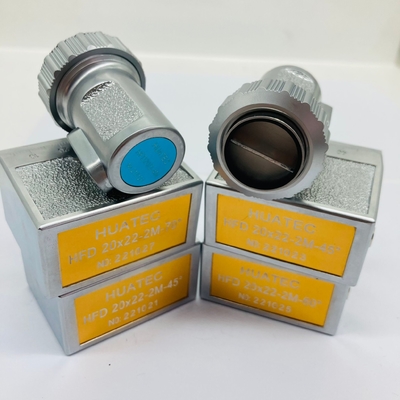

Ultrasonic Angle Beam Transducer
Dual Angle Transducers

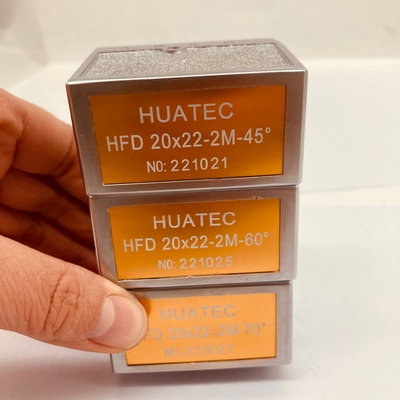

Angle beam transducers
Straight Beam Transducers

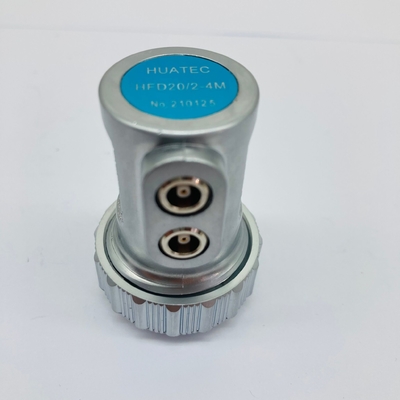

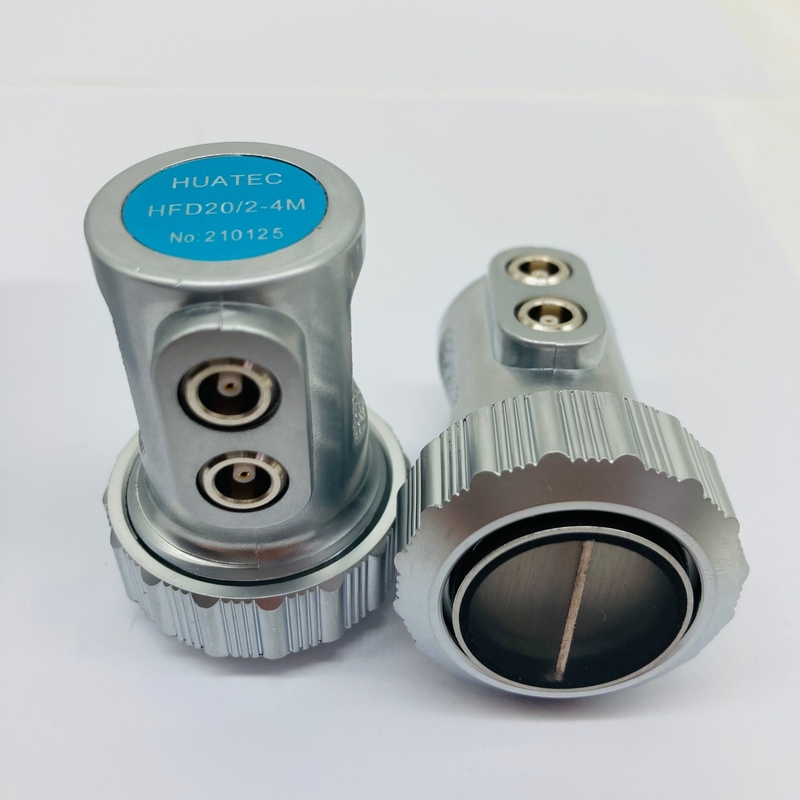

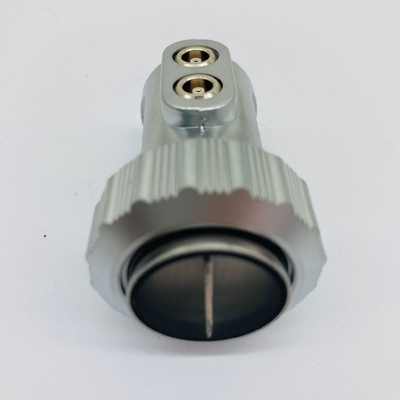

Dual Straight Transducers
| Angle beam transducers | ||||
| Designation | Transducer Element Size(mm) | Frequency (MHz) | Angle | EXW. Price |
| HFD8X9-2M-45 | 8 X 9mm | 2 MHz | 45º | USD55 |
| HFD8X9-2M-60 | 8 X 9mm | 2 MHz | 60º | USD55 |
| HFD8X9-2M-70 | 8 X 9mm | 2 MHz | 70º | USD55 |
| HFD8X9-2M-80 | 8 X 9mm | 2 MHz | 80º | USD55 |
| HFD8X9-5M-45 | 8 X 9mm | 5 MHz | 45º | USD55 |
| HFD8X9-5M-60 | 8 X 9mm | 5 MHz | 60º | USD55 |
| HFD8X9-5M-70 | 8 X 9mm | 5 MHz | 70º | USD55 |
| HFD8X9-5M-80 | 8 X 9mm | 5 MHz | 80º | USD55 |
| HFD22X20-2M-45 | 22 X 20mm | 2 MHz | 45º | USD60 |
| HFD22X20-2M-60 | 22 X 20mm | 2 MHz | 60º | USD60 |
| HFD22X20-2M-70 | 22 X 20mm | 2 MHz | 70º | USD60 |
| HFD22X20-2M-80 | 22 X 20mm | 2 MHz | 80º | USD60 |
| HFD22X20-5M-45 | 22 X 20mm | 5 MHz | 45º | USD60 |
| HFD22X20-5M-60 | 22 X 20mm | 5 MHz | 60º | USD60 |
| HFD22X20-5M-70 | 22 X 20mm | 5 MHz | 70º | USD60 |
| HFD22X20-5M-80 | 22 X 20mm | 5 MHz | 80º | USD60 |
| Dual Angle Transducers | ||||
| HFD13X8-2M-60 | 13 X 8mm | 2 MHz | 60º | USD70 |
| HFD13X8-2M-70 | 13 X 8mm | 2 MHz | 70º | USD70 |
| HFD20X10-2M-60 | 20 X 10mm | 2 MHz | 60º | USD70 |
| HFD20X10-2M-70 | 20 X 10mm | 2 MHz | 70º | USD70 |
| HFD13X8-5M-60 | 13 X 8mm | 5 MHz | 60º | USD70 |
| HFD13X8-5M-70 | 13 X 8mm | 5 MHz | 70º | USD70 |
| HFD20X10-5M-60 | 20 X 10mm | 5 MHz | 60º | USD70 |
| HFD20X10-5M-70 | 20 X 10mm | 5 MHz | 70º | USD70 |
| Straight Beam Transducers | ||||
| Designation | Transducer Element Size(mm) | Frequency (MHz) | EXW. Price | |
| HFD10-2M | 10mm | 2 MHz | USD55 | |
| HFD10-4M | 10mm | 4 MHz | USD55 | |
| HFD10-5M | 10mm | 5 MHz | USD55 | |
| HFD20-2M | 20mm | 2 MHz | USD60 | |
| HFD20-4M | 20mm | 4 MHz | USD60 | |
| HFD20-5M | 20mm | 5 MHz | USD60 | |
