DG-9WA 240V Led Uv Light Handheld Charging Style

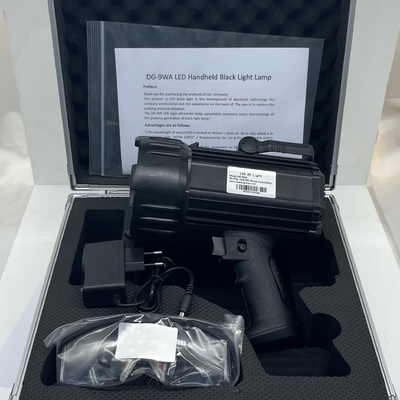

Large Image : DG-9WA 240V Led Uv Light Handheld Charging Style

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	DG-9WA

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD350-USD400/SET
Packaging Details:	aluminum alloy box+Outer carton packaging
Delivery Time:	5-7 working days after receipt of your payment
Payment Terms:	T/T, Western Union,Paypal

Contact Now

DG-9WA 240V Led Uv Light Handheld Charging Style

Description

Quantity Of Lamp Head:	UV Head:3pcs, White Light Head:1pc	UV(Light)-FLUX Indoor Temperature 25℃:	UV-MAX8000uW/cm2, Light-MAX1500LUX
Grading Feature:	Centre Grading	Irradiation Area At Depth Of 380mm:（≥1000uw/cm²）:	Φ170mm
Wavelength Accuracy:	±3nm	Power Supply:	AC100-240V 50/60Hz
Power:	UV LED-9VA Light-3VA	Wave Length:	365nm±3nm(UVA) (Indoor Temperature 25℃)
Battery Capacity:	5800mA/H 12.6V	Charging Time:	4-5H
Battery Cumulative Time:	UV LED 5-6H Or Light 16H
High Light:	240V Led Uv Light , Handheld Charging Style Led Uv Light

DG-9WA Handheld charging style LED-UV light

Characteristic:

Irradiance>8000uw/cm2

Internal batteries

Pre-alert and protection of low power

Light source life 30000H

Parameters

Item	parameter
Style	handheld
Quantity of lamp head	UV head:3pcs, white light head:1pc
UV(Light)-FLUX Indoor temperature 25℃	UV-MAX8000uW/cm2, Light-MAX1500LUX
Grading feature	Centre grading
Irradiation area at depth of 380mm:(≥1000uw/cm²)	Φ170mm
Wavelength accuracy	±3nm
Power supply	AC100-240V 50/60Hz
Power	UV LED-9VA Light-3VA
Wave length	365nm±3nm(UVA) (Indoor temperature 25℃)
Outline dimension	203mm(W)110MM(D)220mm(H)
Weight	1kgs
Battery capacity	5800mA/H 12.6V
Charging time	4-5H
Battery cumulative time	UV LED 5-6H or Light 16H

Feature:

9VA power saving of power consumption

30000H life expectancy of light source

High quality light source UVLED

0 UV-B contained

Battery endurance 5-6hrs

Pre-alert and protection of low power

Weight of 1kg only including batteries

Build in battery, no wiring outside

Three minute delay(power saving)//constand lighting,mode can be switched

Quartz and optical glass module, not PMMA material, excellent weather resistance

Continuous operation and external surface temperature rises less than 5 Celsius

No need to preheat, instant to reach 100% power

With UV and white light dual function, one hand switch.
