XXG-250GF 70-250KV X Ray Flaw Detector Maximum Penetration 60mm DR Flat High Frequency

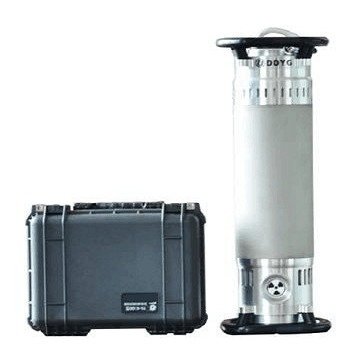

Large Image : XXG-250GF 70-250KV X Ray Flaw Detector Maximum Penetration 60mm DR Flat High Frequency

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	XXG-250GF

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD36225-USD40950/SET
Packaging Details:	Wooden box packaging
Delivery Time:	20-30 working days after receipt of your payment
Payment Terms:	T/T, Western Union,Paypal, L/C
Supply Ability:	5 Sets/Month

Contact Now

XXG-250GF 70-250KV X Ray Flaw Detector Maximum Penetration 60mm DR Flat High Frequency

Description

Focus Size:	3.0×3.0	Radiation Angle:	40°×40°
Maximum Penetration（Fe）:	60mm (A3)	KV Adjustment Range:	70～250 KV
MA Adjustment Range:	0.5～3 MA(Stepping 0.1mA)	Maximum Power:	900W
Leakage Radiation Value:	Maximum 5.0msv/h	Operating Temperature:	-20℃～+50℃
Storage Temperature:	-25℃～+70℃	Voltage:	85～264 VAC
Power Frequency:	45～65 Hz
High Light:	high frequency x ray flaw detector , 900w x ray flaw detector , hf portable x ray flaw detector

XXG-250GF 70-250KV Maximum penetration 60mm DR flat High frequency X-ray Flaw Detector

Main performance:

 Continuous exposure under the conditions of 35℃ 300kv/3mA, 250kv/3mA;

 Wide input voltage range to meet the power supply of various generators;

 Lightweight, strong penetration, stable performance;

 More suitable for use in harsh and humid environments;

 The operation interface is intuitive and easy to operate;

Main technical parameters

project name		XXG-250GF
X-ray generator	Weight	25kg
	Dimensions	Φ295×704 (Φ×L)
Controller	Weight	11kg
	Dimensions	410×228×300 (L×B×H)
Focus size		3.0×3.0
Radiation angle		40°×40°
Maximum penetration(Fe)		60mm (A3)
kV Adjustment range		70～250 kV
mA Adjustment range		0.5～3 mA(Stepping 0.1mA)
Maximum power		900W
Leakage radiation value		maximum 5.0msv/h
Operating temperature		-20℃～+50℃
Storage temperature		-25℃～+70℃
Voltage		85～264 VAC
Power frequency		45～65 Hz

XXG-250GF 70-250KV X Ray Flaw Detector Maximum Penetration 60mm DR Flat High Frequency 0
