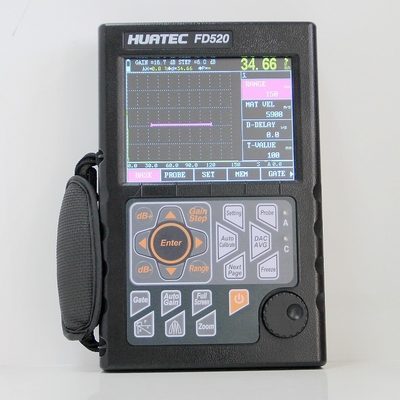

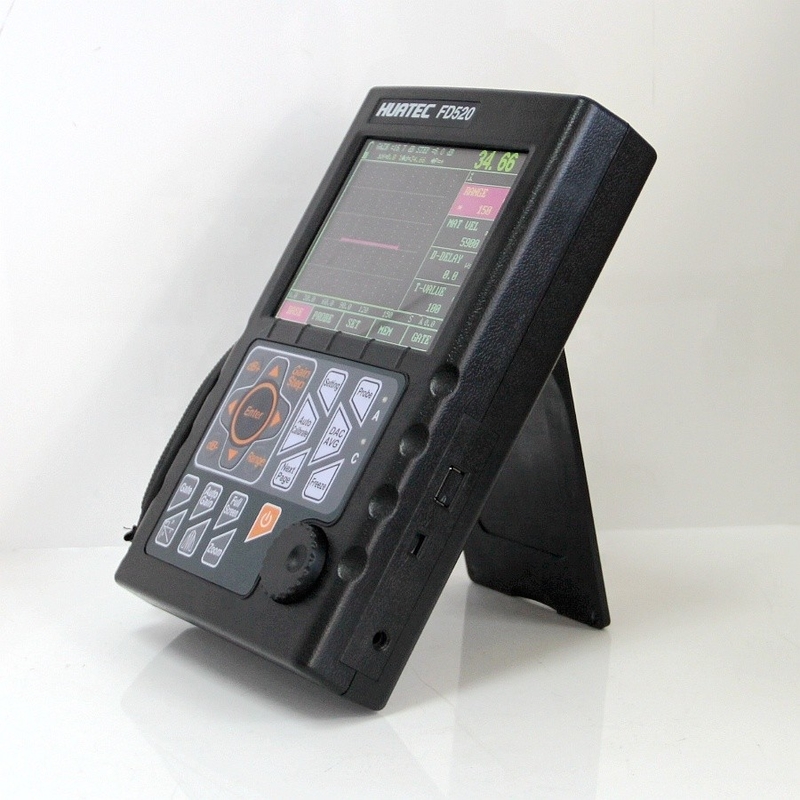

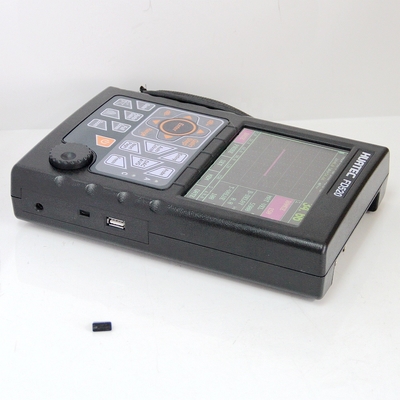

NDT Digital Ultrasonic Flaw Detector Portable Instrument Industry FD520

Large Image : NDT Digital Ultrasonic Flaw Detector Portable Instrument Industry FD520

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATEC
Certification:	CE ISO
Model Number:	FD520

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Carton
Delivery Time:	3-5 working days
Payment Terms:	T/T, Western Union，PAYPAL
Supply Ability:	500 PCS Per month

Contact Now

NDT Digital Ultrasonic Flaw Detector Portable Instrument Industry FD520

Description

Measuring Range（mm）:	0 ～ 10000	Measurement Mode:	Single、Dual、Thru
Frequency Range（MHz）:	0.5 ～ 15	Gain（dB）:	0~120
Material Velocity（m/s）:	1000 ～ 15000	Weight（kg）:	1.0（with Battery）
MOQ:	1PC	Warranty:	12 Months
High Light:	ndt digital ultrasonic flaw detector , automated gain digital ultrasonic flaw detector , ndt portable ultrasonic flaw detector

Digital Ultrasonic Flaw Detector

★ Automated calibration,Automated gain

★ DAC,AVG,TCG,B scan,AWS

★ High-speed capture and very low noise

★ Solid metal housing

★ high contrast viewing of the waveform from bright

★ Powerful pc software and reports can be export to excel

FD520

Features

Digital Ultrasonic Flaw Detector

Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф)；
Automated switch three staff gauge ((Depth d,level p,distance s)；
Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ；
Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be modified and compensated
6dB DAC functions;
500 independence setup, any criterion can be input freely, we can work in the scene without test block；
Big memory of 1000 A graph
Automated gain and gain scan;
Peak Hold and Peak Memory；
AWS D1.1
Automated make video of test process and play, use upan the length of video is unlimited.
Powerful pc software and reports can be export to excel;
Li battery, continue working time up to 10 hours;
The embeded software can be online updated；

Other assistant function

Display freeze;
Automated echo degree;
Angles and K-value;
Lock and unlock function of system parameters;
Electronic clock calendar ;
Two gates setting and alarm indication;
Gate and DAC alarm;

Specifications

Title	Parameter	Title	Parameter
Measuring Range(mm)	0 ～ 10000	Measurement Mode	Single,Dual,Thru
Vertical Linearity Error	≤3%	Reject	0~80%
Horizontal Linearity Error	≤0.1%	Pulse Displacement(μs)	-20 ～ +3400
Sensitivity Leavings	≥62dB	Zero(μs)	0.0 ～ 99.99
Dynamic range	≥32dB	Port Type	BNC(Q9)
Resolving Power	≥36dB	Operating Temperature (℃)	-20～50
Frequency Range(MHz)	0.5 ～ 15	H×W×D(mm)	240×156×48
Gain(dB)	0 ～ 120	Weight(kg)	1.0(with battery)
Material Velocity(m/s)	1000 ～ 15000

Standard Delivery:

Main unit

2.5MHZ-ф20 straight probe

4MHZ-8x9mm, 60degree angle probe

4A/9Vpower adapter

Probe connection cable (BNC to BNC)

Probe connection cable (BNC to Lemo 00)

Instruction manual

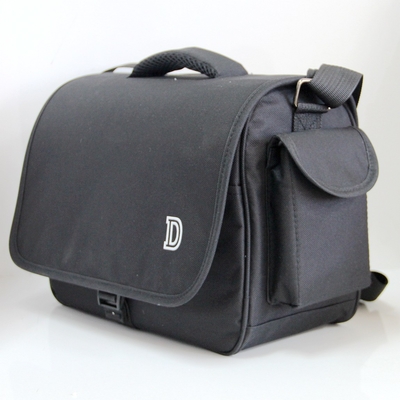

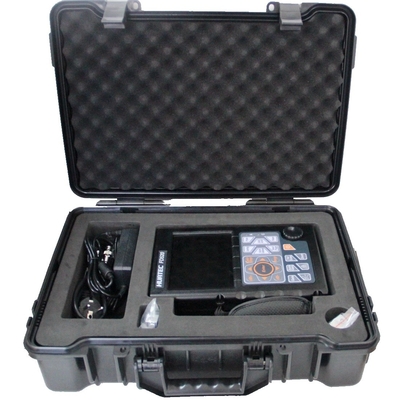

Carrying case

RS232-USB converter

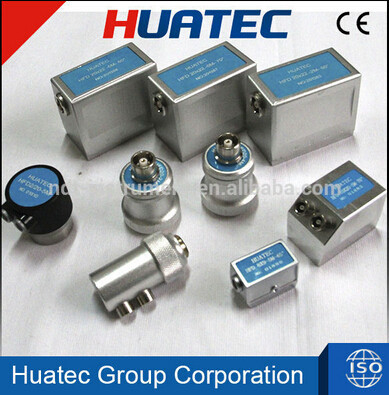

Additional Accessories:

Data managing software

Data managing cables RS232

Straight probe (5MHZ-ф20)

Straight probe (2.5MHZ-ф20)

Straight probe (2.25MHZ-ф20)

Straight probe (1MHZ-ф20)

Angle probe (4MHZ-45degree, 8*9mm)

Angle probe (4MHZ-60degree, 8*9mm)

Angle probe (4MHZ-70degree, 8*9mm)

Angle probe (4MHZ-80degree, 8*9mm)

Angle probe (2MHZ-45degree, 8*9mm)

Angle probe (2MHZ-60degree, 8*9mm)

Angle probe (2MHZ-70degree, 8*9mm)

Angle probe (2MHZ-80degree, 8*9mm)

Probe T/R (5MHz-ф20mm, focus 15mm)

Probe T/R (2.5MHz-ф20mm, focus 15mm)

Connection cable to probe (BNC-BNC)

Connection cable to probe (BNC-Lemo 00)

Connection cable to probe (BNC-Lemo 01)

Connection cable to probe (Lemo 00-Lemo 01)

Lithium ion battery

Power adapter (4A/9V)

Power Cable

Comparison Sheet

Title	FD510	FD520	FD550
Measuring Range	0-6000mm	0-10000mm	0-10000mm
Material Velocity(m/s)	1000-15000	1000-15000	1000-15000
Gain(dB)	110dB	120dB	130dB
Frequency Range(MHz)	0.5-15M	0.5-15M	0.5-20M
Memory	500	1000	1000
independence setup	100	500	500
sz dB,ф	★	★	★
Peak Hold and Peak Memory	★	★	★
B scan	X	★	★
DAC	★	★	★
AVG	★	★	★
TCG	X	★	★
STANDARD(13 standards in-built)	★	★	★
Automated calibration( IIW )	★	★	★
Automated calibration(two hole )	X	X	★
6dB DAC	X	★	★
make video	★	unlimited	unlimited
pc software	★	★	★
updated online	★	★	★
curved surface correction	★	★	★
AWS	★	★	★
Pulse energy	★	★	★
Pulse width	★	★	★
Gate alarm	★	★	★
DAC alarm	★	★	★
continue working time	9 hours	12 hours	12 hours
Port Type	BNC	BNC	BNC
Overall dimension (mm)	238×160×48	238×160×48	238×160×48
Weight (kg)	1.0	1.0	1.0
