Product Details:
|
| Product Name: | Magnetic Yoke Flaw Detector | Model: | HCDX-Y2 |
|---|---|---|---|
| Voltage: | 240V，230V，220V，110V，36V Various Voltages | Duty Cycle: | 50%, Max On Time Is 90 Seconds |
| High Light: | split shell ndt equipment,ac ndt equipment,240v non destructive testing equipment |
||

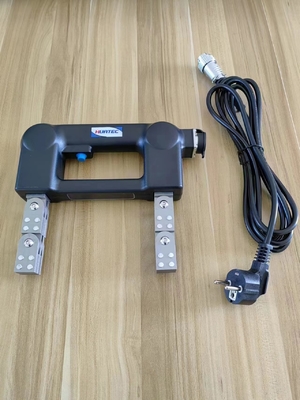

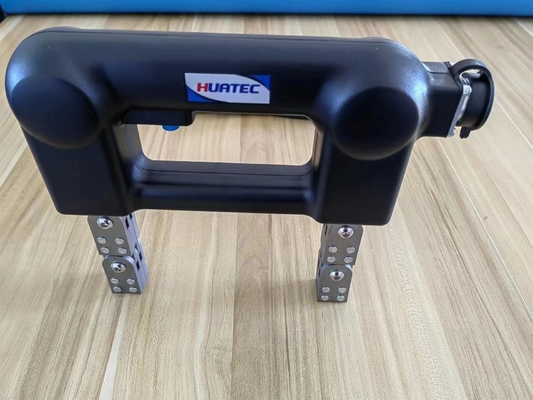

split shell 240V 230V 220V 110V 36V Various voltage AC magnetic yoke flaw detector
Basic function:AC magnetization, directly plugged in for use
| Model | HCDX-Y2 |
| Voltage | 240V,230V,220V,110V,36V Various voltages can be customized to meet the needs of different countries |
| Duty cycle | 50%, max on time is 90 seconds |
| Maintenance | The split shell is used for convenient maintenance, user can replace power switch,cable socket,lamp friendly |
| Heat dissipation | Space with air flow inside, low temperature rise |
| White and UV light | White light and ultraviolet light, touch controlled switch, adjustable brightness |
| Appearance | Controllable injection molding, no defects in appearance |
| Heat resistance | The shell has good heat resistance and does not deform at high temperature |
| Color | The shell color can be customized |
Optional Features:
1. DC magnetization, with DC magnetization power supply
2. AC magnetization, equipped with AC magnetization power supply (inverter power supply)
3. White light
4. Ultraviolet light
Optional accessory 1:
Four piece backpack set: belt, yoke backpack, power backpack, magnetic suspension and contrast agent backpack
Optional accessory 2:
Bevel angle, sharp angle, flat angle, extended angle
