DG-50 365nm HUATEC Uv Light Torch , LED Ultraviolet Lamp

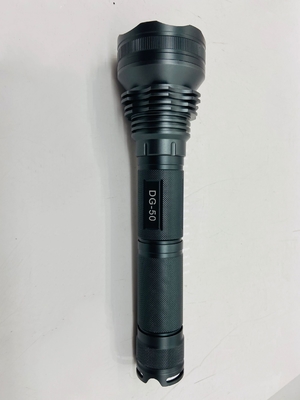

DG-50 HUATEC LED Ultraviolet Torch Lamp

1· Introduction

DG-50 pocket lamp type LED Ultraviolet Lamp is professional portable UV Lamp researched and developed by our company. A complete range of specifications of UV Lamp can meet different requirements. The series possesses ultra-high brightness, long working hours and stable quality etc., and it conforms the National Pressure-bearing Equipment NDT Standard (NB/T 47013-2015).

The National Pressure-bearing Equipment NDT Standard (NB/T 47013-2015) requires Black Light Lamp / Ultraviolet Lamp as follows:

21. Exposure intensity on the workpiece surface must be greater or equal to 1000 uW/cm².
21. The wavelength should be 315nm~400nm, and the peak value wavelength should be 365nm.
21. Light source should meet the specification of GB/T5097.

2. Technical Parameters

3. Main Application

21. Fluorescence Penetrate Testing
21. Fluorescence Magnetic Particle Flaw Detection
21. Fluorescence Leak Detection

Other Application

21. Oil Stain, Blot Testing
21. Special Gas, Oil and Gas Pipeline Testing
21. Fluorescence Reflection Detection for Special Materials
21. Criminal Investigation and Legal Medical Expert Survey
21. Paper Money Authentication, Jewel Appreciation
21. Agriculture, Foodstuff, Medical Treatment and other relevant industries.

4. Characteristic and Performance

21. HUATEC DG-50 adopts high-power 365nm Ultraviolet band LED Lamp

Beads produced by Japanese NICHIA company, 100% free from UV-B and UV-C element, spectrum is pure.

21. The lifetime of Lamp Beads reach up to 20000 hours, efficient, energy conservation and environmental protection.
21. Quick Start, can reach the maximum illuminance as soon as switch on.
21. Ultra-low power consumption, high efficiency. Stand-by time is far more than likewise products.
21. Cold light source makes cold operation, outputs the illuminance lasted and steadily.
21. Optical filter is black vitaglass.
21. High strength aviation aluminum alloy shell with anodize surface.
21. Enhance thermal design, can be used continuous for long time.

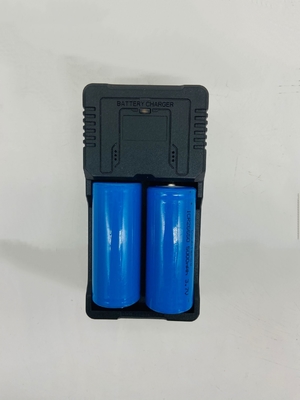

21. Configure dedicated high speed charger for each lamp.
21. Anti magnetic field interference function makes it possible to work in the strong magnetic field.
21. Dust prevention and waterproof standards reach IEC 60529- IP66 grade, suit to different environments, more safety and reliable.

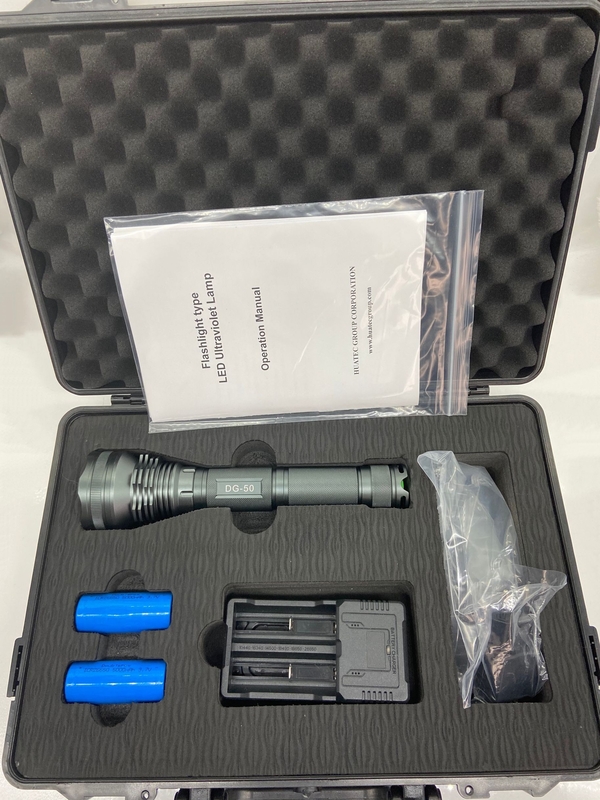

5. Configuration List
