AC Electromagnetic Yoke HCDX-Y2

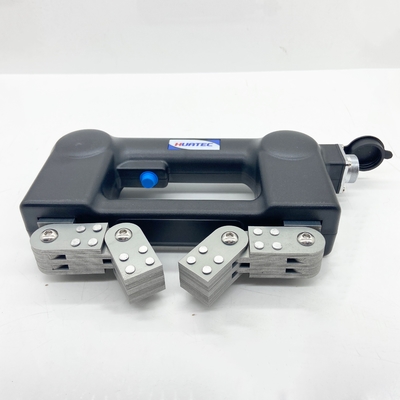

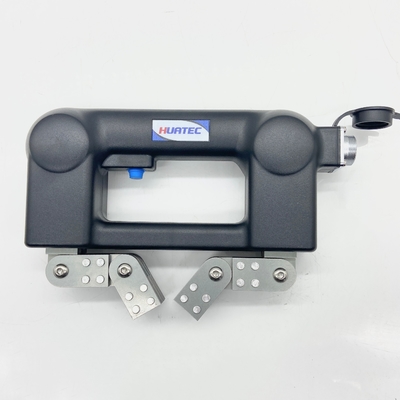

The HCDX-Y2 is an AC electromagnetic yoke, ergonomically designed to improve productivity. The yoke generates a strong AC magnetic field for the detection of surface indications during magnetic particle testing.

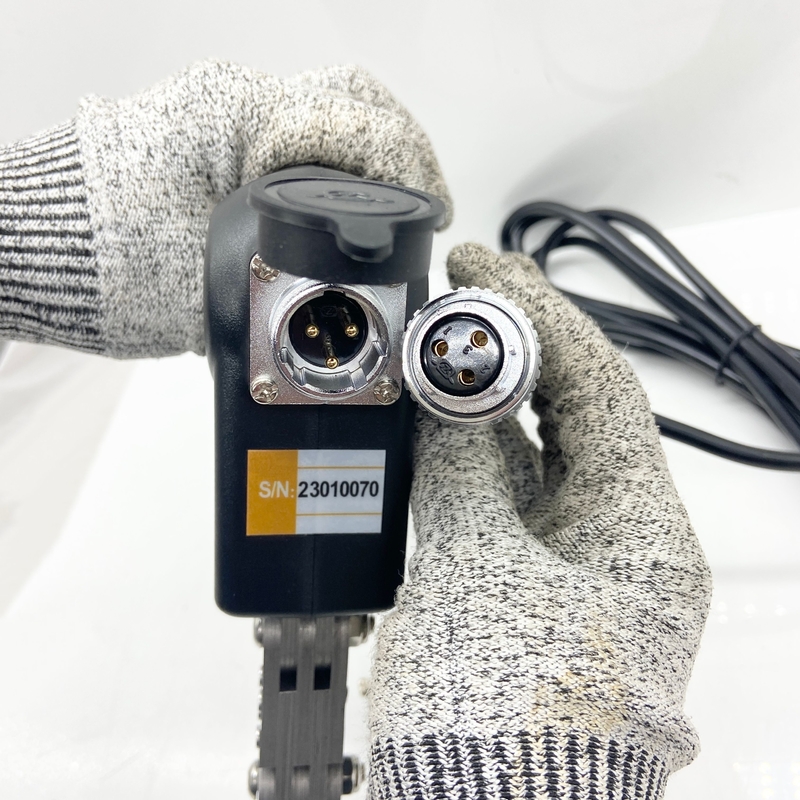

Lightweight with an ergonomic grip and trigger, the HCDX-Y2 is designed for the rugged demands of field inspection. Featuring replaceable spare parts body design, isolated trigger switch,power cord,mainboard,UV & white light lamp and legs all can be replaced by user, the HCDX-Y2 is easily serviceable not stop a job from getting done.
A super bright LED attachment is available as an optional item to help illuminate the inspection area while simultaneously magnetizing the part. All-in-one Kits are also available, including Red and Gray magnetic powders, a yellow paint marker, and cleaning cloth, for a full inspection kit in one convenient carrying case.
BENEFITS
Increase inspector productivity and reduce physical fatigue
• Less arm strain, wrist fatigue and physical stress help operators get more done due to the lightweight and ergonomic design.
• Easily position the yoke in any direction with lightweight, heavy-duty and powerful electronics components.
Keep tools in service with a design that’s built to last
• Cords and triggers can be easily replaced, so work doesn’t stop and tools aren’t scrapped due to accidental damage.

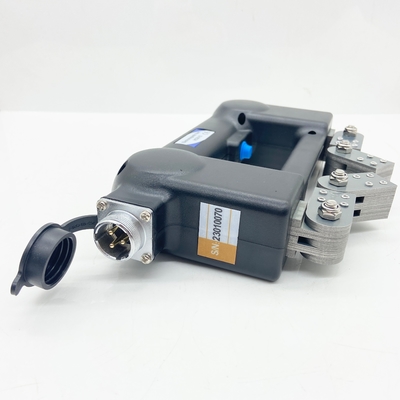

• Prevent dust and dangerous water damage with an IP54 o-ring sealed housing.
FEATURES
• Ergonomic, light-weight design
• IP54 sealed housing resists dust and water

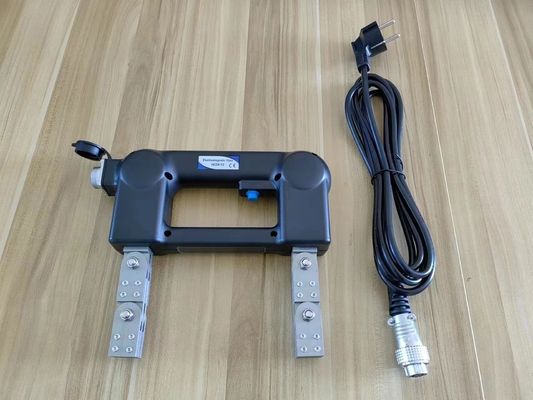

• Field-swappable power cord
• Isolated, replaceable trigger switch
• Steel shields for leg protection
• Exceeds ASTM lifting specifications

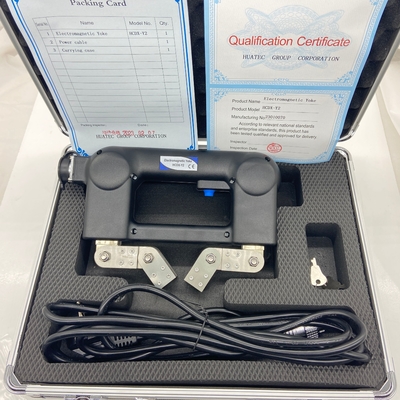

• Convenient carrying case supplied with all yoke shipments

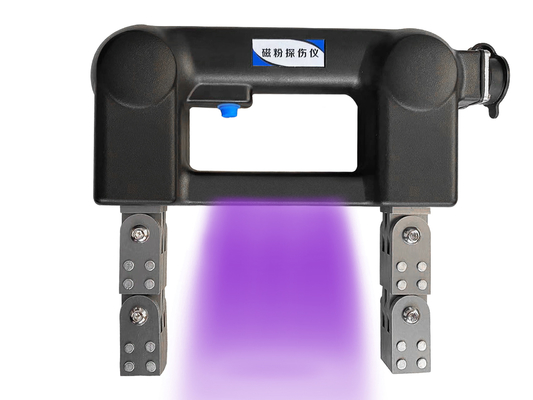

• Optional LED UV & White yoke light lasts longer and is more intense compared to traditional bulbs
• Two power supply modes are optional:
110V/220V/240V Single-phase AC power supply (straight plug mode);
DC magnetization power supply (DC battery pack with digital display screen)
• Optional special waist pack can carry magnetized power battery, magnetic suspension, contrast agent etc.
APPLICATIONS
Defect location: Surface Ideal for:
• Field Testing
• Difficult to reach areas
• Spot, weld and in-service inspections Defect examples:
• Seams
• Tears
• Shrink cracks
• Quenching cracks
• Fatigue cracks
SPECIFICATION COMPLIANCE
JB/T7411-2012
ASTM E1444-05
ASTM E709
EN10228-1:1999
ISO 9934
ASTM E 3024
Parameters index
|
Model Items |
HCDX-Y2 | HCDX-Y7A | |
| Electrical Requirements | AC110-115V 50/60Hz,AC220-230V 50/60 Hz,AC240V 50/60Hz | ||
| Waveform | AC | ||
| Tangential Field Strength | > 2kA/m at midpoint between legs / poles | ||
| Working temperature | -10～+40℃ | ||
| Duty Cycle | 50%, max on time is 90 seconds | ||
| Ingress Protection (IEC 60259) | IP54 | ||
| Relative humidity | <80% | ||
| Sensitivity | ASTM E1444-05,ASME 2007 page number V | ||
| DC power pack | X | ● | |
| AC working current | AC2.2A | ||
| DC working current | X | DC 1.5A | |
| Battery charging time | X | 3小时 | |
| Battery working time | X | 6h | |
| Leg / Pole Span | 0~220mm | ||
| Leg size | 22*22mm | ||
| Power cord length | 3M | ||
| Lifting Force | A C | ≥7.1kg (69N) | |
| D C | ≥22.2kg (216N) | ||
| Weight | Yoke | 2.3kg | |
| DC Battery | X | 0.6kg | |
Note: “X” not included, “●” included
Standard package
|
HCDX-Y2 |
|
|
B-200S |
|
Optional accessories
Horse angle leg
1A
1B
LED White lamp
White light illumination:≥2000Lux
Light source height: 92mm
Exposure range: 220*100mm
Lamp size:82*22mm(L*W)
LED UV Lamp
Ultraviolet wavelength: 365nm
Ultraviolet irradiance: ≥2000uw/cm2
Light source height: 92mm
Exposure range: 220*100mm
Lamp size: 82*22mm(L*W)
