AC DC Electromagnetic Yoke HCDX-Y9 Non Destructive Testing

AC DC Electromagnetic Yoke HCDX-Y9 Non Destructive Testing
AC DC Electromagnetic Yoke HCDX-Y9 Non Destructive Testing AC DC Electromagnetic Yoke HCDX-Y9 Non Destructive Testing

Large Image :  AC DC Electromagnetic Yoke HCDX-Y9 Non Destructive Testing

Product Details:
Place of Origin: CHINA
Brand Name: HUATEC
Certification: CE ISO
Model Number: HCDX-Y9
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Packaging Details: Carton
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union,PAYPAL
Supply Ability: 500 PCS Per month

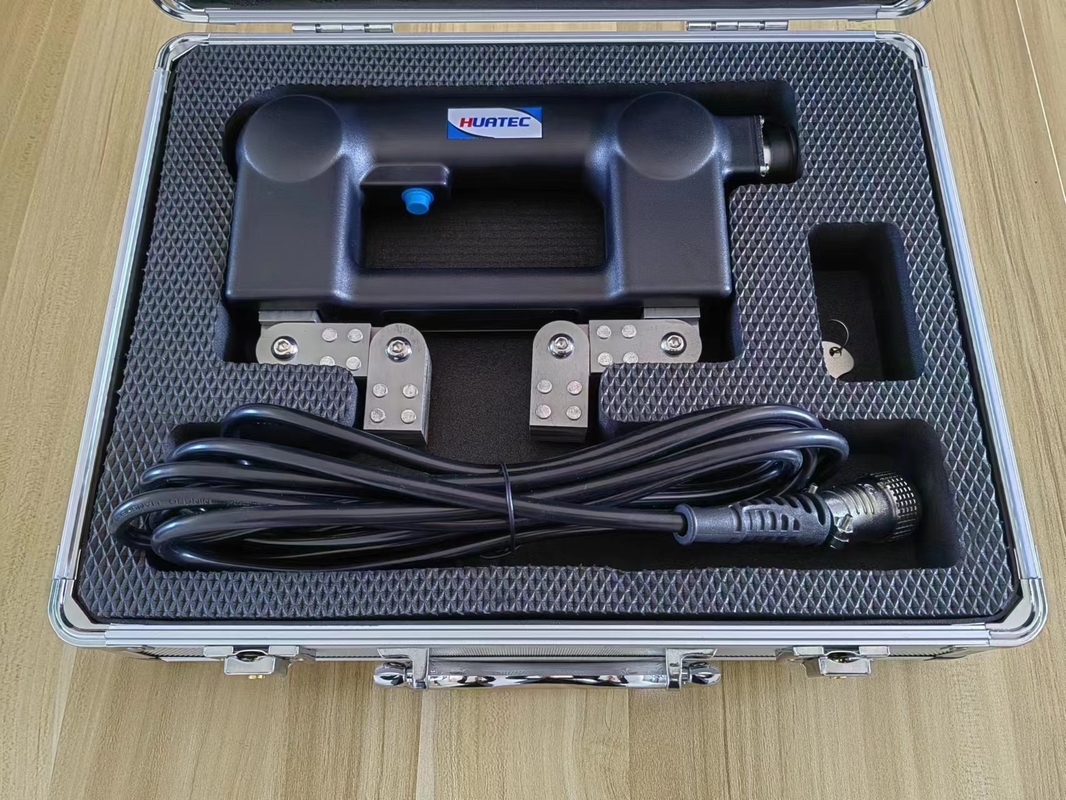

AC DC Electromagnetic Yoke HCDX-Y9 Non Destructive Testing

Sensitivity: ASTM E1444-05,ASME 2007 Page Number V AC Working Current: AC2.2A DC 1.5A
Power Cord Length: 3M Tangential Field Strength: > 2kA/m At Midpoint Between Legs / Poles
Duty Cycle: 50%, Max On Time Is 90 Seconds
High Light:

ac dc electromagnetic yoke


non destructive testing electromagnetic yoke


non destructive testing ac electromagnetic yoke

AC DC  Electromagnetic Yoke HCDX-Y9
The HCDX-Y2 is an AC electromagnetic yoke, ergonomically designed to improve productivity. The yoke generates a strong AC magnetic field for the detection of surface indications during magnetic particle testing.
Lightweight with an ergonomic grip and trigger, the HCDX-Y2 is designed for the rugged demands of field inspection. Featuring replaceable spare parts body design, isolated trigger switch,power cord,mainboard,UV & white light lamp and legs all can be replaced by user, the HCDX-Y2 is easily serviceable not stop a job from getting done.

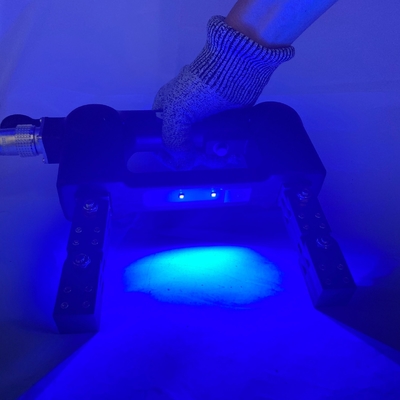

A super bright LED attachment is available as an optional item to help illuminate the inspection area while simultaneously magnetizing the part. All-in-one Kits are also available, including Red and Gray magnetic powders, a yellow paint marker, and cleaning cloth, for a full inspection kit in one convenient carrying case.

Parameters index



Electrical Requirements AC110-115V 50/60Hz,AC220-230V 50/60 Hz,AC240V 50/60Hz
Waveform AC
Tangential Field Strength > 2kA/m at midpoint between legs / poles
Working temperature -10~+40℃
Duty Cycle 50%, max on time is 90 seconds
Ingress Protection (IEC 60259) IP54
Relative humidity <80%
Sensitivity ASTM E1444-05,ASME 2007 page number V
DC power pack X
AC working current AC2.2A
DC working current X DC 1.5A
Battery charging time X 3小时
Battery working time X 6h
Leg / Pole Span 0~220mm
Leg size 22*22mm
Power cord length 3M
Lifting Force A C ≥7.1kg (69N)
D C ≥22.2kg (216N)
Weight Yoke 2.3kg
DC Battery X 0.6kg

Note:“Xnot included,included



Increase inspector productivity and reduce physical fatigue

• Less arm strain, wrist fatigue and physical stress help operators get more done due to the lightweight and ergonomic design.

• Easily position the yoke in any direction with lightweight, heavy-duty and powerful electronics components.

Keep tools in service with a design that’s built to last

• Cords and triggers can be easily replaced, so work doesn’t stop and tools aren’t scrapped due to accidental damage.

• Prevent dust and dangerous water damage with an IP54 o-ring sealed housing.



• Ergonomic, light-weight design

• IP54 sealed housing resists dust and water

• Field-swappable power cord

• Isolated, replaceable trigger switch

• Steel shields for leg protection

• Exceeds ASTM lifting specifications

• Convenient carrying case supplied with all yoke shipments

• Optional LED UV & White yoke light lasts longer and is more intense compared to traditional bulbs

• Two power supply modes are optional:

 110V/220V/240V Single-phase AC power supply (straight plug mode);

 DC magnetization power supply (DC battery pack with digital display screen)

• Optional special waist pack can carry magnetized power battery, magnetic suspension, contrast agent etc.


Defect location: Surface Ideal for:

• Field Testing

• Difficult to reach areas

• Spot, weld and in-service inspections Defect examples:

• Seams

• Tears

• Shrink cracks

• Quenching cracks

• Fatigue cracks



ASTM E1444-05



ISO 9934

ASTM E 3024
