Product Details:
|
| Product Name: | X-ray Tube | Model: | HXC-16B |
|---|---|---|---|
| Shell: | Glass | Gross Weight: | 8kgs |
| High Light: | industrial systems glass x ray tube,gost approved glass x ray tube,industrial systems x ray glass tube |
||

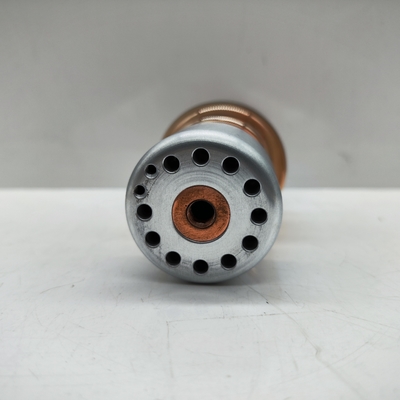

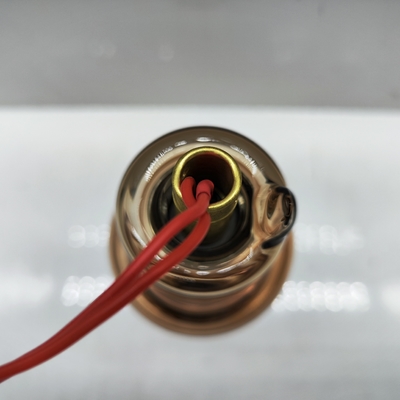

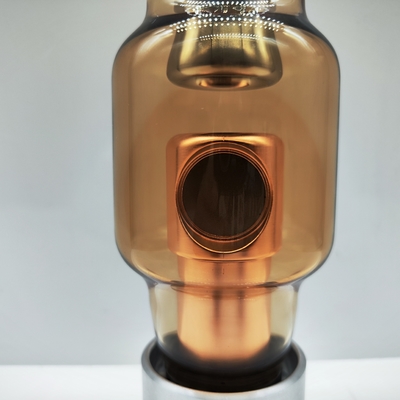

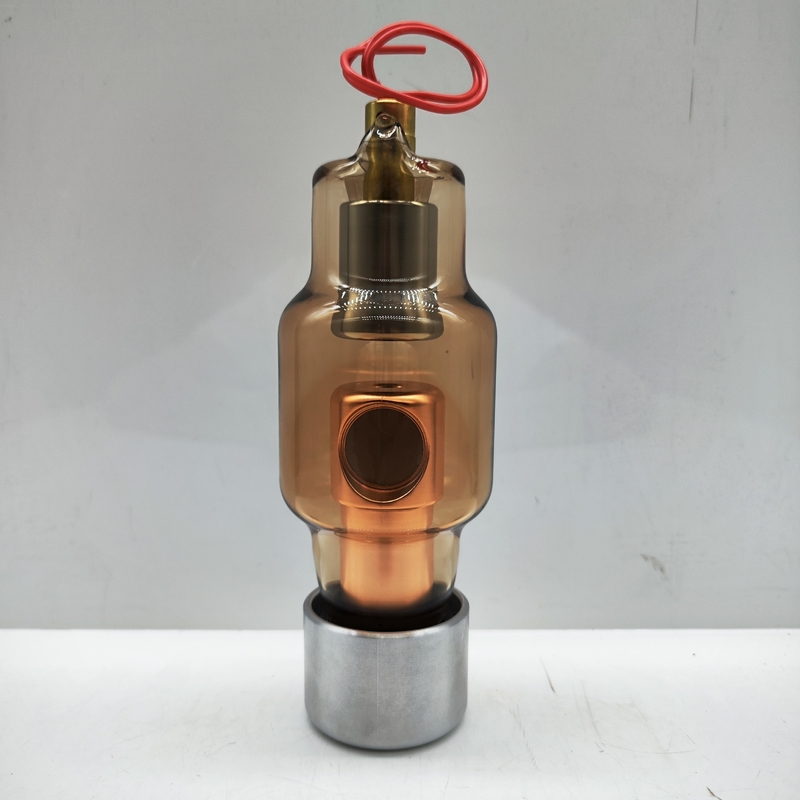

X ray glass tube industry flaw inspection equipment X-ray inspection
TUBE TYPE:
HXC-16D
APP’LICATION:
It is mainly used for security inspection X-ray machine and industry x ray flaw detector also.
It is designed for main applications used in x-ray equipment Heimann Smith for security check
TECHNICAL DATA
| Nominal X-ray tube voltage(kv) | Filament characteristic(v) | target | |
| 160 | I fmax=4.5A时,Uf=5±1 | material | angle |
| W | 25° | ||
| Maximum continuous heat dissipation (w) | Nominal focal spot value | Weight(kg) | Inherent filtration(mmAl) |
| 500 | 0.8 | ≤2 | 1.0 |
CHARACTERISTICS
1.Rating characteristics
Use method and precautions
1. The installation or operation of the pipe must be carried out by professional personnel; the outer surface of the pipe is made of glass, so care should be taken in the process of transportation and installation to avoid damage to the insulating green and cooling medium. The pressure strength of the oil should not be lower than 45. Before installation, the outer surface of the pipe should be cleaned and dry exploded. 4. The pipes that are used for the first time or reused for more than four weeks should be trained according to the following steps before putting into use. When the current of the discharge tube rises to the maximum value of 5, the unstable voltage of the tube should be maintained. 5. Before shutdown, the tube voltage should be reduced and then shut down. 6. X-ray tube assembly must have radiation protection. 7. The dose standard is formulated according to the minimum skin surface contact distance and the minimum filtration of effective ray beam. 8. Only one overload may cause damage. Provide appropriate overload protection circuit. Select a suitable input condition according to the operation procedures and the pipe characteristic chart. When the pipe is discarded, it shall be carried out according to the relevant environmental protection regulations of the place of use. If any abnormal situation is found in the process, please immediately cut off the power source and contact HUATEC Group Corporation. 11. The above technical parameters are standard values. Please contact HUATEC Group Company for storage and transportation conditions for any confirmation not mentioned here. 1. The packed X-ray tube should be stored at the temperature of no less than 5C, relative humidity of 80%, no corrosive gas and good ventilation. The transportation requirements shall be in accordance with the provisions of the order contract. 6, After sales quality commitment: under the condition of complying with the storage, transportation and use rules, our company will replace the packed X-ray tubes for free due to manufacturing quality problems since the date of delivery
