0~300 Mt~ 3000 Mt Clear Lcd Display Digital Gauss Meter Tesla Meter

0~300mT~ 3000mT Wide Range Easy Operation And Clear LCD Display Digital Gauss Meter Tesla Meter

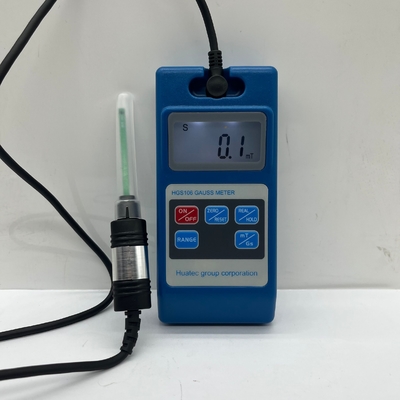

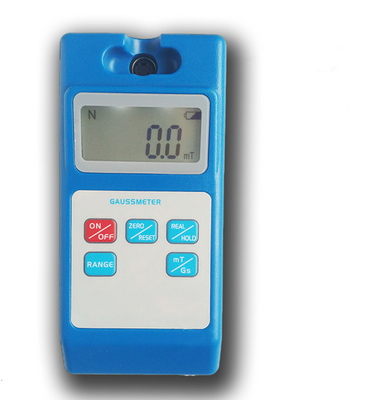

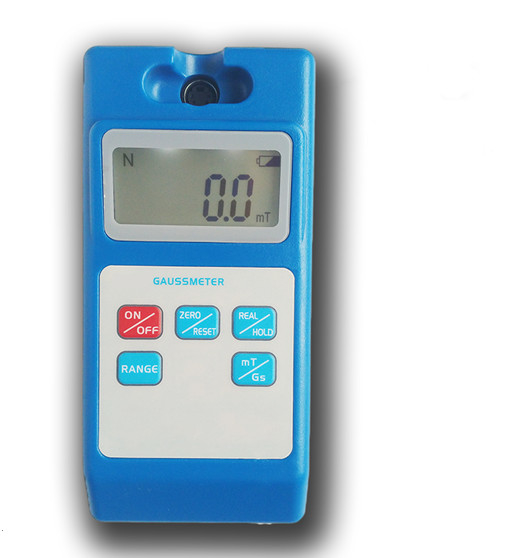

HGS-106 is a handheld digital gauss meter controlled by single chip microcomputer, which can be used to measure the magnetic induction intensity of dc magnetic field, radiation magnetic field and other magnetic fields. The instrument can be carried around, with a wide range, easy operation and clear LCD display. It has many functions, such as measuring/peak maintaining, MT/GS unit conversion, automatic zero adjustment by push button, 300MT/3000MT range conversion, etc.

Main technical indicators

1. Measuring range: 0~300mT~ 3000mt

2. Frequency range: 10Hz~200Hz

3. Accuracy: 0~100mT 1%, 2% above 100mT (measured in uniform magnetic field)

4. Resolution: DC×1:0.00 ~ 300.00mT. 0.01mT

DC× 10:0.0 ~ 3000.0mt 0.1mt

5. Measured magnetic field: dc magnetic field (static magnetic field)

6. Function description: peak maintenance function

Gs (gauss) /mT (millitesla) can be switched freely

7. N/S polarity display during dc measurement. N for positive and S for negative

8. Display button fast automatic zero

9. Ambient temperature: 5℃~40℃

10. Relative humidity: 20%~80% (no condensation)

11. Power supply: four no.5 batteries are externally connected with voltage stabilizing power

12. External size: 150mm (L) ×70mm (W) ×30mm (H)

13. Instrument weight: 450g

14. Display mode: 41/2 LCD

15. Display unit: mT/Gs
