FD540mini SD card Touch Screen Ultrasonic Flaw Detector

FD540mini SD card Touch Screen Ultrasonic Flaw Detector
FD540mini SD card Touch Screen Ultrasonic Flaw Detector FD540mini SD card Touch Screen Ultrasonic Flaw Detector

Large Image :  FD540mini SD card Touch Screen Ultrasonic Flaw Detector

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: FD540mini
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD3680-USD4160/SET
Packaging Details: aluminum alloy box+Outer carton packaging
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10 Sets/Month
Contact Now

FD540mini SD card Touch Screen Ultrasonic Flaw Detector

Description
Bandwidth: 0.1MHz～20MHz Wave Filter: 1M~5M
Resolution: 800×480 Quantitative Mode: DAC Curve，AVG(DGS) Curve
Highlight:

Touch Screen Ultrasonic Flaw Detector

,

SD card Ultrasonic Flaw Detector

,

FD540mini Ultrasonic Flaw Detector

FD540mini SD card Touch Screen Ultrasonic Flaw Detector



Brief introduction

FD540mini ultrasonic flaw detector is a new type of ultrasonic testing product launched by our company, widely used in industries such as boilers, pressure vessels, power, petroleum, chemical, offshore oil, pipelines, shipbuilding, automobiles, mechanical manufacturing, metallurgy, metal processing, steel structures, railway transportation, nuclear power, universities, etc. It can conveniently detect, locate, evaluate and diagnose various internal defects (cracks, looseness, pores, inclusions, etc.) in workpieces . This digital ultrasonic flaw detector has a compact structure, stable waveform, strong endurance, high sensitivity, fast response, and a maximum repetitive emission frequency of up to 10000Hz. It is an extremely portable ultrasonic flaw detection product.



Technical parameters

Detection range

10m(Longitudinal wave carbon steel)

(Metrological performance requirements:

≥3500mm)
Pulse mode Sharp pulse, square wave, dual-square wave
Pulse voltage 25V～300V adjustable Stepping 25V
Pulse width 0ns～500ns continuously adjustable,10ns pace
Damping strong and weak adjustable

Pulse repetition

frequency

Automatic or manual, continuously adjustable from 100Hz to 1000Hz,

with a pace of 10Hz
Gain 120dB, pace 0.1dB, 1dB, 10dB
Bandwidth 0.1MHz～20MHz
Wave filter 1M~5M
Display screen 5.0-inch LCD, the effective display size is 108mm long and 64mm wide
Resolution 800×480
Instrument interface Dual LEMO-00 C5
Alarm Gate A, B alarm
Output interface Type-c USB
Detection mode Full wave, positive half wave, negative half wave, RF
Gate Independent A,B
Measurement mode Peak, wave side
Memory SD card 1G
Save content Single frame, multi-frame continuous recording (≤200 frames)
Quantitative mode DAC curve,AVG(DGS) curve
Auxiliary functions

Support touch, virtual keyboard, PD fast

charging ,automatic gain, peak memory, freeze

Flaw detection

standards

 AWS D1.1/D1.5,NB/T 47013,GB/T 29712,GB/T 11345
Size and weight 183mm×113mm×45mm 780g,battery included
Battery 12 hours
Unit Metric,imperial
Operating temperature -10℃～55℃
Charger “Genaral”AC(100～240V, 50～60Hz)
Resolution

36dB

(Metrological performance requirements:≥26dB)
Dynamic range

40dB

(Metrological performance requirements:≥26dB)
Sensitivity margin

60dB

(Metrological performance requirements:≥42dB)
Vertical linearity

2.8%

(Metrological performance requirements:≤6%)

Horizontal

linearity

0.6%

(Metrological performance requirements:≤2%)
Language Chinese/English

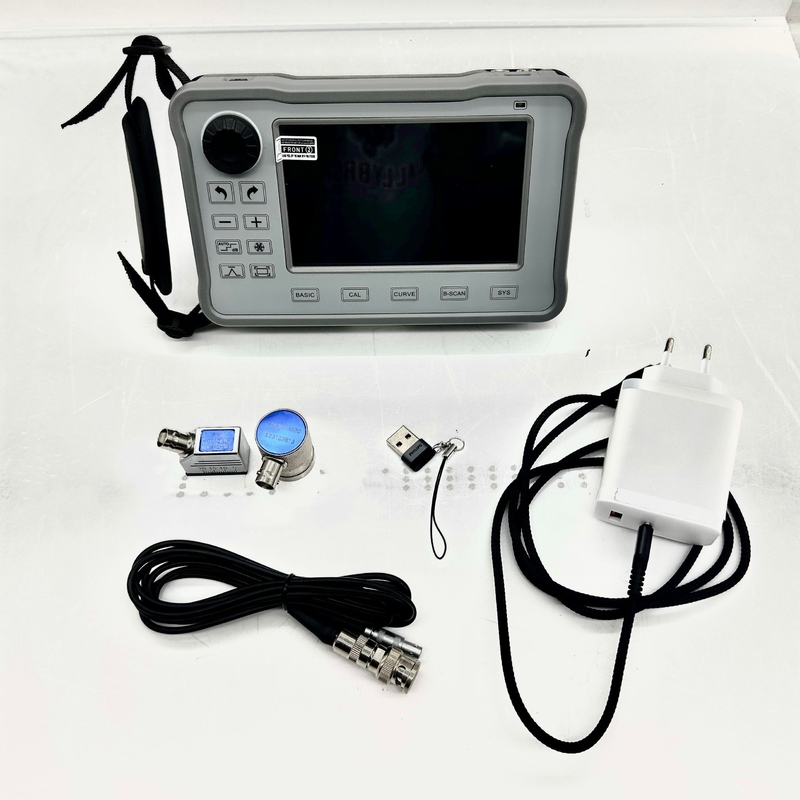

Standard configuration

Serial Number name number
1 Host FD540mini 1
2 Probe (high-precision straight probe, angle probe) 2
3 Probe line 2
4 Charger 1
5 Power line 1
6 Instruction manual 1
7 Certificate of conformity 1
8 Warranty card 1
9 Power bank 1



FD540mini SD card Touch Screen Ultrasonic Flaw Detector 0

FD540mini SD card Touch Screen Ultrasonic Flaw Detector 1FD540mini SD card Touch Screen Ultrasonic Flaw Detector 2FD540mini SD card Touch Screen Ultrasonic Flaw Detector 3
