Product Details:
|
| Horizontal Linearity: | Within ±0.6% | AC Charger: | AC 65W Fast Charging Input 100 ～ 240V±10% 50/60Hz±3Hz |
|---|---|---|---|
| Display And Screen Size: | 5.0 Inch LCD HD Screen | Sensibility: | 80 DB Or More (5 MHz Narrow Band) |
| Adjustable Gain: | Max 120dB Min 0.1dB Pitch | Vertical Linearity: | Within ±2.8% |
| Measurement Resolution: | 0.1mm | Measurement Range: | 0.7 ～ 15mm |
| High Light: | 65w flaw detector,hd lcd ultrasonic flaw detector,fast charging ultrasonic flaw detector |
||
The Ultrasonic Flaw Detector is a specialized device designed to detect defects in metal parts, such as cracks, voids, and other structural flaws. It features advanced ultrasonic technology, providing repeatable measurements with an accuracy of ±0.1mm for each location and a horizontal linearity of ±0.6%. This device is incredibly easy to use and has a long-lasting battery life of up to 12 hours, depending on usage conditions. Its external dimensions measure 183mm (W) x 113mm (H) x 45mm (D) and it weighs 780g. It can operate in an ambient temperature range of 0°C to 50°C during operation and -20°C to 60°C during storage. This Ultrasonic Defect Detector is an indispensable tool for industrial applications, such as quality control, maintenance, and safety inspections.
| Product Property | Technical Parameter |
|---|---|
| External dimensions(mm),weight(g) | 183mm(W)×113mm(H)×45mm(D) 780g |
| Operating time | About 12h(Varies Depending On User Usage Conditions) |
| Object to be measured | Depth Of The Induction Hardened Layer |
| Adjustable gain | Max 120dB Min 0.1dB Pitch |
| Measurement repeatability | ±0.1mm(per One Location) |
| Ambient temperature | 0～50℃(during Operation)-20～60℃( During Storage) |
| Vertical linearity | Within ±2.8% |
| Horizontal linearity | Within ±0.6% |
| Charging time | 1.5h |
| Sensibility | 80 DB Or More (5 MHz Narrow Band) |

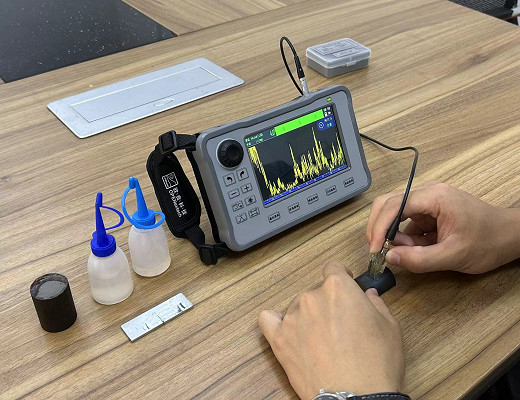

The HUATEC TG-8000 Ultrasonic Flaw Detector is a powerful tool for detecting potential imperfections and damages in a variety of materials. With a minimum order quantity of 1 set, this set comes in a black hard plastic packaging box, and has an external dimensions of 183mm(W)×113mm(H)×45mm(D) and a weight of 780g. It has a charging time of 1.5h and can be charged with an AC 65W Fast Charging device with an input of 100 ～ 240V±10% 50/60Hz±3Hz. The operating time of the device is approximately 12h, depending on the user's usage conditions, and the adjustable gain is between Max 120dB and Min 0.1dB Pitch. The HUATEC TG-8000 Ultrasonic Flaw Detector is CE certified, and payment terms can be made through T/T in advance, or Paypal, or Western Union. Delivery time is estimated to be 5-7 working days.
The HUATEC TG-8000 Ultrasonic Flaw Detector is ideal for a large range of applications, from automotive manufacturing to aerospace engineering, and it is an invaluable tool for detecting and identifying any potential flaws or damages in metal, ceramic, composite, and plastic components. This device makes it possible for engineers and technicians to quickly and accurately locate any irregularities or damages in parts that cannot be seen with the naked eye. It can also be used to evaluate the integrity of welds and to inspect the surface of materials for any potential defects. This device is highly reliable and easy to use, and it is a great tool for ensuring the highest quality of products and components.
HUATEC TG-8000 Ultrasonic Flaw Detector is a professional tool for ultrasonic deficiency scanning, flaw detection and error location. It has adjustable gain up to 120dB with min 0.1dB pitch, and a measurement repeatability of ±0.1mm per one location. It has an AC charger of 65W Fast Charging Input 100 ～ 240V±10% 50/60Hz±3Hz and takes 1.5h to charge. It has a working and storage temperature of 0～50℃ and -20～60℃, respectively.
The Ultrasonic Flaw Detector is packaged in a foam-lined box for protection during shipping. The box is sealed with reinforced tape to ensure the product is secure during transit. The package is shipped via an insured, reliable carrier to ensure prompt and safe delivery.
