Product Details:
|
| Observable Film Blackness:: | <5.0 | Average Color Temperature: | 6500K |
|---|---|---|---|
| Maximum Viewing Screen Area: | 220x80(mm) | Magnifying Glass: | Double Magnifying Glass |
| High Light: | 6500k led film viewer,6500k x ray film viewer,double magnifying glass x ray film viewer |
||

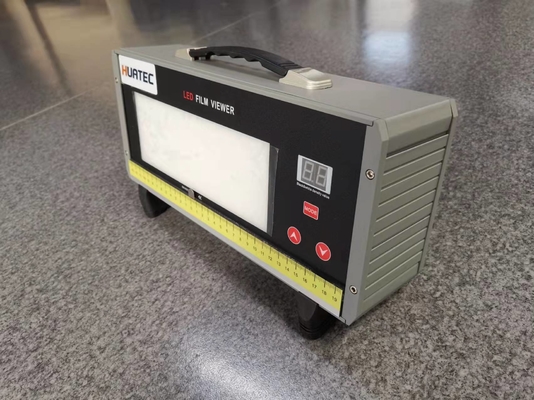

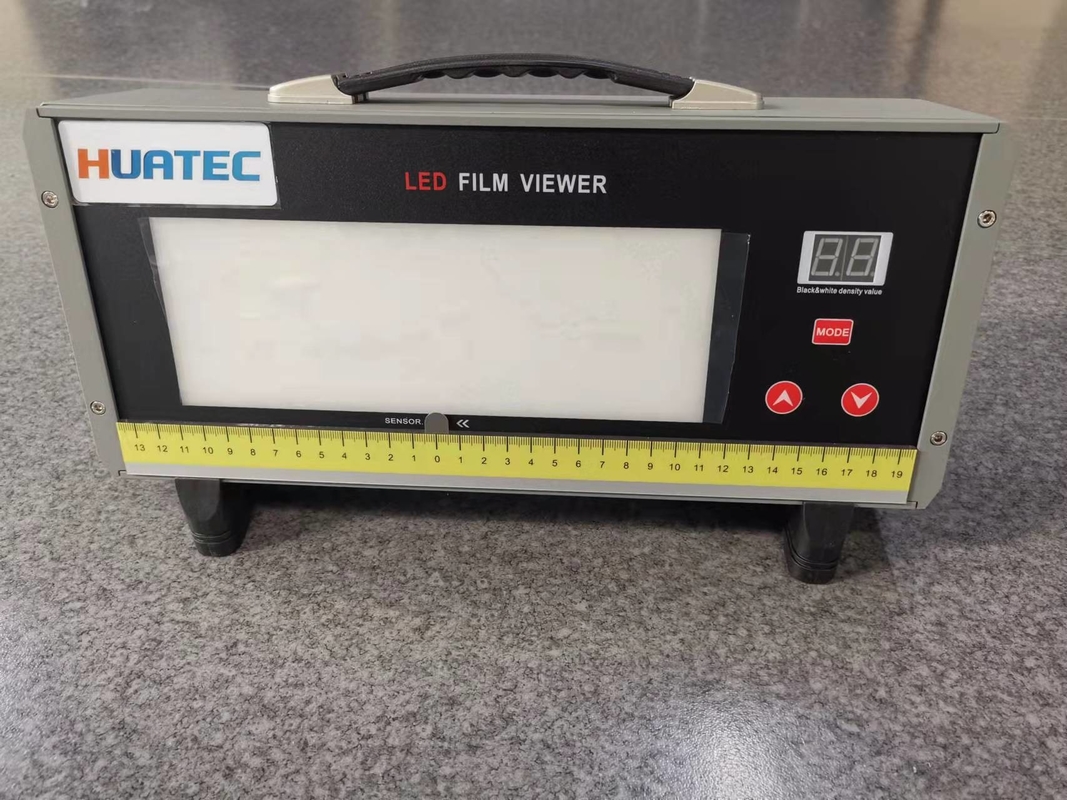

Film Viewer Led X Ray Film Viewer
HFV-600C LED industrial film viewer is a new product developed by HUATEC Group for the latest standards NB/T 47013-2015 "Non-destructive testing of pressure equipment" and GB/T 19802-2005 "Industrial radiographic film viewer". It has small size, light weight, low power consumption, uniform brightness, continuous adjustment and convenient carrying.
Main Technical Specification
| Observable film blackness | <5.0 |
| Average color temperature | 6500K |
| Maximum viewing screen area | 220x80(mm) |
| Observation surface uniformity | above 0.9 |
| Power: | AC: 50-60Hz/100-230VAC, DC: 24V Power consumption 120W |
| Dimensions | 360x195x95 (mm) |
| Magnifying glass | double magnifying glass |
| Ambient temperature used | -20°C-40°C |
| Display range of black and white density value | -20°C-40°C |
| Luminance | 300000cd/㎡(800000Lux) |
Standard delivery
