Metal Shell Fd201b Digital Ultrasonic Flaw Detector With Calibration Certificate



1. Automated display precise flaw location (Depth d, level p, distance s, amplitude, sz dB, ф)
2. Automated switch three staff gauge ((Depth d, level p, distance s)
3. Convenient to make and use DAC and AVG to evaluate the echo, the curve can be modified and compensated
4. Ten independence setup, any criterion can be input freely, we can work in the scene without test block
5. Big memory of 300 A graph and 30000 thickness value
6. Automated gain and gain scan, automated echo degree
7. Peak hold and Peak memory
8. Powerful PC software and reports can be export to excel
9. RS232/USB
10. The embeded software can be online updated
11. Li battery, continue working time up to 10 hours
12. Display freeze
13. Lock and unlock function of system parameters

14.Dormancy and screen savers
15. Electronic clock calendar
16. Two gates setting and alarm indication

Title	Parameter	Title	Parameter
Measuring Range(mm)	2.5~ 5000	Measurement Mode	Single, Dual, Thru
/ertical Linearity Error	<3%	Reject	0~80%
Horizontal Linearity Error	<0.2%	Pulse Displacement(μs)	-20 ~+3400
Sensitivity Leavings	>60dB	Zero(μs)	0.0~ 99.99
Dynamic range	>32dB	Port Type	BNC
Resolving Power	240	Operating Temperature (℃)	-20~50
Frequency Range(MHz)	0.5~15	HxW×D(mm)	240×180×50
Gain(dB)	0~110	Weight(kg)	1.8
Material Velocity(m/s)	1000~9999

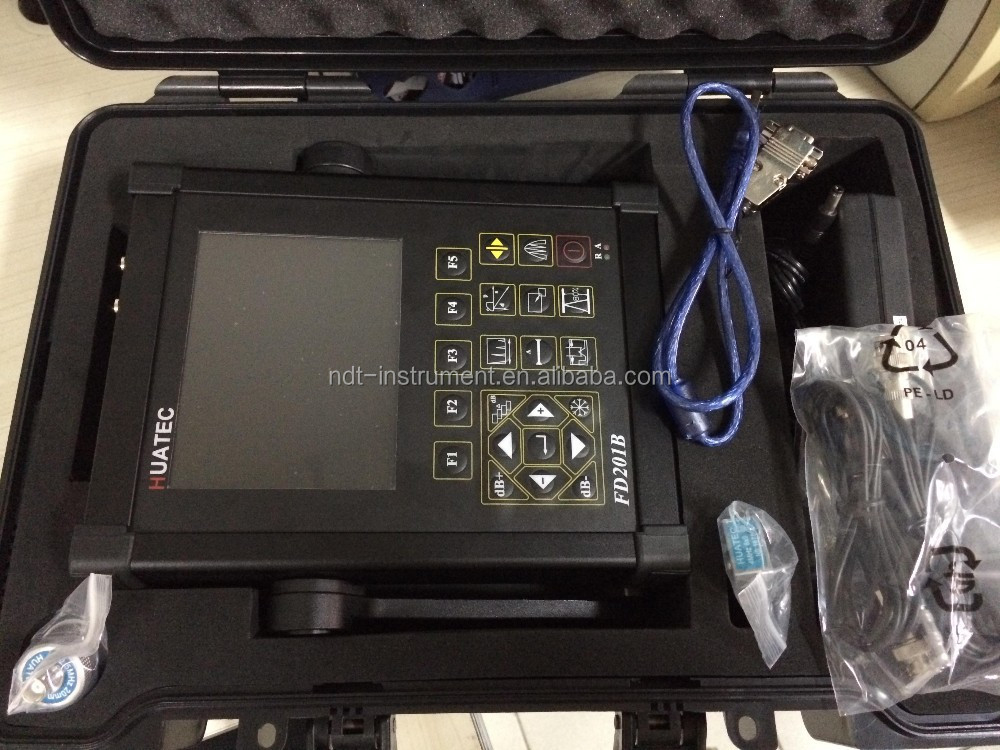

Standard delivery
Digital Ultrasonic Flaw Detector Main unit
2.5MHz-ф20 straight probe
4MHz-8x9mm, 60 degree angle probe
4A/9V power adapter
Probe connection cable (BNC to BNC)
Probe connection cable (BNC to LEMO)
USB2.0 –RS232 converter
Instruction manual
Calibration certificate
Carrying case



Additional accessories
Data managing software
Data managing cable RS232
Leather bag
All kinds of angle and straight probe, double crystal probe at any size with frequency
0.5—15MHz
Connection cable for probe LEMO and BNC
Lithium ion battery
Power adapter (4A/9V)
Test block V1
Test block V2
Test block DAC, ASME etc
