Product Details:
|
| Product Name: | Portable Phased Array Ultrasonic Flaw Detector | Model: | HPA-500 |
|---|---|---|---|
| Modular Configuration: | L-Scan, S-Scan, L-C-Scan, S-C-Scan, Butt-Weld, CrankShaft , Pipeline, TOFD, UT(Conventional) | Display: | 11-inch 800X600 TFT Color Display |
| High Light: | Water-Proof Touch Screen Ultrasonic Flaw Detector,Phased Array Probes Ultrasonic Flaw Detector,Whole-Process Data Logging Ultrasonic Flaw Detector |
||
Whole-Process Data Logging Phased Array Probes Portable Phased Array Ultrasonic Flaw Detector Water-Proof Touch Screen
Introduction

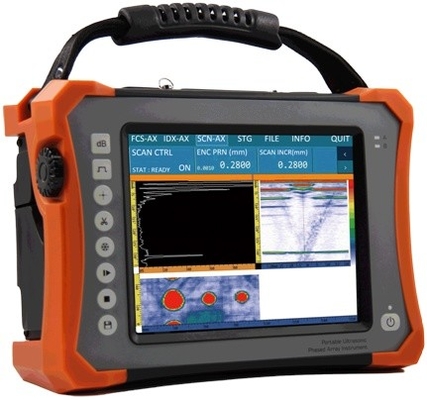

HPA-500 is a portable 64-CH phased array ultrasonic flaw detector originally developed by HUATEC. It is water-proof and oil-proof , fan-free and with touch screen. Whole-process data logging, innovative phased array probes and inspection methods being the advantages, this model guarantees superior performance and support, which makes it among the best of its kind for high C/P ratio.
Main Function
★ File & Entry Management System for Flexible Bridging between setting (Focal Law & Model), Calibration and Inspection
★ Modular Configuration: L-Scan, S-Scan, L-C-Scan, S-C-Scan, Butt-Weld, CrankShaft , Pipeline, TOFD, UT(Conventional),
★ 3D Simulation Model
★ Image analysis
★ Natural Structure of Heat Dissipation
★ Dynamic Depth Focusing (DDF)
★ Smooth Filtering
★ Touch Screen
★ ACG Calibration
★ TCG Calibration
Feature
I. Dynamic Focusing
II. 3D Simulation Model
III. APP Menu
Menu of the software is shown in the manner of APP.
It can be cut down or enlarged accordingly if asked by the users.
IV. Metallic Housing
To strengthen the instrument, both shielding and heat-dissipating

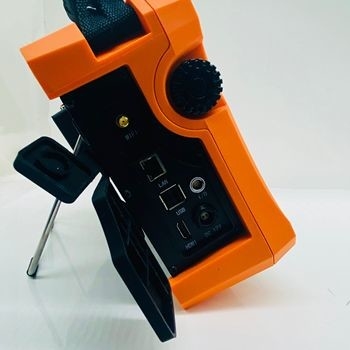

V. Protective Pedestal
To prevent any damage to either the instrument or the object
Specification
Channel Configuration
| Mode | PA | UT | TOFD(Optional) |
| Channel | 16:64 | 2 | 2 |
Physical Specification
| Display | 11-inch 800X600 TFT color display |
|
Transducer Ports |
160-pin PA transducer port; Lemo-00 conventional transducer Port, for either T-R or T&R |

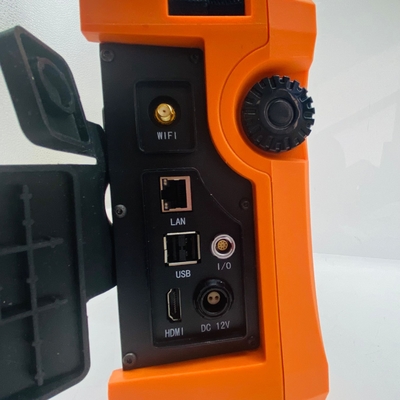

| I/O Ports | USB2.0 Port: 2(qty) |
| HDMI; encoder | |
| LAN(Gigabit-NIC); | |
| WIFI | |
| I/O (commissioning) | |
| 2D Encoder | |
| Memory |
In-Built: 16G RAM+4GB FLASH ;SD card (max to 32G); External: USB drive |
| Weight | 3.5Kg (with 1 battery) |
| Dimension | 284mm×202mm×95mm |
| Power Supply | AC:100～240V,50～60Hz；DC:12V |
| Charging | (battery) within or individually |
| Battery Life | 6 Hours |
| Working Power | 24W |
| Language | English |
|
Temperature Conditions |
Ambiance:-20℃～50℃ Storage:-20℃～60℃ |
| IP | IP54 |
Performance Specification
| Mode | PA | UT | TOFD(optional) |
| PRF | 50Hz～10kHz | 50Hz～5kHz | 50Hz～5kHz |
| Voltage |
Bipolar, ±45～±100V, with 5V per step |
Negative Square Wave, -75V～-250V, with 25V per step | Negative Square Wave, -75V～-250V, with 25V per step |
| Pulse Width |
20ns～800ns, with 5ns per step |
20～800ns, with 5ns per step | 20～800ns, with 5ns per step |
| Damping | 50Ω | 80Ω / 400Ω | 80Ω / 400Ω |
| Sampling Rate | 125MHz | 200MHz | 200MHz |
| Delay Precision | 2.5ns | N/A | N/A |
| Rx Delay | 0～40us | N/A | N/A |
| Bandwidth | 0.5MHz～19MHz | 0.5MHz～15MHz | 0.5MHz～15MHz |
| Gain | 0.0～80dB | 0.0～110.0dB | 0.0～110.0dB |
| Filter |
0.5-9.6MHz,2.5-12.9MHz, 3.8-19MHz Optional |
broadband, narrowband | broadband, narrowband |
| Rectification | FW | FW | RF |
| Reject | 0~80% | 0~80% | 0~80% |
| Scan Mode | A/L/S/C | A | A/D |
| Triggering | Encoder | N/A | Encoder |
| Scan Line | Max 128 | N/A | N/A |
| Skew |
L-scan:-89°～+89° S-scan:-89°～+89° |
N/A | N/A |
| Smart-Cal | Velocity/Delay/ACG/TCG/Encoder | DAC/DGS |
Delay/X-Value/PCS/ Wave/Encoder |
| Range |
0.0～1000mm, min 1mm |
0.0～2000mm | 0.0～2000mm |
|
Displaying Delay (max) |
1000mm | 2000mm | 2000mm |
|
Pulse Shift (max) |
N/A | 2000mm | 2000mm |
| Unit | mm | mm | mm |
| Gate | A/B | A/B | A/B |
| Gate Start | Available within the range | Available within the range | Available within the range |
| Gate Width | Available within the range | Available within the range | Available within the range |
| Gate Threshold | 0-100% | 5-95% | 0-100% |
| Alarm Signal | Buzzer / LED | Buzzer / LED | Buzzer / LED |
| Spotting | Crest / Flank | Crest / Flank | Crest / Flank |
| Readout |
Amp/Path/ Horizontal/Depth |
Amp/Path /Horizontal/Depth |
Amp/Path /Horizontal/Depth |
| Resolution | 0.5mm | 0.1mm | 0.1m |
