Product Details:
|
Measuring Range: | 0.55〜500mm | Standard Mode: | 0.75〜500m Probe:5PΦ10mm |
---|---|---|---|
Ultra-thin Mode: | (0.55〜1)mm | Measurement Resolution: | ±(0.5%H+0.05)mm |
Display Resolution: | 0.01mm | Material Velocity: | 509~18699m/s |
Bandwidth: | 1MHz~10MHz(-3dB) | Screen: | TFT Color Screen 2.3 Inch |
Power Supply: | 4.5VDC (three AAA Batteries) | ||
Highlight: | HUATEC Ultrasonic Thickness Gauge,Advanced Ultrasonic Thickness Gauge,Non Destructive Testing Ultrasonic Thickness Gauge |

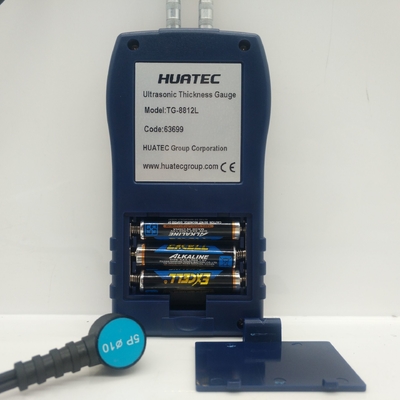

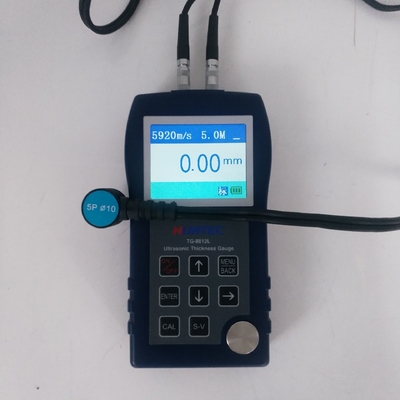

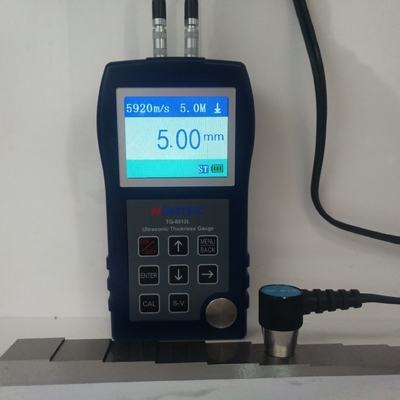

HUATEC TG-8812L advanced new type ultrasonic thickness gauge
1. Overview
Ultrasonic thickness gauge is a kind of high-precision thickness gauge which uses ultrasonic measurement principle, adopts high-speed processor and high integrated chip design to realize portable, nondestructive, fast and accurate measurement of thickness and sound velocity of various materials. It is suitable for measuring the thickness of various materials, such as steel, metal, glass, ABS, plastics, PVC, ductile iron, etc., which can be transmitted by ultrasonic wave at a constant speed in its back.
2.Instrument characteristics
3. Technical index
MODEL | TG-8812N | TG-8812C | TG-8812L | TG-8812D | |
Measuring Range (Standard) |
0.9〜300mm | 0.75〜400mm | 0.55〜500mm | 0.75〜500mm | |
Standard mode |
0.9〜300mm Probe:5PΦ10mm |
0.75〜400mm Probe:5PΦ10mm |
0.75〜500m Probe:5PΦ10mm |
0.75〜500m Probe:5PΦ10mm |
|
Ultra-thin mode | / | / | (0.55〜1)mm | / | |
Penetration mode (Echo-Echo) | / | / | / | 2.5-25mm(steel) | |
Microcrystal probe | 1〜50mm Probe:7.5PΦ6mm |
0.75〜100mm Probe:7.5PΦ6mm |
0.75〜100mm Probe:7.5PΦ6mm |
0.75〜100mm Probe:7.5PΦ6mm |
|
High temperature probe |
2〜100mm (Probe:ZW5P) |
1.5〜100mm (Probe :ZW5P) |
1.5〜200mm (Probe:ZW5P) |
1.5〜200mm (Probe:ZW5P) |
|
Display Resolution | 0.1mm | 0.01mm | 0.01mm | 0.01mm | |
Measurement Resolution | ±(1%H+0.1)mm | ±(1%H+0.1)mm | ±(0.5%H+0.05)mm | ±(0.5%H+0.05)mm | |
Material Velocity | 1000~9999m/s | 509~18699m/s | 1000~9999m/s | ||
Bandwidth | 1MHz~10MHz(-3dB) | ||||
Power Supply | 4.5VDC (three AAA batteries) | ||||
Screen | TFT Color screen 2.3 inch | ||||
Size | 130(L)×70(W)×25(H)mm | ||||
Weight | 125g (excluding batteries) | ||||
Work Temperature | -10~﹢50℃(with high temperature probe, up to 300℃) | ||||
Work Humidity | 20%~90%RH | ||||

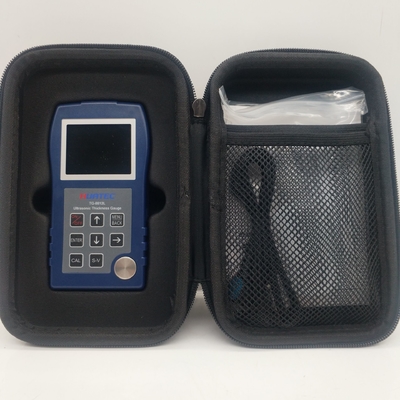

4. Standard accessories

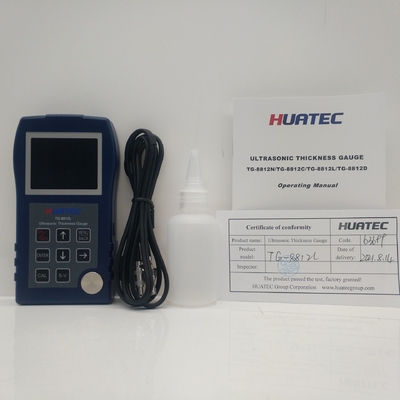

NO | Item name | Quantity |
1 | Thickness gauge | One |
2 | Standard probe (5P, φ 10) | One |
3 | Coupling agent (50ml) | One |
4 | Battery | Three AAA batteries |
5 | Manual | One |
6 | Qualification certificate | One |
7 | Instrument package | One |
Sound Velocities of Various Materials Longitudinal Wave Velocity
Material | Velocity(m/s) | Material | Velocity(m/s) |
water(20℃) | 1480 | Stainless steel (304) | 5663 |
glycerin | 1920 | Brass, yellow | 4640 |
Water-glass | 2350 | Copper | 4700 |
Nylon | 2620 | Glass | 5440 |
Acetic acid resin | 2670 | Nickel | 5630 |
Acrylic acid resin |
2730 | Steel 330 | 5600 |
Tin | 3230 | Steel 4330 | 5850 |
Gold | 3240 | Iron ,steel | 5920 |
phosphor bronze | 3530 | Titanium | 6070 |
Silver | 3600 | Magnesium | 6310 |
Zinc | 4170 | Aluminum | 6320 |
