High Sensitivity Non Destructive Testing Equipment Electrode Spacing 0～210mm -20 50 C Storage Temp

Product Description:

Sealed, durable construction

Chemical and abrasion resistant

AC operation for surface and sub-surface inspection

Exceeds ASTM lifting specifications

It is possible to use AC magnetized power supply (DC-AC inverter battery pack) to supply AC power without any direct insertion to AC power supply.

The DC magnetizing power supply (DC battery pack) can be used to realize the DC magnetization function.

When the lifting force is not enough, the power is automatically cut off to ensure the sensitivity of flaw detection.

The power display function can display the current battery power, and has the function of sound and light alarm.

Built in microcomputer chip to stabilize output voltage and ensure detection sensitivity.

Adjustable magnetization

Special working waist bag can carry battery pack, magnetic suspension, contrast agent, yoke probe, etc.

Oerview:

The HCDX-Y9L is a durable, high-strength AC DC agnetic yoke designed to detect surface and sub-surface indications in the most rugged applications.

Featuring sealed chemical-resistant construction, articulating legs to contour to any part shape and robust strain-relieved twelve-foot cord for field use, the HCDX-Y9L is ideal for inspection of welds and other remote testing.

Solid-state controls allow the operator to use AC DC magnetic fields for surface indications to meet all inspection needs.

The charging type magnetic particle flaw detector has the characteristics of compact structure, reasonable layout, small size, light weight and convenient portability. The flaw detector can be used directly in DC magnetized power supply (DC-AC inverter battery pack),which is efficient and portable. It is suitable for hull weld inspection, high altitude steel structure weld detection and pressure vessel internal operation. This instrument is suitable for steel structure parts of power, metallurgy, petrochemical, machinery and other industries, such as boiler, pressure vessel, pressure pipe, ship body weld and welding structure of various types of ferromagnetic material surface and magnetic particle flaw detection of near surface defect.

This instrument conforms to the standard requirements of JB/T7411-2012, ASME BPVC,ASTM E709,ASTM E1444,ASTM E3024."electromagnetic yoke flaw detector technical condition".

Technical parameter:

• Working temperature: -10 ~ +40 C

  Storage temperature: -20 ~ 50 C

  Relative humidity: <80% non condensation

  Work temperature rise: <18 C

  Temporary load rate: >50%

  Sensitivity: A1 standard test piece 15/50 groove clearly displayed.

  AC minimum power hoisting power: >4.5kg (44N)

  C minimum power hoisting power: >18.1kg (177N)

  Electromagnetic Yoke: HCDX-Y9L

  Electrode spacing: 0～210mm

  Maximum current: 2.8A

  Weight: 2.4kg

  major function: Direct alternating current magnetization

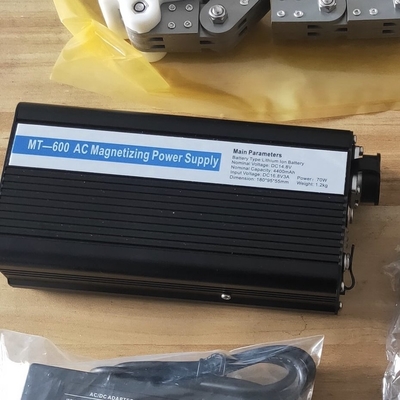

  AC magnetization of rechargeable battery pack MT-600

  Name	DC magnetized power supply
  Model	MT-600
  output voltage	AC
  Power type	Lithium battery
  Charging current	2A
  Battery capacity	4400Ah
  Working time	About 4h
  Shape size	55×95×180mm
  weight	1.0kg



Applications:

The HUATEC HCDX-Y9L model is a state-of-the-art Non Destructive Testing Equipment designed to serve various industries in ensuring the integrity of materials, components, and structures without causing any damage. This advanced Non-Destructive Testing Apparatus is perfect for scenarios where material properties need to be assessed with precision and safety. With a brand name that resonates with quality, HUATEC's equipment comes with the assurance of ISO and ASTM certifications, reflecting its compliance with international standards.

Originating from China, the HCDX-Y9L model stands out in the market with its robust features, including a temporary load rate of greater than 50%, ensuring that the equipment can handle significant stress during evaluations. The device operates optimally within a relative humidity of less than 80% non-condensation, making it suitable for a wide range of environmental conditions. Moreover, it boasts an AC minimum power hoisting power of over 4.5kg (44N), which is indicative of its strong and reliable lifting capabilities during testing procedures.

One of the compelling attributes of this Non Destructive Testing Equipment is its exquisite sensitivity, with the ability to clearly display a 15/50 groove in an A1 standard test piece. Such precision is critical for detecting even the finest flaws or inconsistencies in materials. Additionally, the HCDX-Y9L ensures that the work temperature rise remains below 18°C, preserving the integrity of both the apparatus and the material under test.

Designed for convenience, the HUATEC HCDX-Y9L is packaged in a sturdy paper box, protecting the equipment during transportation. Customers can expect a swift delivery time of just 5 days upon placing a minimum order quantity of one. With the ability to supply up to 500 units, HUATEC guarantees that even large-scale industrial needs can be met promptly. Priced competitively, this Non-Destructive Testing Apparatus represents a wise investment for any business looking to implement rigorous quality control measures.

Applications of the HUATEC HCDX-Y9L Non-Destructive Testing Apparatus are vast and varied. It is an indispensable tool in industries such as aerospace, construction, manufacturing, automotive, and oil & gas, where assessing the structural integrity and safety of components is critical. Whether it's for routine maintenance checks, failure analysis, or quality assurance during production, this equipment delivers reliable and accurate results, ensuring that only the highest standards of safety and quality are upheld.

Customization:

Brand Name: HUATEC

Model Number: HCDX-Y9L

Place of Origin: China

Certification: ISO, ASTM

Minimum Order Quantity: 1

Price: Contact for Price

Packaging Details: Paper box

Delivery Time: 5 DAYS

Supply Ability: 500 units per month

Storage Temperature: -20 ~ 50 C

Relative Humidity: <80% Non Condensation

Working Temperature: -10 ~ +40 C

AC Minimum Power Hoisting Power: >4.5kg (44N)

Sensitivity: A1 Standard Test Piece 15/50 Groove Clearly Displayed

The HUATEC HCDX-Y9L model is a top-of-the-line Non-Destructive Testing Apparatus designed for a wide range of applications. As a leading piece of Non Destructive Testing Equipment , it is perfect for professionals looking for reliable and efficient inspection solutions. Manufactured in China and meeting international standards with ISO and ASTM certification, this Non Destructive Testing Equipment is a must-have for ensuring the integrity of your materials without causing damage.

Standard configuration:

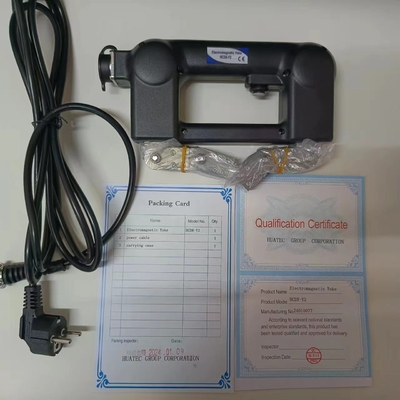

Magnetic powder flaw detector host HCDX-Y9L 1pc

Power line 1

Rechargeable type DC-AC inverter battery pack MT600 (AC magnetization power supply) 1

AC power backpack 1

Power adapter 1

AC output connection line 1

Instrument box 1
