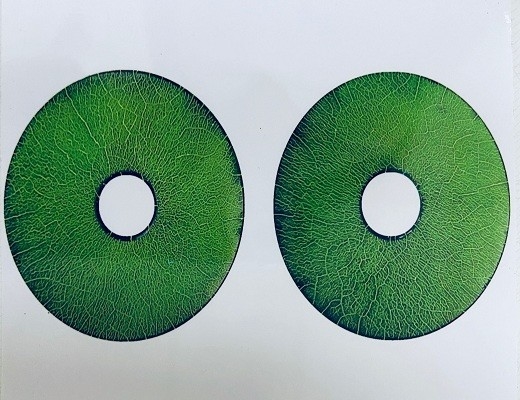

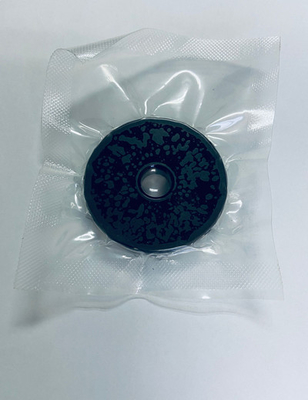

ISO9934-2 Same To Block Type 1 MTU-3 MPI Reference Block

ISO9934-2 Same To Block Type 1 MTU-3 MPI Reference Block

ISO9934-2 Same To Block Type 1 MTU-3 MPI Reference Block

Large Image : ISO9934-2 Same To Block Type 1 MTU-3 MPI Reference Block

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO，CE，Gost
Model Number:	MTU-3

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	in High quality carton
Delivery Time:	3-7 days
Payment Terms:	T/T, Western Union
Supply Ability:	100 sets per month

Contact Now

ISO9934-2 Same To Block Type 1 MTU-3 MPI Reference Block

Description

Product Name:

MPI Reference Block

Model:

MTU-3

Material:

90MnCrV8

Surface Hardness:

HRC63-70

Highlight:

MPI Reference Block

,

ISO9934-2 MPI Reference Block

,

Same To Block MPI Reference Block

ISO9934-2 Same To Block Type 1 MTU-3 MPI Reference Block

Product name: Magnetic inspection standard block

Type number : MTU-3

Test block name	MTU-3 Reference Block	Standard	ASTM E1417,GB/T15822-2005
Material	90MnCrV8	Specification	φ50±0.05 X φ10.5±0.05X9.7±0.05
Surface hardness	HRC63-70	Bolt hardness tester	HRC64
Magnetization method	Center conductor method	Peak current	DC 1000mA

ISO9934-2 Same To Block Type 1 MTU-3 MPI Reference Block 0
