Digital Portable Ultrasonic Through Coating Thickness Gauge TG4500

Large Image : Digital Portable Ultrasonic Through Coating Thickness Gauge TG4500

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATEC
Certification:	CE ISO
Model Number:	TG-4500

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	asb plastic+carton
Delivery Time:	3-5 work days
Payment Terms:	T/T, Western Union,PAYPAL
Supply Ability:	500 Set per month

Contact Now

Digital Portable Ultrasonic Through Coating Thickness Gauge TG4500

Description

Display:	Color 320x240 Pixels	Gain:	Low, Medium Or High For Varying Test Conditions
Measuring Range:	0.60mm To 508mm(0.025" To 20.00"), Depending On Material, Probe And Surface Condition	Measuring Resolution:	Selectable 0.01mm, 0.1mm(selectable 0.001", 0.01")
Display Mode:	Normal, Minimum / Maximum Capture, DIFF/RR%	Update Rate:	Selectable 4Hz, 8Hz, 16Hz
Material Velocity Range:	500 To 9999m/s (0.0197 To 0.3937in/us)	Power Requirements:	2 AA Size Batteries
Highlight:	ultrasonic through coating thickness gauge , digital portable ultrasonic thickness gauge , TG4500 ultrasonic thickness gauge

TG-4500 Series Ultrasonic Thickness Gauge

Digital Portable Ultrasonic Through Coating Thickness Gauge TG4500 0

Features:

Color 320x240 Pixels Display

A-Scan Snapshot

Echo-Echo Mode(Thru Paint & Coatings)

Stores 100,000 Readings
Gain: Low, Medium or High for varying test conditions

Technical Specifications

Feature	TG-4500	TG-4500D	TG-4500DL	Data Logger Option
Color Display
A-Scan Snapshot
Gain: Low, Medium, High
Min/Max Capture
DIFF/RR%
Thru-paint	X
Data Logger	X	X
DataView Software	X	X

Instrument Specifications
Display Type	2.4" color OLED, 320 X 240 pixels, contrast 10,000:1
Operating Principle	Pulse echo with dual element transducers
Measuring Range	0.60mm to 508mm(0.025" to 20.00"), depending on material, probe and surface condition
Measuring Resolution	Selectable 0.01mm, 0.1mm(selectable 0.001", 0.01")
Units	Inch or Millimeter
Gain	Low, Medium or High for varying test conditions
Display Mode	Normal, Minimum / Maximum capture, DIFF/RR%
V-Path Correction	Automatic
Update Rate	Selectable 4Hz, 8Hz, 16Hz
Material Velocity Range	500 to 9999m/s (0.0197 to 0.3937in/us)
Languages	Selectable Chinese, English, Japanese
Alarm Settings	Minimum and Maximum alarms. Range of 0.25 mm to 508 mm (0.010" to 20.00"). Dynamic waveform color change on alarm
Power Requirements	2 AA size batteries
Operating Time	Approximately 40 hours
Instrument Shut-off	Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity
Operating Temperature	-10°C to +50°C (+10°F to +120°F)
Size	153mm X 76mm X 37mm(H X W X D)
Weight	280g including batteries

Data Logger Option Features
Capacity	400 files, 100,000 readings
File Structure	Grid file
Rows X Columns	21 X 12
Communication Port	USB 2.0 (Full Speed ) port
Software	DataView PC software

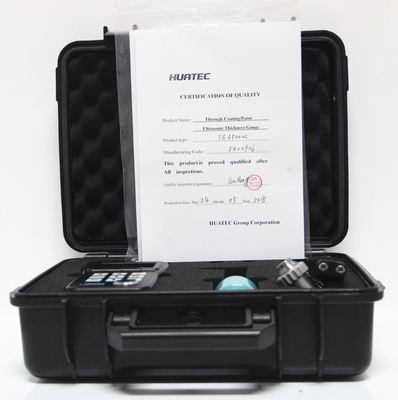

Standard accessories

Thickness Gauge	1
Probe	1
Alkaline Battery	2
Couplant	1

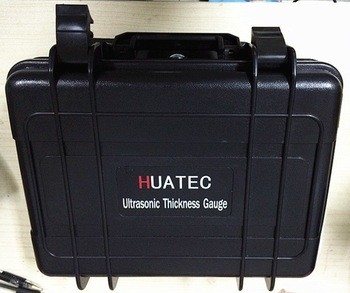

Carrying Case	1
Operation Manual	1
USB Cable	1(Only TG-4500DL)
Software CD	1(Only TG-4500DL)

Optional accessories

High-temperature Probe	Cast Iron Probe
Small Probe	Mini Probe
Probe Cable	Stepped Calibration Block
Rubber Sheath	Storage Option(Only TG-4500DL)

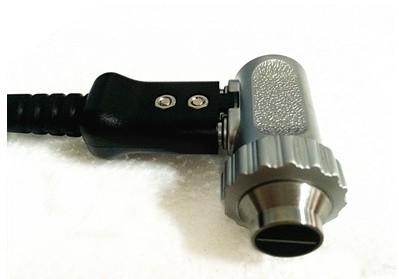

TG-4500 series Probe/Transducer Specifications
Model	PT08	TC510	PT12	ZT12	PT06	PT04	GT12
Type	TG-4500 Standard	TG-4500D/DL Standard	Standard	Cast iron	Small tube	Fingertip	High-Temperature
Frequency	5MHz	5MHz	5MHz	2MHz	7.5MHz	10MHz	5MHz
Contact Diameter	11mm	13.5mm	13.5mm	17mm	8mm	6mm	15mm
Measurement Range	0.8 to 100.0mm	1.2 to 200.0mm	1.0 to 200.0mm	4.0 to 508.0mm	0.8 to 30.0mm	0.7 to 12.0mm	4.0 to 80.0mm
Temperature Range	-10 to 70℃	-10 to 70℃	-10 to 70℃	-10 to 70℃	-10 to 70℃	-10 to 70℃	-20 to 300℃
