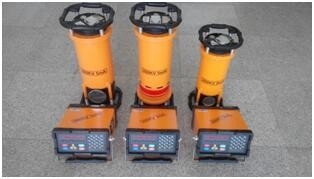

Frequency Conversion Portable Type X Ray Flaw Detector XXG-3505

Frequency Conversion Portable Type X Ray Flaw Detector XXG-3505
Frequency Conversion Portable Type X Ray Flaw Detector XXG-3505 Frequency Conversion Portable Type X Ray Flaw Detector XXG-3505

Large Image :  Frequency Conversion Portable Type X Ray Flaw Detector XXG-3505

Product Details:
Place of Origin: CHINA
Brand Name: HUATEC
Model Number: XXG-3505
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Payment Terms: T/T, Western Union
Contact Now

Frequency Conversion Portable Type X Ray Flaw Detector XXG-3505

Description
Max Penetration Thickness Steel (A3): 60mm Focal Distance: 600mm
Exposure Time: 5min Film Type: Agfa D7
Highlight:

XXG-3505 X ray flaw detector

,

Frequency conversion X ray flaw detector

,

Portable X ray flaw detector

Frequency conversion portable type X ray flaw detector XXG-3505



◆Adopting micro-computer control and modular structure, with strong anti-interference ability and high automaticity and reliable performance.

◆Parameter setting, working process and trouble indication will be indicated on the LED screen.

◆Independent aging key is designed for aging the machine conveniently.

TYPE

ITEM

 XXG3505
Max Penetration thickness Steel (A3) 60mm
Focal Distance 600mm
Exposure Time 5min
Film Type Agfa D7
Double lead foil Intensifying screen 0.03
Darkroom Disposal 20±2℃
Development 5minutes
Blackness 1.5
Input Voltage (V) 220V±10% 50―60Hz
Capacity (KVA) 3.5
Output Tube voltage (KVP) 200-350Kv
Tube current (mA) 5
Stability ±1%

X-RAY

Tube

 Focus mm2 2.5×2.5
Radiation Angle 40±5°
Sensitivity k≤1.8%
Operation Mode Intermittent operation, Radiating time to cooling time is 1:1

X-Ray

Controller

 Dimension 350×290×160
Weight 11kg
Circuit Structure Micro-computer control ,Modular structure,Voice prompt

X-RAY

Generator

 Cooling Force air cooling
Insulation SF6 Gas Insulation
Working Pressure 0.35Mpa-0.45Mpa
Dimension 335×335×700
Weight (kg) 43kg
Working Temperature -10℃―+40℃

◆Match with various generator and function reliably.

◆Number of exposure can be accumulated.

(After the unit has been ready, but before press the "ON" key, you can press the "A" key (delay key) three times to check the number of exposure, and press any key to return back.)

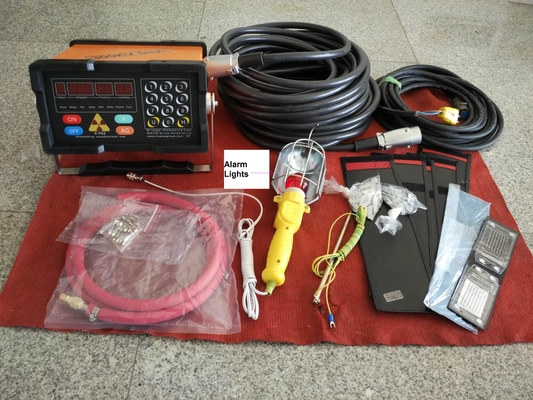

◆With the outlet of ray warning lamp and wire connecting terminal of door-machine interlock.

(Door-machine interlock—when the lead door opens, the instrument cut off the high voltage automatically to protect the operator)



Frequency Conversion Portable Type X Ray Flaw Detector XXG-3505 0
