Compact 2.25 Kg Permanent Magnet Flaw Detector External Dimensions 175 Mm×160mm×45mm

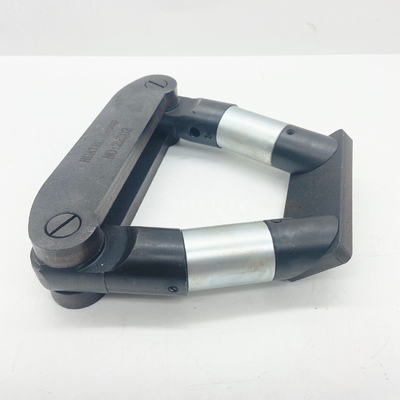

Large Image : Compact 2.25 Kg Permanent Magnet Flaw Detector External Dimensions 175 Mm×160mm×45mm

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATEC
Model Number:	HCDX-310

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Payment Terms:	T/T, Western Union

Contact Now

Compact 2.25 Kg Permanent Magnet Flaw Detector External Dimensions 175 Mm×160mm×45mm

Description

The Lifting Force:

> 18 Kg

Pole Distance:

Adjustable Continuously From 50 To 200mm

External Dimensions:

175 Mm×160mm×45mm

Weight:

2.25 Kg

Highlight:

Compact Permanent Magnet Flaw Detector

2.25 Kg Permanent Magnet Flaw Detector

Permanent magnet flaw detector HCDX-310

HCDX-310 permanent magnet flaw detector is a kind of small portable testing tool that can be used for magnetic particle flaw detection without power supply. The testing tool can be used in workshop or laboratory. It is more suitable for testing in places without power supply or in environments where special electrical equipment is explosive.

The lifting force	> 18 kg
Pole distance	adjustable continuously from 50 to 200mm
External dimensions	175 mm×160mm×45mm
Weight	2.25 Kg

The magnetic pole spacing is adjustable from 50 mm to 200 mm, and the probe can be rotated to detect defects in different planes. Large workpiece can be partially magnetized in sections, which is convenient for field operation, especially advantageous for high altitude and occasions where it is not convenient for live operation.

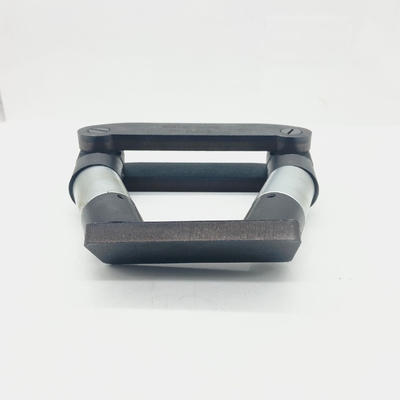

Compact 2.25 Kg Permanent Magnet Flaw Detector External Dimensions 175 Mm×160mm×45mm 0
