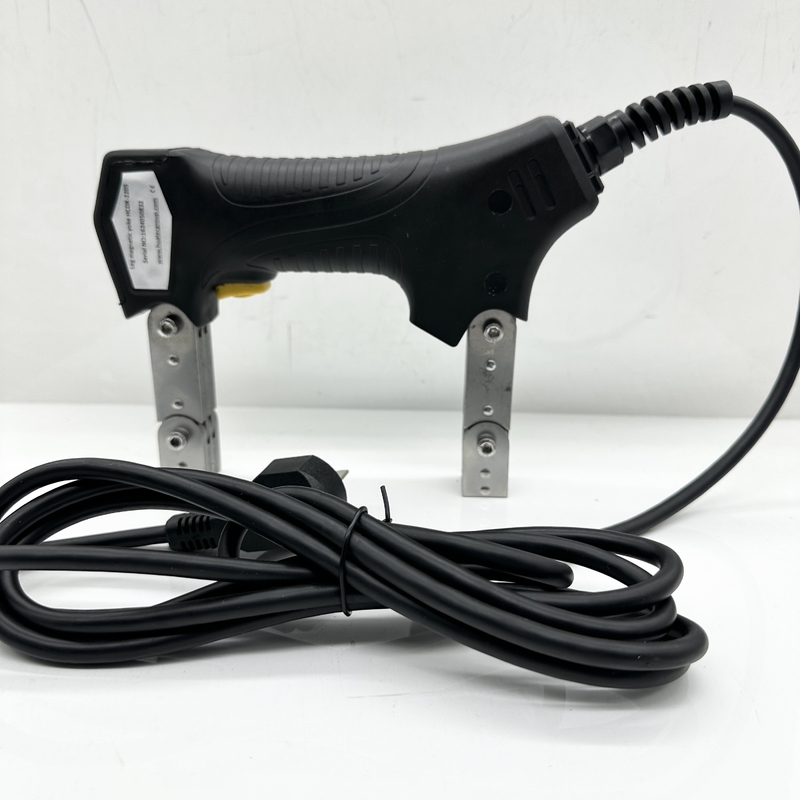

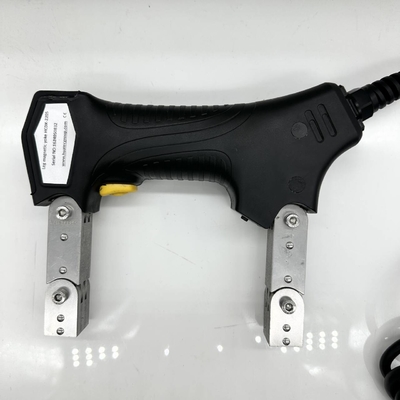

Magnetic Handy AC Yoke With UV Lamp And White Light

Large Image : Magnetic Handy AC Yoke With UV Lamp And White Light

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATEC
Certification:	CE ISO
Model Number:	HCDX-220S

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	asb plastic+carton
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union，Paypal
Supply Ability:	5000 Set per month

Contact Now

Magnetic Handy AC Yoke With UV Lamp And White Light

Description

White Light Illuminance ≥2000Lux:	2.0KG	AC Working Mode:	The Probe Can Be Directly Connected To The AC220V
Lifting Force:	AC ≥68.6N (7kg)	Probe Light Source:	White Light Illuminance ≥2000Lux
Duty Time:	5 Minutes On,1 Minute Off	Uv Lamp Irradiance:	≥5000μw/cm
Probe Volume:	200mm48mm158mm;	Sensitivity:	A1 Type Standard Test Film 15/100 Grooves Display Clearly,better Than The National Standard;
Highlight:	UV Lamp Magnetic Handy AC Yoke , White Light Magnetic Handy AC Yoke , Magnetic Handy AC Yoke

Handy AC Yoke With UV Lamp And White Lamp

With UV Lamp And White Lamp Handy AC Yoke

Application
•Surface and subsurface testing for f ield testing
•Surface and subsurface for s pot inspections
•Surface and subsurface for i n service inspections
•Surface and subsurface for d emanding environments
•Surface and subsurface for w eld inspection

Functional characteristics

1. AC working mode, the probe can be directly connected to the AC220V power supply for flaw detection work;

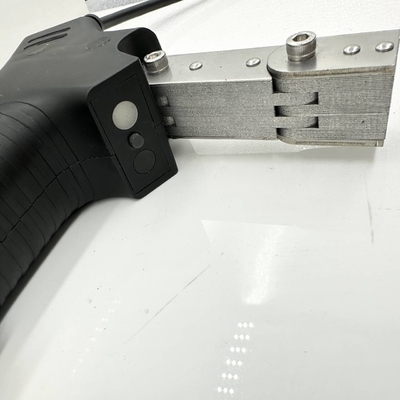

2. The lamp is automatically lit when magnetized, the UV and white light can be switched, and the fluorescent magnetic particle detection and
ordinary magnetic particle detection can be performed;
3, High sensitivity, strong lifting force, high flaw detection efficiency.
4. Duty time: 5 minutes on,1 minute off
5. Sealed, durable construction

AC working mode	the probe can be directly connected to the AC220V
Duty time	5 minutes on,1 minute off

Standards conform
•ASME BPVC
•ASTM E709
•ASTM E1444
•ASTM E3024
•ISO 9934 3

Technical parameter
1. Sensitivity: A1 type standard test film 15/100 grooves display clearly,better than the national standard;
2. Lifting force: AC ≥68.6N (7kg);
3. Probe pole distance: 60mm
205mm (spacing range is adjustable);
4. Probe light source: white light illuminance ≥2000Lux; Uv lamp irradiance ≥5000μw/cm
5. Probe volume: 200mm*48mm*158mm;
6. Probe weight: 2.0kg

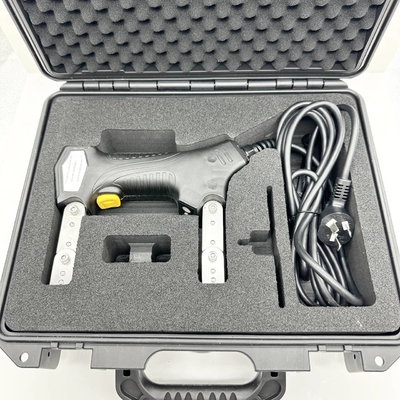

Configuration list
1. D type yoke 1 set (including 3 meters probe line)
2. 1 set of auxiliary tools
3. User manual, warranty card, certificate of 1
4. Instrument box
