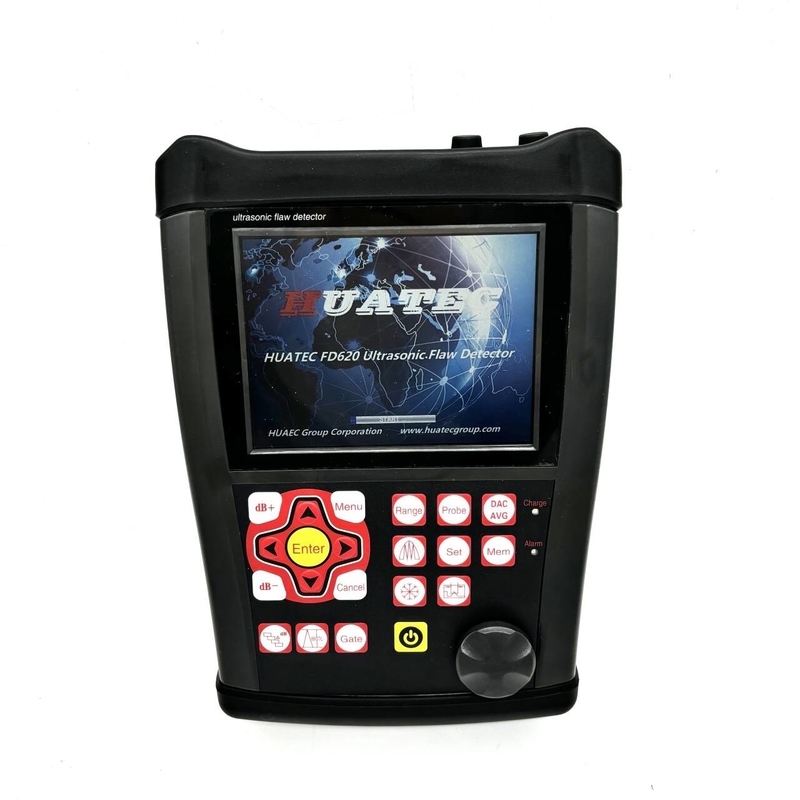

Ultrasonic Flaw Detector Range 0~ 25000mm Automated Display Precise Flaw Location

Ultrasonic Flaw Detector Range 0~ 25000mm Automated Display Precise Flaw Location

★ Probe calibration, curve making and other operations are prompted by the dialog box in the whole process, no need to read the manual

★ All tools you need: DAC, AVG, color Bscan, AWS, etc.

★ Pulse Repetition Frequency: 30-3000Hz, accurate adjustment, high speed scanning, never missing detection.

★ High Signal to noise ratio, clear and stable echo, anti-noise design, perfect for tough working conditions.

★ 10-digit AD, high speed sampling leads to better echo diagram with all details. Sensitive and can detect even tiny flaws.

★ Crystal clear true-color display. Helpful user interface makes the operation much easier.

★ High speed real-time flaw detection video recording. Unlimited USB data storage.

★ Blue tooth connection, the mobile APP generates on-site flaw detection report and realizes printing

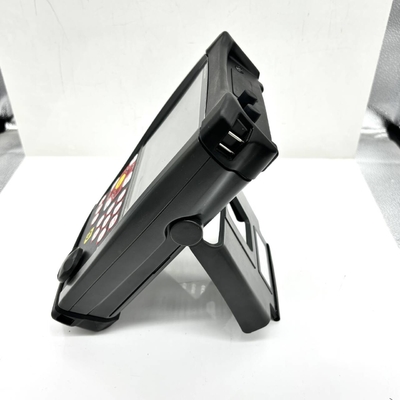

★ IP65 standard. Alloy + Silica gel case, water and dust proof, solid and lasts forever. Damping support makes it stands in any angle.

★ Battery lasts 15 hours for one charge. Each battery has own charging control so with two batteries it can work around the clock.

Specifications

Resolving Power:>40dB (5P14)
Sensitivity Leavings:>62 dB
Reject (suppression): 0 to 80% full screen height
500 independence setup s , any criterion can be input freely, we can work in the
scene without test block
Big memory of 1000 A graph
Test Modes: Pulse echo, dual element and thru-transmission
Probe Types: Single Straight, Single Angle,Dual Straight, Dual Anlge,Thrugh,Creeping,Surface

Gate Monitors: Two independent gates controllable over entire sweep range
Units: Inch or millimeter
Power Requirements: AC Mains 100-240 VAC, 50-60 Hz
Display Delay:-20 to 3400 µs
Probe Delay/Zero Offset : 0 to 99.99µs

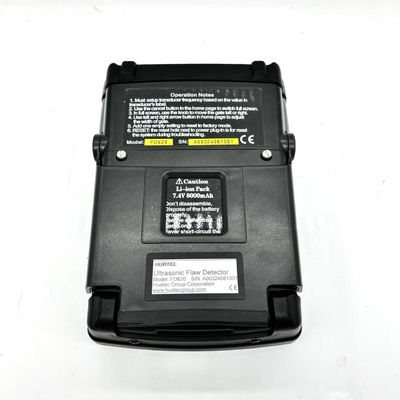

Internal rechargeable Li-ion battery pack rated 7.2V at 8000 mAh
15 hours nominal operating time depending on display brightness
4 hours typical recharge time
H×W×D(mm):260 × 175 × 60 (mm)

Weight 1.2kg
Operating Temperature:-10 to 50℃
Storage Temperature:-30 to 50℃
Pulse Energy: 200V, 300V, 400V, 500V selectable
Rectification: Positive half wave, negative half wave, full wave, RF System
Bandwidth (amplifier bandpass ): 0.2 to 20 MHz
Gate Monitors: Two independent gates controllable over entire sweep range
Sensitivity: 120 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB.
Transducer Connections: BNC or LEMO

Automated make video of test process and play; useU Disk the length of video is unlimited.
Color B scan
There are 13 built in in ternational standards in the unit.
Blue tooth connection to mobile device to generate and print detection reports on site.
AWS D1.1.
Curved Surface Correction feature
Crack Height Measure function.
Magnify gate:spreading of the gate range over the entire screen width
Auto-gain function
Envelope: Simultaneous display of live A-scan at 60 Hz update rate and envelope of A-scan display
Peak Hold: Compare frozen peak waveforms to live A
Scans to easily interpret test results.
Scan Freeze:Display freeze holds waveform and sound path data.
Alarm Beep and LED.
Real Time Clock
Fill echo
Capture mark
Echo color within the Gate

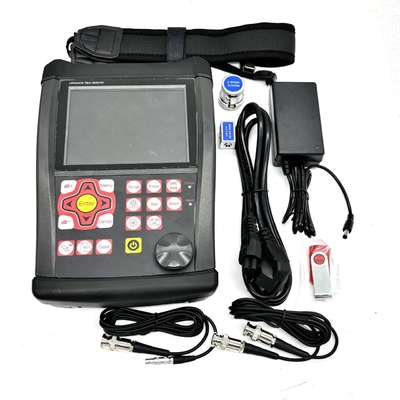

Base Instrument Package
Portable Ultrasonic Flaw Detector FD620   1pc
Straight Beam Transducer (4 MHz,Φ10)   1pc
Angle Beam Transducer (4 MHz, 8 mm×9 mm, 60°)   1pc
Interconnect Cable for the transducer (Q9-C5 or optional C9 C5)   1pc
Rechargeable Li-Ion Battery Package, 8 amp hour   1pc
Power supply/charger unit   1pc
Operating Manual in English   1pc
App Software   1pc
Strap   1pc
