Product Details:
|
| Product Name: | Portable X-ray Flaw Detector | Model: | XXG-3505 |
|---|---|---|---|
| Output Voltage: | 180-350Kv | Max Penetration: | 60mm |
| Focus Spot: | 2.2x3.2mm | Angle: | 40°＋5° |
| High Light: | 60mm X-ray Flaw Detector,Portable X-ray Flaw Detector,Ceramic Tube X-ray Flaw Detector |
||

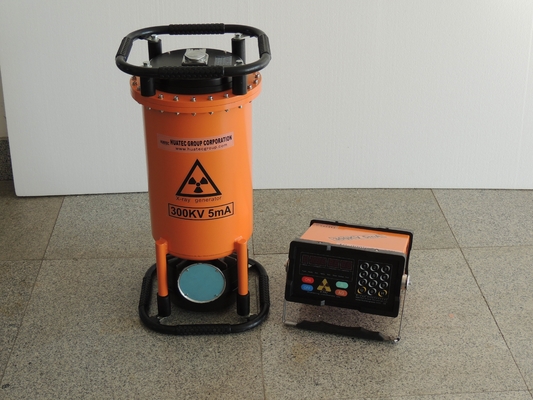

Max Penetration 60mm Directional Radiation Portable X-ray Flaw Detector With Ceramic Tube

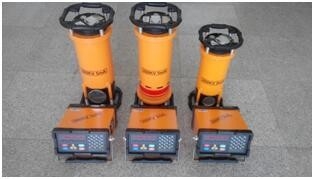

XXG series are suitable for the material directional of thin iron plate, aluminum, rubber and so on, may get very good picture quality and clarity.
Feature:
●Checking the software and hardware itself after start the machine
●Excellent anti-jamming performance, which can adapt for field operation without power supply, because of the motor supports
●Can adjust exposure parameters with keys ( easy operation.)
●Has the function of Delay time opening HV. Convenient for operator keep away from dangerous field
●Can adjust high voltage slowly for protecting X-ray generator
●Automatically controlling according to 1:1 working and rest operating way, the longest continuous exposure period is 5 minutes.
●Including complete protecting system: over KV, low mA, over mA, over temperature and optical-sound alarming
●Convenient for repairing and maintenance
●Much more Substance for structure designing, much more convenient for local operation
●Time can be changed for±0.3 according to the power supply net to make the exposure more precise
Specification:
|
Output voltage (Kv) |
Input (KW) |
Focus spot (mm) |
Beam angle |
Max penetration (mm) |
Weight (KG) | Dimensions (mm) | |||
| Generator | Controller | Generator | Controller | ||||||
| XXG-3505 | 200-350 | 3.5 | 4.0X4.0 | 40°+5° | 60 | 43 | 18 | 335x335x835 | 350x290x160 |

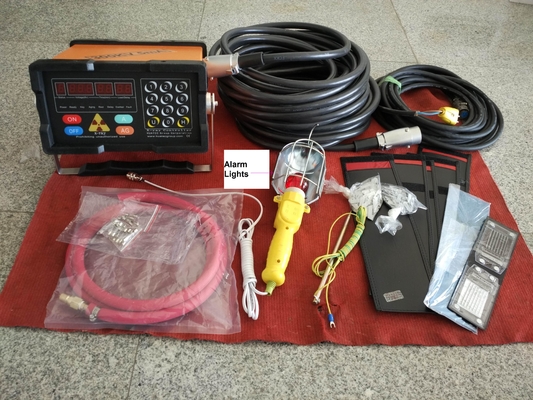

Standard Delivery
| Directional glass X-ray tube | 1 Pcs | |
| Generator | 1 Set | |
| High voltage joins cable | 1 Pcs | 25 Meters |
| Controller | 1 Set | |
| Power cable | 1 Pcs | 10 Meters |
| Grounding cable | 1 Pcs | 5 Meters |
| Accessories | 1 Set | |
| (Including: alarm lamp,1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI) 1 set; fuse1 pc) | ||
