| Measuring Range: | 0 To 15000mm In Steel | Material Velocity: | 1000 To 20000m/s |
|---|---|---|---|
| Dynamic Range: | More 40dB | Display Delay: | -20 To 3400 µs |
| Highlight: | Ultrasonic Flaw Detector With Display,Digital Ultrasonic Flaw Detector,Metal Shape Ultrasonic Flaw Detector |
||

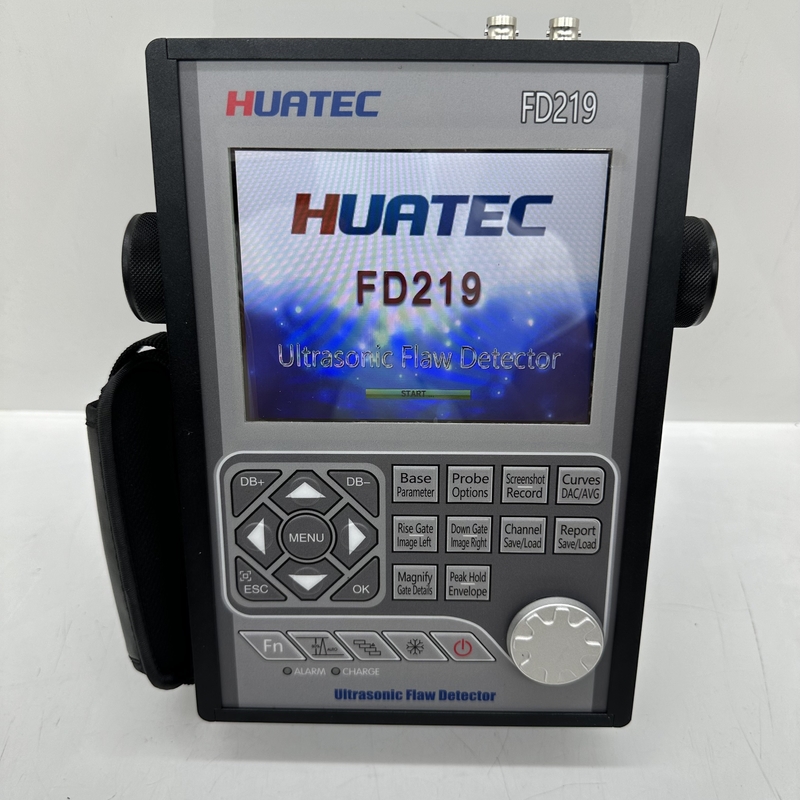

Metal Shape Digital Ultrasonic Flaw Detector FD219
HUATEC FD219 flaw detector is a portable industrial digital ultrasonic flaw detector that can detect, locate, evaluate and diagnose various defects (cracks, inclusions, pores, etc.) in the workpiece quickly, conveniently, without damage, and accurately.
| l Measuring Range: 0 to 15000 mm, at steel velocity |
| l Pulse Repetition Frequency ranges from 20 Hz to 2000 Hz |
| l Material Velocity: 1000 to 20000m/s |
| l Pulse Repetition Frequency ranges from 20 Hz to 2000 Hz |
| l Dynamic range: more 40dB |
| l System Linearity: Horizontal: +/-0.2% FSW, |
| Vertical: 0.25% FSH, Amplifier Accuracy +/-1 dB. |
| l Resolving Power: more than 40dB |
| l Sensitivity Leavings: more than 50dB(Deep 200mmФ2 flat-bottomed hole) |
| l Reject (suppression): 0 to 80% full screen height |
| l Noise: less than10% |
| l Gate Monitors: Two independent gates controllable over entire sweep range |
| l Gain: 110 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB. |
| l Bandwidth (amplifier bandpass ): 0.2 to 20 MHz |
| l Pulse Displacement: more than 32dB |
| l Display Delay: -20 to 3400 µs |
| l Probe Delay/Zero Offset : 0 to 99.99µs |
| l Test Modes: Pulse echo, dual element and thru-transmission |
| l Pulser: Tunable Wave Pulser |
| l Pulse Energy: 100V, 200V, 250V, 300V, 500V selectable |
| l Rectification: Positive half wave, negative half wave, full wave, RF |
| l Units: Inch or millimeter |
| l Transducer Connections: BNC or LEMO |
| l Power Requirements: AC Mains 100-240 VAC, 50-60 Hz |
| l Operating Temperature: -10℃ to 50℃, Storage Temperature: -30℃ to 50℃ |
| l Measuring Range: 0 to 15000 mm, at steel velocity |
| l Pulse Repetition Frequency ranges from 20 Hz to 2000 Hz |
| l Material Velocity: 1000 to 20000m/s |
| l Pulse Repetition Frequency ranges from 20 Hz to 2000 Hz |
| l Dynamic range: more 40dB |
| l System Linearity: Horizontal: +/-0.2% FSW, |
| Vertical: 0.25% FSH, Amplifier Accuracy +/-1 dB. |
| l Resolving Power: more than 40dB |
| l Sensitivity Leavings: more than 50dB(Deep 200mmФ2 flat-bottomed hole) |
| l Reject (suppression): 0 to 80% full screen height |
| l Noise: less than10% |
| l Gate Monitors: Two independent gates controllable over entire sweep range |
| l Gain: 110 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB. |
| l Bandwidth (amplifier bandpass ): 0.2 to 20 MHz |
| l Pulse Displacement: more than 32dB |
| l Display Delay: -20 to 3400 µs |
| l Probe Delay/Zero Offset : 0 to 99.99µs |
| l Test Modes: Pulse echo, dual element and thru-transmission |
| l Pulser: Tunable Wave Pulser |
| l Pulse Energy: 100V, 200V, 250V, 300V, 500V selectable |
| l Rectification: Positive half wave, negative half wave, full wave, RF |
| l Units: Inch or millimeter |
| l Transducer Connections: BNC or LEMO |
| l Power Requirements: AC Mains 100-240 VAC, 50-60 Hz |
| l Operating Temperature: -10℃ to 50℃, Storage Temperature: -30℃ to 50℃ |

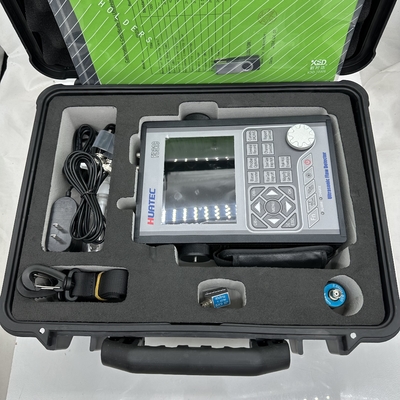

Standard Package: Host ,Straight Probe 2.5MHz 20mm, Angle Probe 4MHz 8X9 60degrees, Probe Connecting Cable, Power Adaptor & Cable, PC Software,Communication Cable, User Manual, Calibration Certificate, Instrument Case
