Product Details:
|
| Product Name: | Fluorescent Magnetic Particle Flaw Detector | Circumferential Magnetizing Current（A）: | 6000 |
|---|---|---|---|
| Optional Coil Inner Diameter（mm）: | 350 | Sensitivity: | Type A Sample (15/50) Shows Clearly |
| Turn The Way: | Electric | UV Lamp: | Hanging Type, Hand-held Type |
| Highlight: | Fluorescent Magnetic Particle Flaw Detector,Electric Magnetic Particle Flaw Detector,Electric Flaw Detector |
||

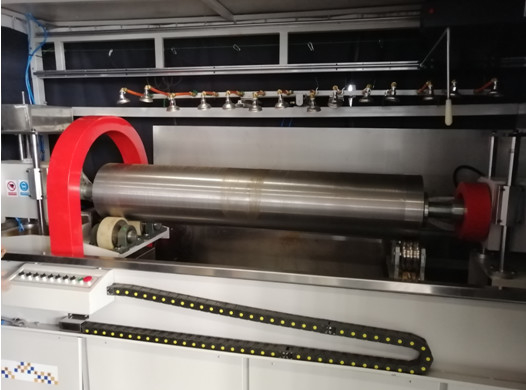

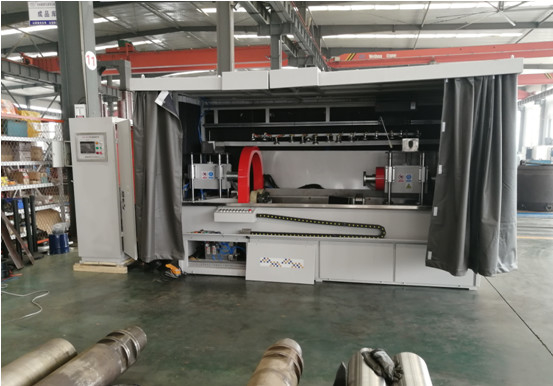

Fluorescent Magnetic Particle Flaw Detector HMP-6000A
| Technical parameter table | |
| AC/DC (half wave, single phase full wave, three phase full wave) | |
| Circumferential magnetizing current(A) | 6000 |
| Longitudinal magnetization flux potential(AT) | 20000 |
| Optional coil inner diameter(mm) | 350 |
| Maximum electrode spacing is optional(mm) | 1500 |
| host | Split type (electrical control cabinet is separated from the main engine) |
| sensitivity | Type A sample (15/50) shows clearly |
| temporary load rate | ≤20% |
| control mode | Manual/semi-automatic |
| interface(*) | Button/Touch screen |
| Clamping way(*) | Electric and pneumatic |
| Turn the way | electric |
| Alternating current magnetization method | Circumferential magnetization, longitudinal magnetization, compound magnetization |
| AC demagnetization mode | Automatic attenuated demagnetization |
| Rectifying way | Single-phase half wave, single-phase full wave, three-phase full wave |
| AC/DC magnetization method(*) | Circumferential AC magnetization/circumferential DC magnetization, longitudinal AC magnetization, circumferential AC longitudinal DC composite magnetization |
| DC demagnetization mode(*) | Attenuated demagnetization, ultra-low frequency demagnetization |
| UV lamp | Hanging type, hand-held type |
| Spray time | 3"～6" / manual |
| Magnetization time | 0.5"~2"/ time |
| Rotational observation time | 5"～10"/week |
| Demagnetization time | 3"~5"/time |
| Air supply | 0.4-0.8MPa |
| Power | Three-phase five line,380V±10%,50Hz |
| Overall dimensions(mm) | length:1～1.5m+ Electrode gap |
| width:800~1200mm(Add the width of the darkroom:1800mm) | |
Configuration Characteristics
The configuration table(A):
|
type configuration |
A |
| Programmable logic controller(PLC) | ● |
| Digital ammeter | ● |
| Fixed UV lamp | ● |

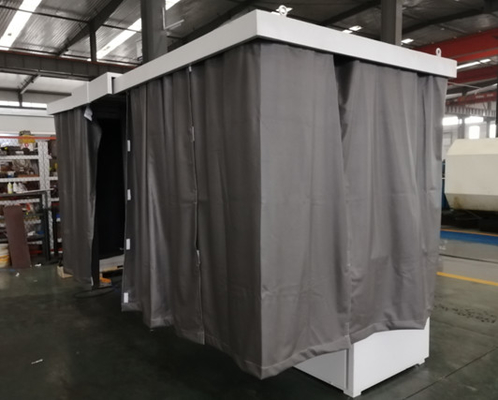

| Shading darkroom | ● |
| V-shaped bracket | ● |
| Pneumatic clamping | ● |
Configuration Characteristics
1. A semi-closed anaerobics chamber with a unique design
2. Fixed UV lamp
3. Fluorescent or non-fluorescent magnetic particle detection
4. Circumferential, longitudinal, compound magnetization
5. The current is continuously adjustable, preset, and the true RMS value is displayed
6. Circumferential copper anti-lighter pad
7. Power off phase control function
8. Automatic decay or ultra-low frequency demagnetization
The configuration table(B):
|
type configuration |
B |
| Programmable logic controller(PLC) | ● |
| Digital ammeter | ● |
| Touch screen | ● |
| AC magnetization(AC) | ● |
| DC magnetization(HWDC/FWDC) | ● |
| Pneumatic clamping | ● |
| Semi-enclosed dark room | ● |
| Copper anti-lighter mat | ● |
| Pneumatic clamping | ● |
