Product Details:
|
| Product Name: | Portable Ultrasonic Flaw Detectors | Model: | FD520 |
|---|---|---|---|
| Measuring Range（mm）: | 0 ～ 10000 | Continue Working Time: | 12 Hours |
| Highlight: | NDT Portable Ultrasonic Flaw Detectors,Crack Detection Portable Ultrasonic Flaw Detectors,portable digital ultrasonic flaw detector NDT |
||

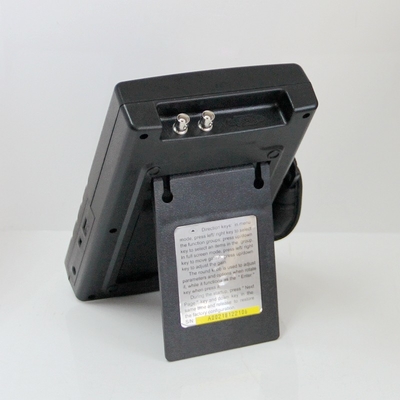

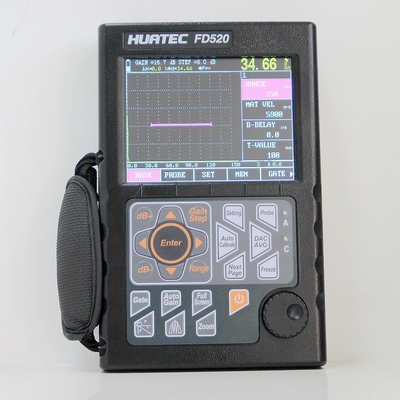

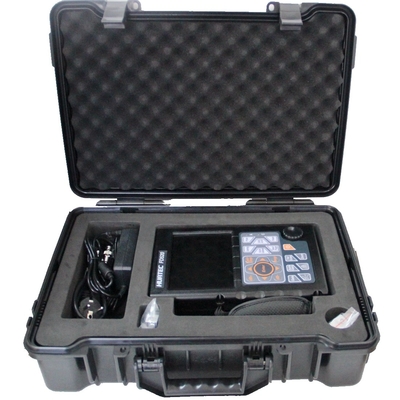

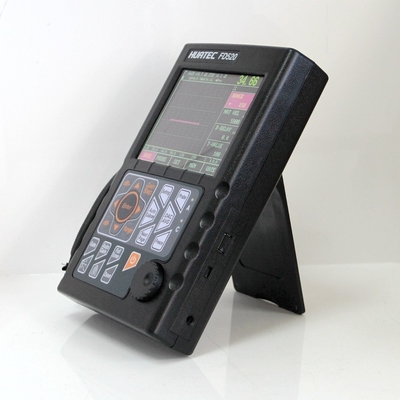

HUATEC Portable Ultrasonic Flaw Detectors 0-10000mm For NDT Ultrasonic Crack Detection
★ Automated calibration,Automated gain
★ DAC,AVG,TCG,B scan,AWS
★ High-speed capture and very low noise
★ Solid metal housing
★ high contrast viewing of the waveform from bright
★ Powerful pc software and reports can be export to excel
Features
• Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф)；
• Automated switch three staff gauge ((Depth d,level p,distance s)；
• Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ；
• Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be modified and compensated
• 6dB DAC functions;
• 500 independence setup, any criterion can be input freely, we can work in the scene without test block；
• Big memory of 1000 A graph
• Automated gain and gain scan;
• Peak Hold and Peak Memory；
• B scan;
• AWS D1.1
• Automated make video of test process and play; use upan,the length of video is unlimited.
• Powerful pc software and reports can be export to excel;
• Li battery, continue working time up to 10 hours;
• The embeded software can be online updated；
Specifications
| Title | Parameter | Title | Parameter |
| Measuring Range(mm) | 0 ～ 10000 | Measurement Mode | Single,Dual,Thru |
| Vertical Linearity Error | ≤3% | Reject | 0~80% |
| Horizontal Linearity Error | ≤0.1% | Pulse Displacement(μs) | -20 ～ +3400 |
| Sensitivity Leavings | ≥62dB | Zero(μs) | 0.0 ～ 99.99 |
| Dynamic range | ≥32dB | Port Type | BNC(Q9) |
| Resolving Power | ≥36dB | Operating Temperature (℃) | -20～50 |
| Frequency Range(MHz) | 0.5 ～ 15 | H×W×D(mm) | 240×156×48 |
| Gain(dB) | 0 ～ 120 | Weight(kg) | 1.0(with battery) |
| Material Velocity(m/s) | 1000 ～ 15000 |
Other assistant function
• Display freeze;
• Automated echo degree;
• Angles and K-value;
• Lock and unlock function of system parameters;
• Electronic clock calendar ;
• Two gates setting and alarm indication;
• Gate and DAC alarm;
