carbon steel IIW V1 Calibration Block Dutch test

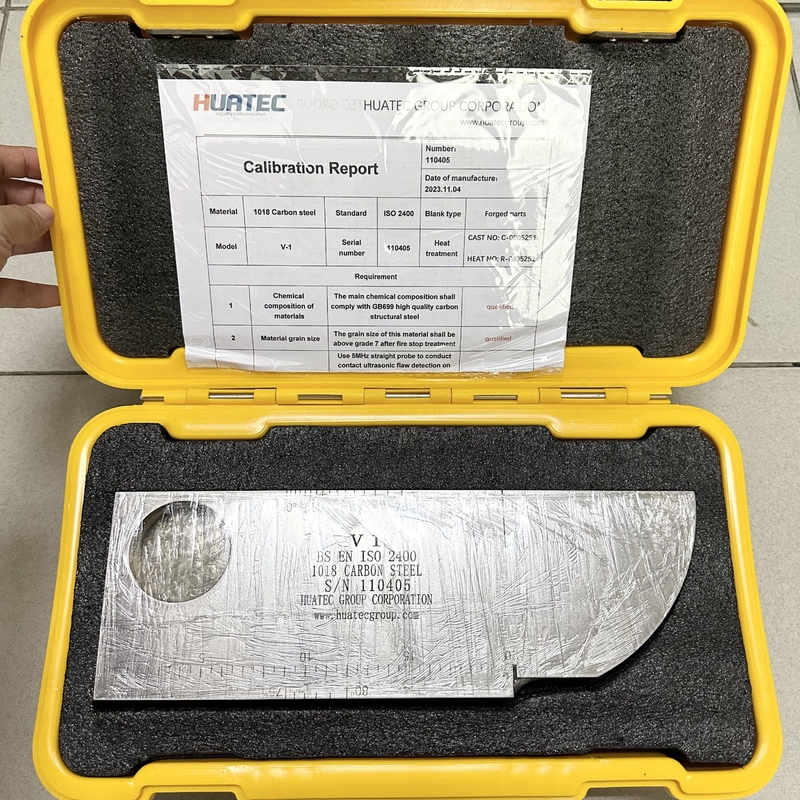

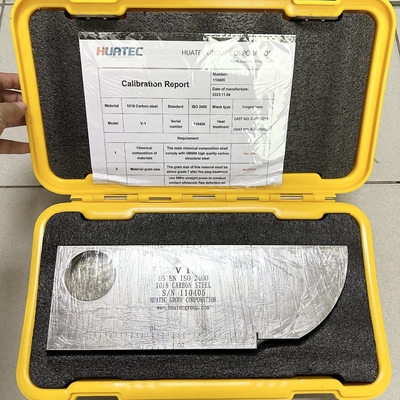

Large Image : carbon steel IIW V1 Calibration Block Dutch test

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATEC
Model Number:	IIW V1

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	USD
Packaging Details:	Carton
Delivery Time:	5-8 working days
Payment Terms:	T/T, Western Union
Supply Ability:	500PCS

Contact Now

carbon steel IIW V1 Calibration Block Dutch test

Description

Material:

Carbon Steel 1018

Standard:

ISO2400-1972E

Dimensions:

25.0 Mm X 100.0 Mm X 300.0 Mm

Warranty:

12 Months

Highlight:

carbon steel iiw v1 calibration block

carbon steel iiw v1 block

Dutch test iiw v1 calibration block

IIW V1 calibration block

Standard: ISO2400-1972E

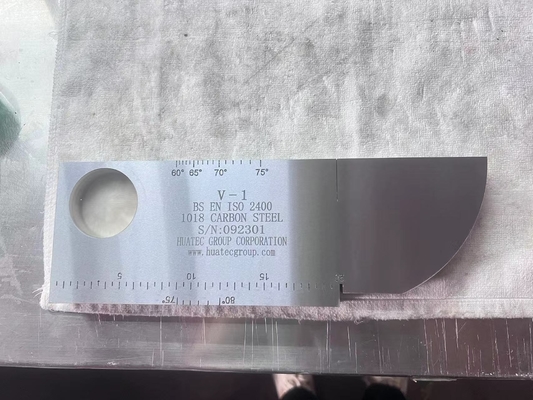

IIW test block (V-1 test block) is also called Dutch test block. It is an international standard test block approved by the International Welding Institute (IIW) and recommended by the International Organization for Standardization (ISO). The shape and size are shown in Figure 1-1:

Block Type	Standard	Specification	Material
IIW-Type 1 Test Block	ISO2400-1972E ASTM E164 EN 1223	Metric Dimensions :25.0 mm x 100.0 mm x 300.0 mm 100.0 mm radius, 3 mm diameter hole, 6.0 mm deep x 2.0 mm wide slot. 25.0 mm radiussed slot x 1.5 mm deep x 3.0 mm wide. Inch Dimensions: 1.0" x 4.0" x 12.0" 4.0" radius, 2.0" and 0.060" diameter hole, 0.240" deep x 0.080" wide slot 1.0" radiussed slot x 0.060" deep x 0.120" wide	1018 Steel
			304/316 Stainless Steel
			7075-T6 Aluminum
			Duplex stainless steel 2205

Test Report
HUATEC strictly guarantees product quality, and promises to provide a corresponding test report for each test block sold, which records the test block specifications, materials, and test standards. If you have special requirements for the test report, please contact us.

carbon steel IIW V1 Calibration Block Dutch test 0
