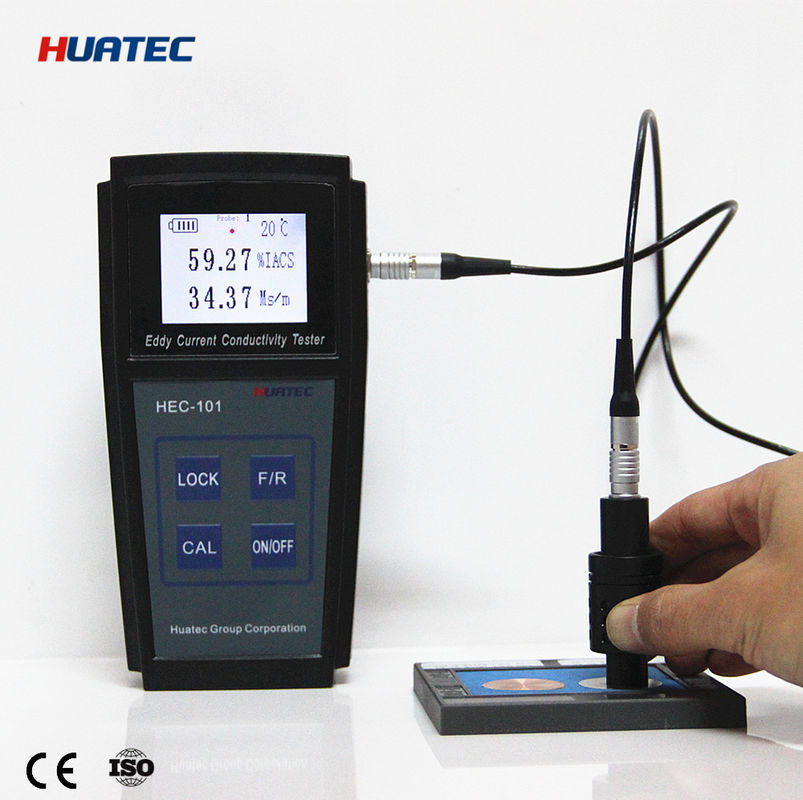

HEC-101 Digital Portable Eddy Current Electrical Conductivity Meter

HEC-101 Digital Portable Eddy Current Electrical Conductivity Meter
HEC-101 Digital Portable Eddy Current Electrical Conductivity Meter HEC-101 Digital Portable Eddy Current Electrical Conductivity Meter

Large Image :  HEC-101 Digital Portable Eddy Current Electrical Conductivity Meter

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: HEC-101
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD2245/set - USD2535/set
Packaging Details: Carton packing box
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Paypal
Supply Ability: 10sets/Month

HEC-101 Digital Portable Eddy Current Electrical Conductivity Meter

Description
Operating Frequency: 60KHz Display Screen: 240X320 Pixels TFT-LCD
Measuring Range: 6.9%IACS-110%IACS(4.0MS/m-64MS/m) Distinguishing Rate: 0.1% IACS
Probe Compensated: 0.1mm Measuring Accuracy: 0°C To 45°C ± 0.1%IACS~ 0.3%IACS
Temperature Compensation: Automatic Compensation To The Value Of 20 ℃.
Highlight:

Portable Eddy Current Electrical Conductivity Meter

,

Digital Eddy Current Electrical Conductivity Meter

HEC-101 Digital Portable Eddy Current Electrical Conductivity Meter



HEC-100 series of eddy current electrical conductivity meters, which are designed for quick & convenient measurement of material property, such as material separate, quality control, material state check and so on. The products use the electromagnetism testing principle, can testing objects focus on non-ferromagnetic materials.



HEC-100 series products use 60 KHz (aviation industry standard) to inspirit, the testing data can be read in two kinds of unit (%IACS and MS/m). The products can test electrical conductivity and resistivity at the same time, and they include the intelligent temperature and lift-off compensations, thus can guarantee the testing accuracy of each measurement. The big typeface and the back light illumination designs are advantageous for users to take the testing data even in low light condition. The products use the high property battery to make sure it keeps more running time, and because of their mini-size, you could easy to carry and to grasp hold. The design of the products are more advantages, such as users can replace the probe in the outdoor, don’t need to return the company to adjust the probe into matching the meter. About HEC-100, two kinds of operate languages (English &Chinese) satisfy different national demand. It can store 1000 measurement data, moreover, users can use USB connect the meter to a PC to create testing report.



Technical parameters

Measurement technology Eddy current
Operating frequency 60KHz
Display screen 240X320 pixels TFT-LCD
L*B*H 180*90*40 mm
Instrument case Anti-intense impact, water-proofing polyester; Toolbox.
Weight 300g
conductivity standard block Verify and guarantee temperature compensation.
Measuring range 6.9%IACS-110%IACS(4.0MS/m-64MS/m)
Distinguishing rate 0.1% IACS
Probe compensated 0.1mm
Measuring accuracy

0°C to 45°C

± 0.1%IACS~ 0.3%IACS

Temperature compensation Automatic compensation to the value of 20 ℃.
Normal work environment Relative humidity 0~95%
Operating temperature 0℃~50℃
Data storage Can store 1000 measurement data.
HEC-101 Digital Portable Eddy Current Electrical Conductivity Meter 0Probe

Diameter: 12mm

Applicable to minimum measuring area diameter at 60KHz is12mm.



Application:

1. Absolute measurement of electrical conductivity of nearly all non-ferrous metals;(Ti – Ag)

2. In the aerospace and automotive industry, monitor the process of heat treatment, the strength and hardness of aluminum alloy;

3. Test the conductivity whenthe aluminum have not been oxidized;

4. Measurement the purity of non-ferrous metals;

5. Test the resistivity ofconductivematerials;

6. Analyze thermal properties ofmaterials.

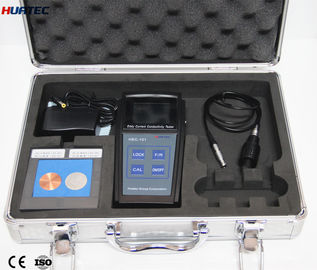

Standard delivery

Main unit 1 Carrying case 1
Probe 12mm 1 Manual 1
Probe cable 1 Cleaning cloth 1
Calibration block AI&Cu 1
Probe sheath 1



Optional accessories

Probe dia.12mm

Probe dia.8mm

Calibration block

Probe cable

HEC-101 Digital Portable Eddy Current Electrical Conductivity Meter 1HEC-101 Digital Portable Eddy Current Electrical Conductivity Meter 2HEC-101 Digital Portable Eddy Current Electrical Conductivity Meter 3HEC-101 Digital Portable Eddy Current Electrical Conductivity Meter 4
