350Kv Portable X-ray Radiography Flaw Detector For Portable Oil And Gas Pipeline Leakage Detection

Large Image : 350Kv Portable X-ray Radiography Flaw Detector For Portable Oil And Gas Pipeline Leakage Detection

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATEC
Certification:	ISO
Model Number:	XXG-3505

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Wooden
Delivery Time:	5-8 working days
Payment Terms:	T/T, Western Union
Supply Ability:	500PCS

Contact Now

350Kv Portable X-ray Radiography Flaw Detector For Portable Oil And Gas Pipeline Leakage Detection

Description

Product Name:

350KV Directional X-ray Flaw Detector

Application:

Oil Pipe Chemical Pipe Gas Pipe Welding Inspection Equipment

Max. Penetration:

60mm

Output Current:

5mA

Highlight:

Portable X-ray Radiography Flaw Detector

350Kv X-ray Radiography Flaw Detector

350Kv Portable X-ray Radiography Flaw Detector For Portable Oil And Gas Pipeline Leakage Detection

◆Adopting micro-computer control and modular structure, with strong anti-interference ability and high automaticity and reliable performance.

◆Parameter setting, working process and trouble indication will be indicated on the LED screen.

◆Independent aging key is designed for aging the machine conveniently.

TYPE ITEM			XXG3505
Max Penetration thickness Steel (A3)			60mm
Focal Distance			600mm
Exposure Time			5min
Film Type			Agfa D7
Double lead foil Intensifying screen			0.03
Darkroom Disposal			20±2℃
Development			5minutes
Blackness			1.5
Input	Voltage (V)		220V±10% 50―60Hz
	Capacity (KVA)		3.5
Output	Tube voltage (KVP)		200-350Kv
	Tube current (mA)		5
	Stability		±1%
X-RAY Tube	Focus mm²		2.5×2.5
	Radiation Angle		40±5°
Sensitivity			k≤1.8%
Operation Mode			Intermittent operation, Radiating time to cooling time is 1:1
X-Ray Controller		Dimension	350×290×160
		Weight	11kg
		Circuit Structure	Micro-computer control ,Modular structure,Voice prompt
X-RAY Generator		Cooling	Force air cooling
		Insulation	SF6 Gas Insulation
		Working Pressure	0.35Mpa-0.45Mpa
		Dimension	335×335×700
		Weight (kg)	43kg
Working Temperature			-10℃―+40℃

◆Match with various generator and function reliably.

◆Number of exposure can be accumulated.

◆With the outlet of ray warning lamp and wire connecting terminal of door-machine interlock.

(Door-machine interlock—when the lead door opens, the instrument cut off the high voltage automatically to protect the operator)

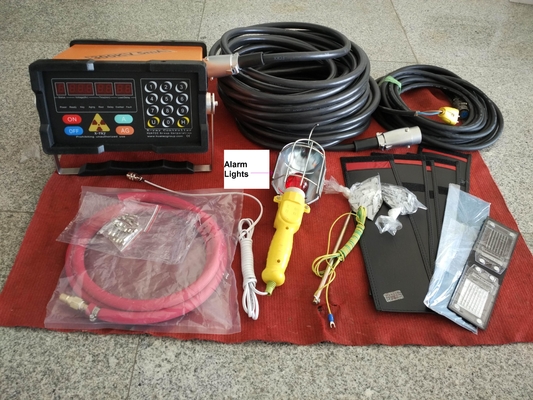

350Kv Portable X-ray Radiography Flaw Detector For Portable Oil And Gas Pipeline Leakage Detection 0

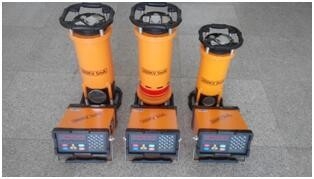

350Kv Portable X-ray Radiography Flaw Detector For Portable Oil And Gas Pipeline Leakage Detection 1
