High Quality Digital Ultrasonic Flaw Detector FD350

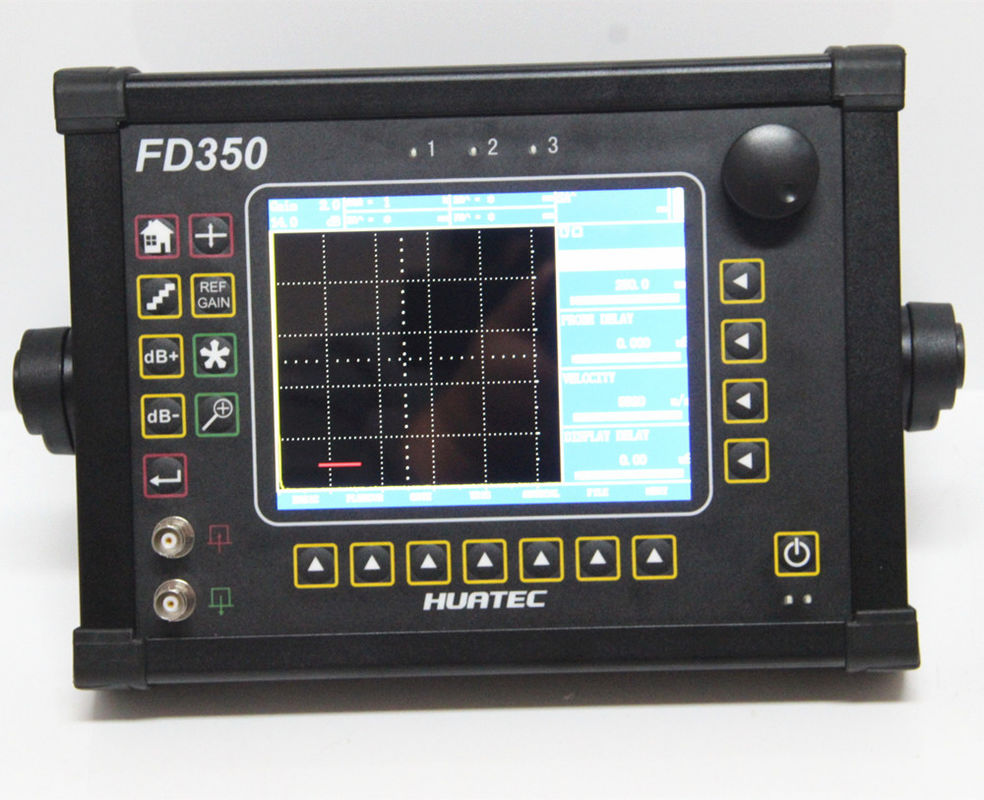

Large Image : High Quality Digital Ultrasonic Flaw Detector FD350

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATEC
Certification:	ISO
Model Number:	FD350

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Carton
Delivery Time:	5-8 working days
Payment Terms:	T/T, Western Union/Paypal
Supply Ability:	500PCS

Contact Now

High Quality Digital Ultrasonic Flaw Detector FD350

Description

Product Name:

Ultrasonic Flaw Detector

Application:

Metal Materials

Usage:

Non-destructive Testing

Warranty:

12 Months

Highlight:

Digital ultrasonic flaw detector

High quality Digital ultrasonic flaw detector

High quality ultrasonic flaw detector

High quality Digital ultrasonic flaw detector FD350

Automated calibration Automated gain.

AWS D1.1, DAC/TCG, JIS DAC/TCG, AVG,DGS, A scan & B scan.

FUNCTIONS	PARAMETERS
Frequency	0.2 – 20 MHz
Detection range	0 - 10000 mm
Sound velocity	100 – 20000 m/s
Working methods	Pulse echo, dual, and thru-transmission
Pulse Shift	-5 to 3400 μs in steel (dependent on range)
Zero point of the probe	0 – 100 μs
Gain adjustment	(0-110) dB, Step:0.2, 0.5, 1.0, 2.0, 6.0, 12.0, user definable(0-24), and locked
Vertical linear error	≤3%
Horizontal linear error	≤0.1%
Dynamic range	≥40dB
Sensitivity surplus	≥60dB (200mmdepth , Ф2 flat- bottomed hole )
Communications	Connect with computer through RS232 or USB
The average electric yawp	≤20%
Color TFT LCD	5.25”x 3.875” (133 x 98 mm), 640 x 480 pixels VGA, color
Gate alarm	Wave-entering gate / wave-losing gate sound alarm, width, height, location, continuous-tuning
Time of battery working	7 hours
Temperature of working	-10°C-60°C
Power	220VAC, 110VDC
Appearance size	11.9”W x 9.9” H x 2” D (302 x 251 x 51 mm)
Net weight	5.5 lbs. (2.5 kg) Li-Ion Battery; 4.8 lbs. (2.2 kg) without battery

High Quality Digital Ultrasonic Flaw Detector FD350 0
