Product Details:
|
| Customized Support: | OEM | Colour: | Yellow |
|---|---|---|---|
| Tube Voltage: | 5mA | Warranty: | 12 Months |
| Highlight: | Directional X-Ray Flaw Detector,250kv X-Ray Flaw Detector,Portable X-Ray Flaw Detector |
||

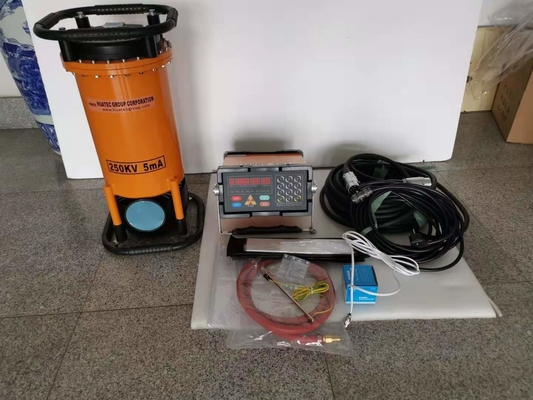

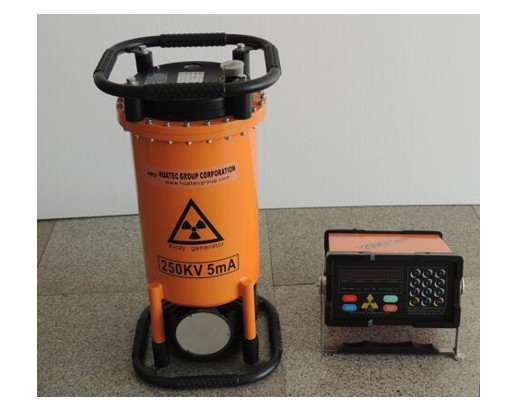

250kv Directional Ceramic Portable X-Ray Flaw Detector
◆Adopting micro-computer control and modular structure, with strong anti-interference ability and high automaticity and reliable performance.
◆Parameter setting, working process and trouble indication will be indicated on the LED screen.
◆Independent aging key is designed for aging the machine conveniently
|
TYPE ITEM |
XXG2505 | ||
| Max Penetration thickness Steel (A3) | 40mm | ||
| Focal Distance | 600mm | ||
| Exposure Time | 5min | ||
| Film Type | HUATEC D7 | ||
| Double lead foil Intensifying screen | 0.03 | ||
| Darkroom Disposal | 20±2℃ | ||
| Development | 5minutes | ||
| Blackness | 1.5 | ||
| Input | Voltage (V) | 220V±10% | |
| Capacity (KVA) | 2.0 | ||
| Output | Tube voltage (KVP) | 100~250kv | |
| Tube current (mA) | 5 | ||
| Stability | ±1% | ||
|
X-RAY Tube |
Focus mm2 | 2.0×2.0 | |
| Radiation Angle | 40±5° | ||
| Sensitivity | k≤1.8% | ||
| Operation Mode | Intermittent operation, Radiating time to cooling time is 1:1 | ||
|
X-Ray Controller |
Dimension | 270×270×140 | |
| Weight | 9kg | ||
| Circuit Structure | Micro-computer control ,Modular structure,Voice prompt | ||
|
X-RAY Generator |
Cooling | Force air cooling | |
| Insulation | SF6 Gas Insulation | ||
| Working Pressure | 0.35Mpa-0.45Mpa | ||
| Dimension | 270×270×615 | ||
| Weight (kg) | 21kg | ||
| Working Temperature | -20˚C~ +50˚C | ||
◆Independent aging key is designed for aging the machine conveniently.
◆Radiating time to cooling time is 1:1.
◆The controller can recognize the type of x-ray generator automatically.
◆The water and dust proof color panel and digital sound keyboard are introduced that exposure parameters are promptly and accurately selected.
◆Ensure safety using the instrument, it is installed with overvoltage, under voltage,
over current, under current and over temperature protection device.
◆A unique safety lock is designed that protect the operator from the damage of radiation.
◆Adopting the wider range of KV value, and solve the difficulty problem of short radiographic range.
◆Exposure delay function ------the delay time can be set less than 10 minutes to keep the operator safe from working place.
◆Match with various generator and function reliably.
◆Number of exposure can be accumulated.
(After the unit has been ready, but before press the "ON" key, you can press the "A" key (delay key) three times to check the number of exposure, and press any key to return back.)
