1613HSA-BG X-ray Flat Panel Detector High Energy Detection To 15MV

1613HSA-BG X-ray Flat Panel Detector High Energy Detection To 15MV
1613HSA-BG X-ray Flat Panel Detector High Energy Detection To 15MV 1613HSA-BG X-ray Flat Panel Detector High Energy Detection To 15MV

Large Image :  1613HSA-BG X-ray Flat Panel Detector High Energy Detection To 15MV

Product Details:
Place of Origin: China
Brand Name: Huatec
Certification: ISO,CE
Model Number: 1613HSA-BG
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: in high quality carton
Delivery Time: 8~15 days after payment
Payment Terms: L/C, T/T, Western Union
Contact Now

1613HSA-BG X-ray Flat Panel Detector High Energy Detection To 15MV

Description
Product Name: X-ray Flat Panel Detector Model: 1613HSA-BG
Sensor Receptor Type: A-Si Scintillator: CsI:TI/GOS
Active Area: 128x160 Mm Resolution: 1024x1280
Highlight:

X-ray Flat Panel Detector

,

15MV X-ray Flat Panel Detector

1613HSA-BG X-ray Flat Panel Detector High Energy Detection To 15MV

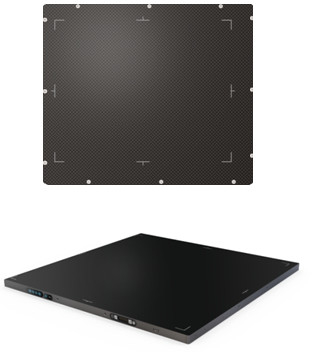

1613HSA-BGIt is a flat panel detector based on amorphous silicon sensors, lightweight and small, suitable for high energy detection up to 15MV.



Sensor

Receptor Type a-Si
Scintillator CsI:TI/GOS
Active Area 128x160 mm
Resolution 1024x1280
Pixel Pitch 125 μm



Power Supply & Battery

Adapter In AC 100-240V,50-60Hz
Adapter Out DC 24V,2.7A
Power Dissipation <16 W



Enviromental

Temperature 10-35°C (operating)；-10~50°C (storage)
Humidity 30-70% RH (non-condensing)



Image Quality

Limiting Resolution 4.0 LP/mm
Energy Range

40-160KV / 40-15MV(OEM)

Electricals and interface



Electricals and interface

A/D Conversion 16 bits
Data Interface Gigabit Ethernet
Acquire Time wired: 1s
Exposure Control

Software/Outer/AED



Mechanical

Dimension 195×166×14.8 mm
Weight 0.75kg
Material Aluminum and magnesium alloys
Front Panel Carbon fiber

1613HSA-BG X-ray Flat Panel Detector High Energy Detection To 15MV 0
